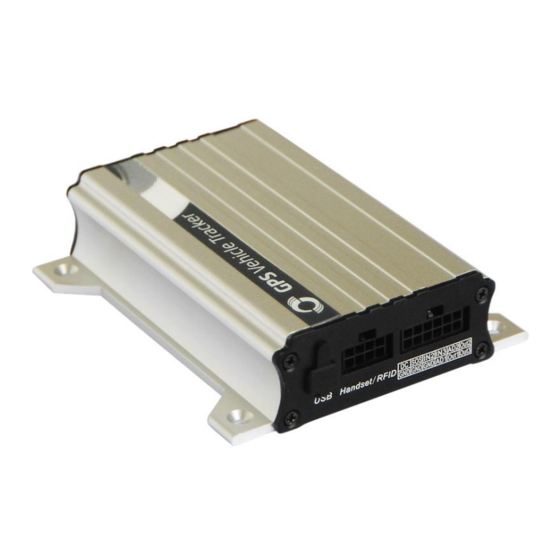

MEITRACK® Vehicle GPS Tracker
Copyright © 2014 Meitrack Group All rights reserved.
File Name:
MEITRACK T1 User Guide
Project:
T1
Sub Project:
User Guide
Revision:
V2.1
Creator:
Creation Date:
Update Date:
Page:
Confidential:
T1
Cavana Cheung
2011-07-18
2014-02-26
- 1 - of 23
External Documentation
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MeiTrack T1
Summary of Contents for MeiTrack T1
- Page 1 Creator: Cavana Cheung Project: Creation Date: 2011-07-18 Update Date: 2014-02-26 Sub Project: User Guide Page: - 1 - of 23 Revision: V2.1 Confidential: External Documentation MEITRACK® Vehicle GPS Tracker Copyright © 2014 Meitrack Group All rights reserved. - 1 -...
-
Page 2: Table Of Contents
Install RFID Reader (RS232 Interface) .................... - 22 - Install Camera (RS232 Interface) ....................- 22 - Install GPS/GSM Antennas ......................- 23 - Mount the T1 unit ......................... - 23 - Copyright © 2014 Meitrack Group All rights reserved. - 2 -... -
Page 3: Copyright And Disclaimer
Meitrack Group (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall Meitrack Group (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation. -
Page 4: Specifications
Vibration sensor (for vibration wakeup )& acceleration sensor(auxiliary judgment of move and standstill) GSM Frequency GSM 850/900/1800/1900MHz GPS Chip Latest GPS SIRF-Star IV chipset GPS Sensitivity -159dB Positioning 10 meters, 2D RMS Accuracy Copyright © 2014 Meitrack Group All rights reserved. - 4 -... -
Page 5: T1 And Accessories
USB Data Cable Battery Antenna Antenna Button Optional Accessories Camera RFID Player(dialing, A53 Fuel Sensor Handset Reader calling, show SMS) Phone A52 Digital Temperature Sensor +A61 LED-Display sensor box Copyright © 2014 Meitrack Group All rights reserved. - 5 -... -
Page 6: View
Make sure the SIM Lock code is turned off; If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the T1, please make sure the SIM installed supports displaying caller ID. -
Page 7: Track By Calling
GSM signal available Flashing (1 second on and 2 seconds off) No GSM signal 6.4 Track by Calling Make a call to T1 and it will report with one SMS. For example, Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329 &ie=UTF8&z=16&iwloc=addr&om=1 Click on the link then the location can be shown directly on Google Maps on your mobile phone. -
Page 8: Multiple Phone Numbers- A71
Send command “0000, A71” to delete all phone numbers. When the SOS button is pressed, T1 will make a call to phone number 1, 2 and 3. It will stop calling when one Copyright © 2014 Meitrack Group All rights reserved. -
Page 9: Listening-In (Voice Monitoring)-A72
Note: In any condition, the device will directly quit the sleep mode and back to normal working mode by SMS or GPRS command to turn off the sleep mode. Example: 0000,A73,2 SMS Get: 353358017784062,A73,OK 6.4.4 Geo-fence Alarm – B05 Command: B05,P,latitude,longitude,radius,in,out SMS Get: IMEI,B05,OK Note: Copyright © 2014 Meitrack Group All rights reserved. - 9 -... -
Page 10: Time Zone- B35
This part mainly shows you how to use the Meitrack Manager. Note: Don’t connect T1 to external battery when configuring. Please refer to the Meitrack Manager User Guide for more information regarding configuration and functions. Before using the Meitrack Manager, please first install USB driver and Meitrack Manager Software. - Page 11 If ‘Prolific USB-to-Serial Comm Port’ cannot be found, you need to re-install the USB driver (for detailed installation instructions, please refer to Meitrack Manager User Guide) Note: Remember this Com number. It needs to be input into the Meitrack Manager. It is COM3 in this example and it would be COM4 or COM5… in your computer.
-
Page 12: Gprs Tracking
V2.1 Confidential: External Documentation Note: Meitrack Manager is in the CD. The language will be automatically adjusted to be the same as your PC operation system’s language. Please use “Ctrl+L” to change the language. 6.5.1 GPRS Tracking Select Column2: Tracking To set GPRS parameters, Select this column to modify. -
Page 13: Geo-Fence Configuration
“Out Alarm”. Map: click “In Map” to make and define geo-fence. For complete software functions, please refer to Meitrack Manager User Guide. 6.5.3 Authorized Phone Number/GPRS Event Select column 4 to set authorized alarm phone number, GPRS event and other functions. For complete software functions, please refer to Meitrack Manager User Guide. -
Page 14: Gprs Log
Before using this function, please first setup GPRS log time interval( to set this option under column 1 ‘Device’ in Meitrack Manager), The terminal device will automatically save the log in the storage chip when there exits GPS signal. Recorded tracking & locating data can be exported under this column. No GPRS signal, no log. -
Page 15: Installation
Output open collector sink voltage (ineffective): 40V max. Output low voltage sink current (effective): 400mA max. 12 Digital Temperature Yellow TTL3.3V level, defaulted to be used to connect A52 digital temperature Copyright © 2014 Meitrack Group All rights reserved. - 15 -... -
Page 16: Power/Gnd (Pin1/Pin2)
7.1.1 Power/GND (PIN1/PIN2) Connect GND (-Black) and Power (+Red) wires to the battery of vehicle. 7.1.2 Digital Input (PIN3/PIN5 Negative Triggering) 7.1.3 Digital Input (PIN7 Positive Triggering) Copyright © 2014 Meitrack Group All rights reserved. - 16 -... -
Page 17: Output (Pin10/Pin11)
Remark: AD4 & AD5 inside the device are defaulted to detect inner battery and external power voltage, not indicated by the analogue input port. ( Please refer to MEITRACK_GPRS Protocol for more details) 7.1.5.2 Application 2 –Analog Fuel Detection (percentage of fuel) Copyright © 2014 Meitrack Group All rights reserved. - 17 -... - Page 18 1. Note: T1 defaults AD2 connect A53 fuel sensor and the program has used the formula to work out the value that...
- Page 19 To connect four temperature sensor probes and one fuel sensor at the same time, just need to connect A53 Fuel Sensor with the OUT port of A61 sensor box, illustrated as the picture below: Copyright © 2014 Meitrack Group All rights reserved. - 19 -...
- Page 20 OUT port of A61 with the IN port of another A61. Both the A61 are connected with corresponding sensors, illustrated as the picture below: Copyright © 2014 Meitrack Group All rights reserved. - 20 -...
-
Page 21: Install Handset Phone (Rs232 Interface)
Confidential: External Documentation Note 1: The white plug of T1 harness is made up of four cables: Power Cable (red), GND(black), AD2(blue), sen (blue). Note2: T1 can connect two A61 sensor boxes at most. The number of A52 temprature sensor probe is subject to demands( min:1, max:8). -
Page 22: Install Rfid Reader (Rs232 Interface)
RX, Camera RS232 TX (T1 RX) White TX, Camera RS232 RX, T1 TX Note: when connecting T1 with camera, the below connecting wire is needed. The 8PIN interface connects to T1, and the 4PIN interface to camera. 4PIN to camera 8PIN to T1 The interface can only be connected to one of the camera, handset and RFID reader. -
Page 23: Install Gps/Gsm Antennas
Note: Do not shield or cover the GPS antenna with any objects containing metal. 7.6 Mount the T1 unit If mounting required, there are 4 screw holes on the T1, 2 along either side that act as fixing points to the vehicle Please do not hesitate to email us at info@meitrack.com...
