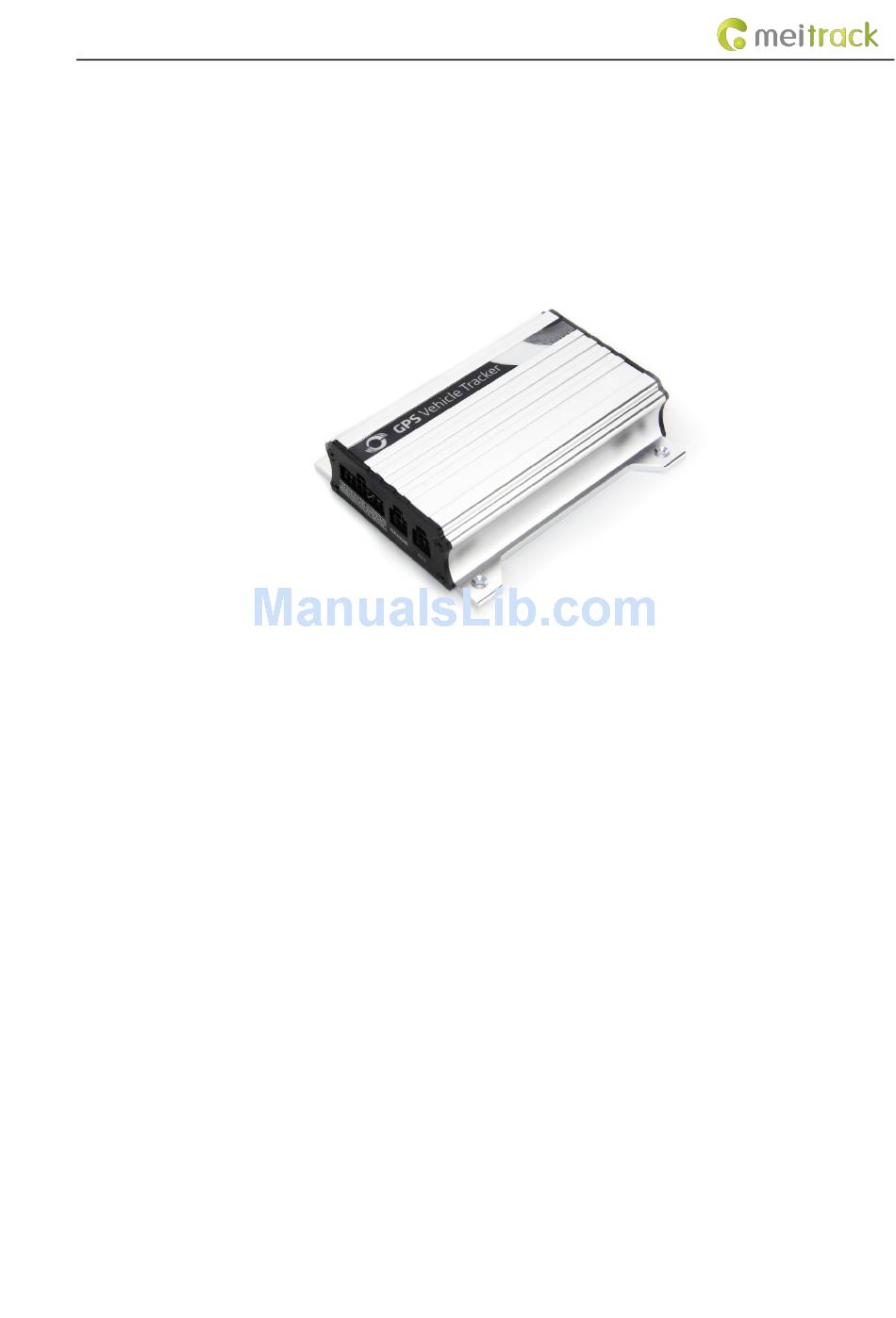

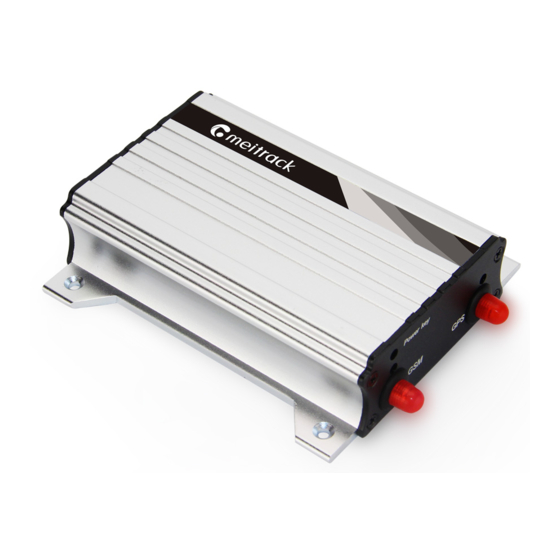

  • Page 1 MEITRACK T622 User Guide MEITRACK T622 User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK T622 User Guide Created By Owen Cheng Creation Date 2015-09-30 Project T622 Update Date 2015-11-27 Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    3.1.3 Other Functions ...............................- 5 - 3.1.4 Functions of Optional Accessories ...........................- 5 - 3.2 Specifications ..................................- 5 - 4 T622 and Accessories ..................................- 6 - 5 Appearance....................................- 7 - 6 First Use ......................................- 7 - 6.1 Installing the SIM Card ................................- 7 - 6.2 Charging ....................................- 8 -...

  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 5: Other Functions

    Green indicator showing the GSM signal LED indicator Blue indicator showing the GPS signal Button/Switch 1 power button Memory 8 MB byte Sensor 3D acceleration sensor (for wake-up by vibration and towing alarms) Copyright © 2015 Meitrack Group All rights reserved. - 5 -...

  • Page 6: T622 And Accessories

    GSM antenna I/O cable USB cable Optional accessories: Camera navigation equipment iButton LLS fuel sensor A53 fuel sensor Garmin A52 digital temperature sensor + A61 sensor box LED display Copyright © 2015 Meitrack Group All rights reserved. - 6 -...

  • Page 7: Appearance

    Ensure that the phone card PIN lock has been closed properly.  Ensure that the SIM card in the T622 has subscribed the caller ID service if you want to use your authorized phone number to call the T622. ...

  • Page 8: Charging

    6.2 Charging When you use the T622 for the first time, connect the T622 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the T622 is charged at least two hours. Eight hours are recommended.

  • Page 9: Tracking By Mobile Phone

    6.5 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the T622 SIM card number. The device will reply an SMS with a map link. Click the SMS link. The location will be displayed on Google Maps on your mobile phone.

  • Page 10: Common Sms Commands

    Phone number 1/2/3: SOS phone numbers. When you call the tracker by using these phone numbers, the tracker will reply an SMS with the location and send geo-fence alarms and low power alarms. If all combined function phone numbers need to be deleted, send 0000,A71. Copyright © 2015 Meitrack Group All rights reserved. - 10 -...

  • Page 11: Setting The Smart Sleep Mode - A73

    The GPS data filtering function can eliminate static drifting, but it will affect the route precision. Example: 0000,D71,1,5,225,8,9 Reply: 353358017784062,D71,OK 6.6.4 Setting Output Triggering – D72 SMS sending: 0000,D72,X,Y1,Y2,Y3,Y4 SMS reply: IMEI,D72,OK Copyright © 2015 Meitrack Group All rights reserved. - 11 -...

  • Page 12: Allocating Gprs Cache And Gps Log Storage Space - D73

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").

  • Page 13: Installing The T622

    View various reports.  Send commands in batches.  Support OTA updates. For details, see the MEITRACK GPS Tracking System MS03 User Guide. 8 Installing the T622 8.1 Installing GPS and GSM Antennas GPS antenna GSM antenna Connect the GSM antenna to the connector which is labeled "GSM". The GSM antenna is non-directional, so you can hide it in any place of a vehicle.
  • Page 14 Note: The DC or AC voltage that is greater than 3.3 V is not allowed. Otherwise, the device may be damaged. 13 (CANH) Orange and white Used to connect a CANBus peripheral. 14 (CANL) Orange Used to connect a CANBus peripheral. Copyright © 2015 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Power Cable/Ground Wire (Pin 1/2)

    OFF-ON. Input 2 is the positive or negative selectable start cable. By default it is positive. Install and configure the cable according to your requirements. Copyright © 2015 Meitrack Group All rights reserved. - 15 -...

  • Page 16: Output Control (Pin 10/11)

    For details, see the Meitrack Temperature Sensor User Guide. Note:  The white plug on the T622 harness consists of the power cable (red), ground wire (black), AD2 cable (blue), and SEN cable (blue).  The T622 can connect to a maximum of two A61 sensor boxes. You can install a maximum of eight A52 temperature sensor ports.

  • Page 17: Garmin Navigation Equipment (Rs232/485 Port)

    The RS232/485 port can be used with either the camera or the LLS fuel sensor at a time. 8.5 Mounting the T622 Tighten the four screws shown in the following figure. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 17 -...
