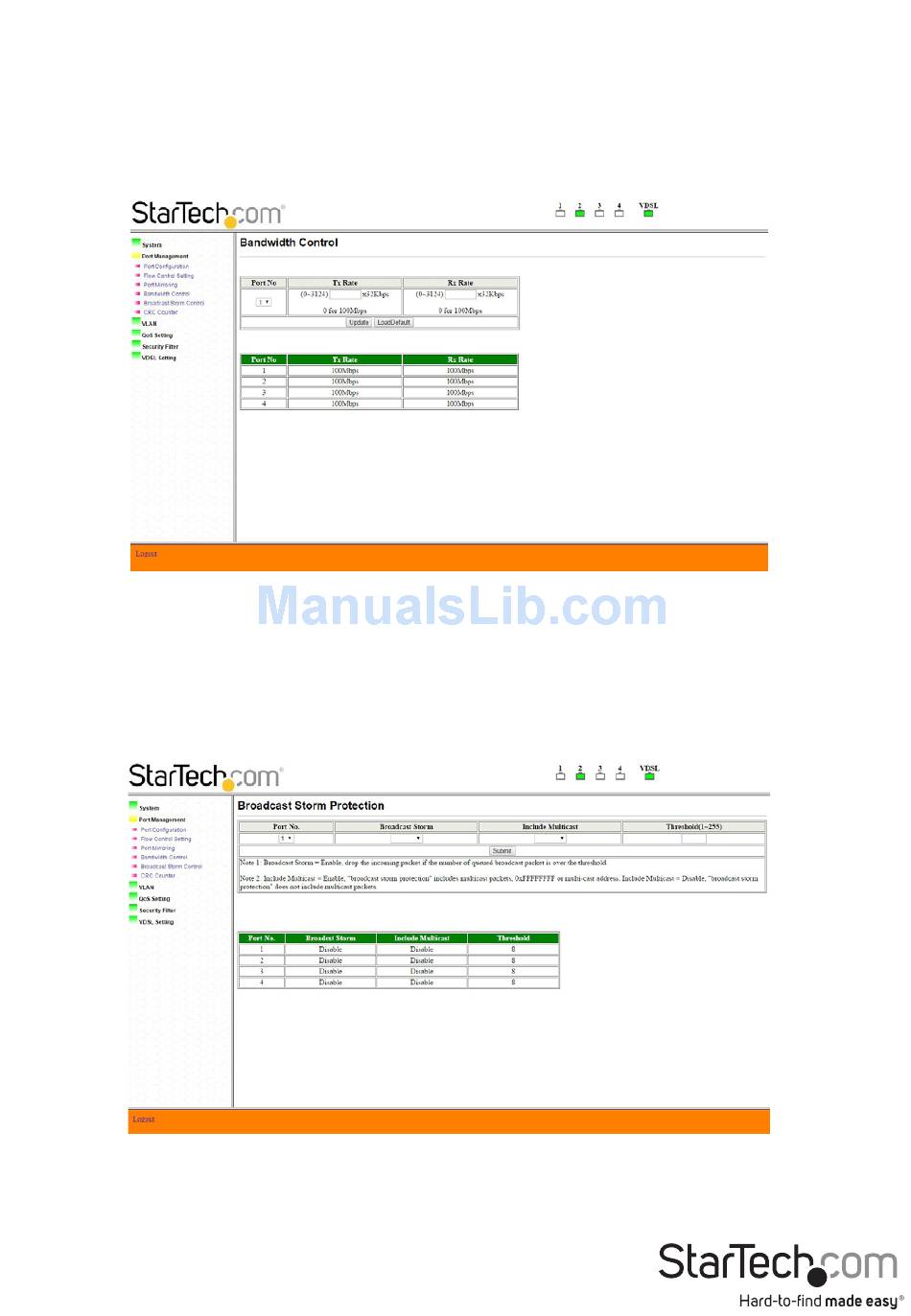

Bandwidth Control
Set bandwidth control on individual ports. Select the port that you wish to control, and
then enter the Tx and Rx rates. Click on the "Update" button to save the settings you've
entered, or click on the "Load Default" button to restore settings to the default value
for the selected port. Once settings are saved, the table will show the current values set
up for each port.
Broadcast Storm Control
This section lets you block excessive broadcast packets. Choose which port you wish
to enable protection. Select Enable for the "Broadcast Storm" option to enable this
function, and enter a value for "Threshold". Broadcast packets will be dropped when
the number is more than entered threshold value.
Instruction Manual
13
