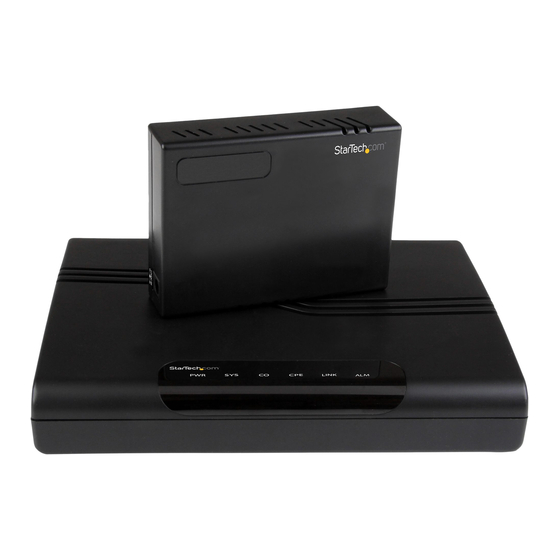

1 Port to 4 Port 10/100Mbps VDSL2 Ethernet Extender
Kit over Single Pair Wire – 1 km
410VDSLEXT2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/18/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 410VDSLEXT2
Summary of Contents for StarTech.com 410VDSLEXT2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/18/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................2 Installation .....................4 Hardware Installation ..........................4 DIP Switch Settings - Transmitter ............5 Configuration ..................7 Web Interface ............................. 7 Welcome Screen ............................7 System ................................8 Port Management ............................. - Page 4 Instruction Manual...
-
Page 5: Introduction
Introduction Packaging Contents • 1x 1 Port VDSL2 Ethernet Transmitter • 1x 4 Port VDSL2 Ethernet Receiver • 2x Universal Power Adapters (NA/UK/EU) • 1x RJ45 to VDSL2 Cable • 1x RJ11 Cables • 1x Instruction CD • 1x Instruction Manual System Requirements •... -
Page 6: Product Overview
Product Overview Front / Side View Transmitter Unit DC Input Receiver Unit LED Indicators Rear View RJ45 Port LED Indicators Switch RJ11/RJ45 VDSL Line Port Transmitter Unit Receiver Unit Reset RJ11 VDSL Line Port DC Input RJ45 Ports Instruction Manual... - Page 7 LED Displays Transmitter Unit LAN LED Display Blinking Activity Link up Link down 100 Mbps 10 Mbps Full duplex Half duplex VDSL LED Display Blinking Device Device Power Off Activity Power On CPE Mode CO Mode Slowly: Idle Linked Offline Quickly: Training Receiver Unit Blinking...
-
Page 8: Installation
Installation Hardware Installation Transmitter Unit 1. Connect the provided power adapter from an AC electrical outlet to the DC Input on the Transmitter Unit. The “PWR” LED should light up solid. 2. Set all four of the DIP switches to the upward (OFF) position. This places the unit in CO mode. -
Page 9: Dip Switch Settings - Transmitter
CO mode (Receiver Unit set to CPE mode by default). When using the 410VDSLEXT2, one end (Transmitter or Receiver) must always be set to “CO” mode, while the opposite end must always be set to “CPE” mode. - Page 10 OFF: If Pin 2 is in the OFF position, the Transmitter Unit will operate in Interleave mode, with communication protection for up to 250ms of impulse noise with latency less than 6 ms ON: If Pin 2 is in the ON position, the Transmitter Unit will operate in Fast mode, with direct data transmissions having less than 1ms of latency.
-
Page 11: Configuration
After you complete the login process, a main page will be shown. There are five square icons at the top-right of the web interface that show the current port status. Management options are shown on the left side of the web interface. Click on each heading to customize your 410VDSLEXT2. Instruction Manual... -
Page 12: System
System Authentication Configuration Change your login name and password in this area. Press the “Update” button to save your changes. System IP Configuration Set your IP configuration settings, including IP address, subnet mask and gateway. System Status Review hardware and software information and update device description in the “Comment”... - Page 13 Load Default Setting Provides two methods to restore the 410VDSLEXT2 to default settings. 1. Reserved IP: Allows you to reload the default factory settings without changing your IP address. 2. All: All settings will be restored to the original default settings, including IP address.
- Page 14 Configuration Backup/ Restore To create a backup of your settings, click the “Download” button and a pop-up will display, letting you choose a location to save a backup file. To recovery a backup, click the “Choose File” button and choose which file to restore from.
-
Page 15: Port Management
Port Management Port Configuration Set port configurations and select which ports to apply these settings to. Select all four ports to apply each port with the same settings. Press the “Submit” button to apply the new settings. All information will be updated in the displayed status table. Flow Control Setting Choose to Enable or Disable “Backpressure”... - Page 16 Port Mirroring Choose to mirror configurations using two settings, click on “Change Mirror Mode” button to change your mirror setup style. In order to use the port mirroring function, you will need the following information: 1. Mirror Port: Select a mirror port to monitor the traffic source. 2.
- Page 17 Bandwidth Control Set bandwidth control on individual ports. Select the port that you wish to control, and then enter the Tx and Rx rates. Click on the “Update” button to save the settings you’ve entered, or click on the “Load Default” button to restore settings to the default value for the selected port.
-
Page 18: Vlan
CRC Counter Displays the number of CRC errors while the 410VDSLEXT2 is active. Click the “Clear” button to reset the counter and the “Refresh” button to update the latest counter information. VLAN The 410VDSLEXT2 provides two options for VLAN setup. By “Port Base” or by “Tag Base. - Page 19 Tag Base VLAN Select “Tag Base” from the “VLAN Mode” using the “Change Mode” button as need. In Setup Area 1, you can choose the VLAN number, and which port you want to add or remove a tag. In addition, you can check all the VLAN members you wish to have in this VLAN number.
-
Page 20: Qos Setting
QoS Setting Priority Classification Enable QoS function based on the selected priority mode. If you need to start QoS function, please make sure you visit this page first and enable the priority mode you wish to apply; otherwise, the QoS function will not be activated. Queue Scheduling Mode There are two modes in “Queue Scheduling Mode”: 1. - Page 21 Port-Based Priority Two items should be selected in order to set this priority up. 1. Port number: Choose the port number you wish to apply this policy. 2. Queue number: Choose which queue you wish the selected port to belong to. VLAN Tag Priority You can assign VLAN priority and its corresponding queue number in this section.
- Page 22 TOS/DSCP Priority You can assign a queue with a DSCP priority. Click on the “Submit” button and the information will be saved and updated to the table below. Note: In order to allow QoS running TOS/DSCP priority, make sure you change the “Priority Classification”...
-
Page 23: Security Filter
Security Filter MAC ID Filter Five MAC addresses can be stored in the “MAC ID Filter”. Choose which entry number you wish to save the MAC and enter the MAC address in the “MAC Address setting” field, as well as its mode. The below table is then updated to display the MAC address you just saved. -
Page 24: Vdsl Setting
Then set a range of IP addresses by entering the “start” IP address and the “end” IP address. VDSL Setting Port Setting In this section, you can change VDSL port settings. After you change the settings, click the “Submit” button to update the 410VDSLEXT2. Click the “Refresh” button to get the latest status information. Instruction Manual... - Page 25 Premises Equipment) operating modes. Select the Receiver mode, and once selected, click the “Submit” button to save the changes. When using the 410VDSLEXT2, one end (Transmitter or Receiver) must always be set to “CO” mode, while the opposite end must always be set to “CPE” mode.
-
Page 26: Connector Architecture
Connector Architecture Ethernet Ports The RJ45 Ethernet Port interface is an 8-pin modular jack. The table below displays the pinout assignments. Pin Number Assignment (MDI-X) RX+; Receive data + RX-; Receive data - TX+; Transmit data + Not used Not used TX-;... -
Page 27: Resetting Your Device
This will reset all the configurations and you can login to the web interface using the default IP address, ID, and Password. Note: 1. Press the button for 2 seconds: Reboots the 410VDSLEXT2 without resetting any configuration settings. 2. Press the button for 8 seconds: Loads the default factory settings and reboots the 410VDSLEXT2. - Page 28 Instruction Manual...
-
Page 29: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 30 Instruction Manual...
- Page 31 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
