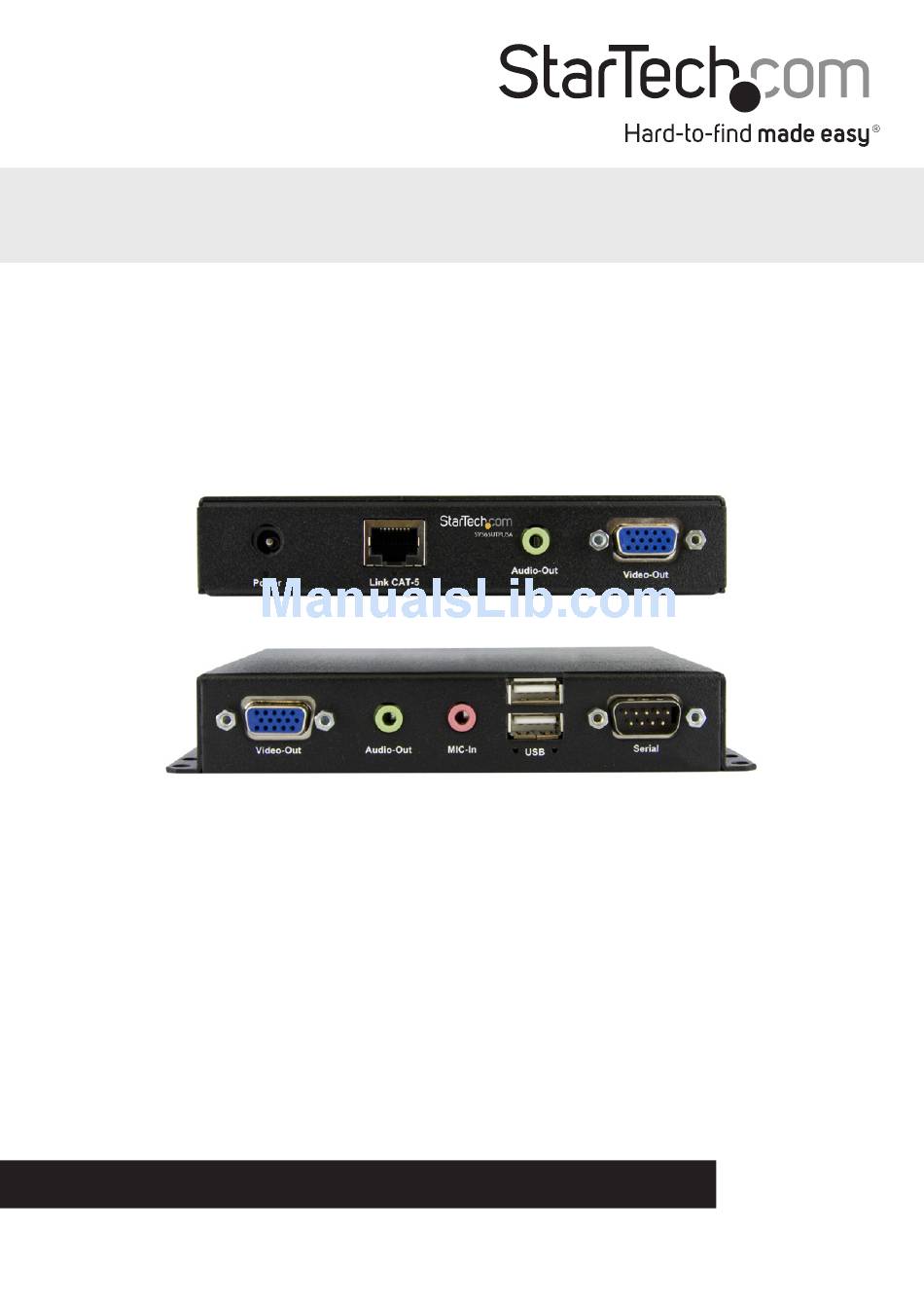

Instruction Manual
USB VGA KVM Console Extender with Serial
& Audio Over Cat5 UTP
SV565UTPUSA
SV565USAGB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/02/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV565UTPUSA
Summary of Contents for StarTech.com SV565UTPUSA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/02/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Front View ..............................2 Rear View ..............................3 Hardware Installation ..........................4 Driver Installation ............................4 Configuration ..................5 Serial Data Link ............................5 Automatic Calibration Button and Light ..................5 Manual Calibration and Settings Menu .................... -
Page 4: Introduction
Introduction The SV565UTPUSA USB VGA KVM Console Extender w/ Serial & Audio over Cat5 UTP (1000 ft) lets you control a server, workstation or multiple computers (connected through a KVM Switch) over standard Cat5 or Cat6 UTP Ethernet cable, at distances of up to 1000ft (333m) over a secure remote connection to a locked (secure) server. -
Page 5: Installation

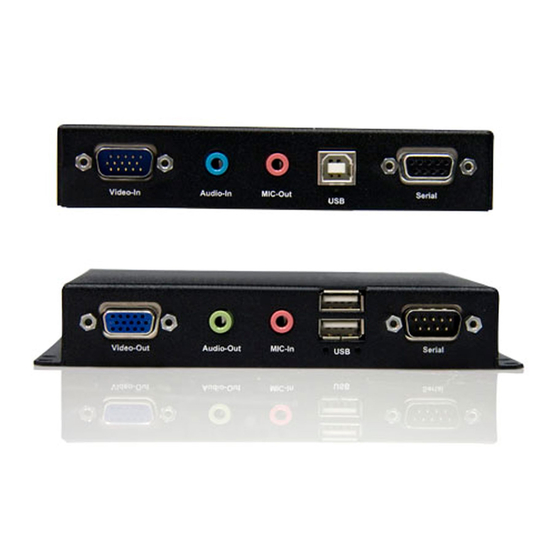

Installation Front View Transmitter Unit 1. DE-15 VGA In (male) 2. 3.5mm mini-jack audio In 3. 3.5mm mini-jack microphone Out 4. USB type B host connector 5. DB9 RS-232 serial (female) Receiver Unit 1. DE-15 VGA Out (female) 2. 3.5mm mini-jack audio Out 3. -
Page 6: Rear View
Rear View Transmitter Unit 1. DC Power connector 2. RJ45 Link connector 3. 3.5mm mini-jack Audio Out 4. DE-15 VGA Out (female) Receiver Unit 1. DC Power connector 2. Setup button 3. RJ45 Link Out connector 4. RJ45 Link In connector Instruction Manual... -
Page 7: Hardware Installation
Hardware Installation Transmitter Unit 1. Connect the included USB cable between the computer/KVM and the USB port on the Transmitter Unit. This also provides power to the Transmitter Unit. Optional: A 5V DC power adapter can be used for backup or if not using the USB cable. -
Page 8: Configuration
Transmitter Unit or a null modem cable for Receiver Unit. For computers that don’t have a serial port built in, the StarTech.com ICUSB232 can be used. You can use any terminal communication software to connect to the serial port, such as minicom for UNIX, and HyperTerminal or TeraTerm for Windows. -
Page 9: Commands
times because it depends on timing. To exit the menu press X to return to data transfer mode. Commands are case sensitive. The Transmitter Unit is able to access all of the Receiver units attached to it, allowing changes to be made from a central location. Also the Transmitter Unit can change which Receiver Unit has the serial link enabled. -
Page 10: Image Quality
blurriness and streaking artifacts, then it is set too low. Increase it gradually until it becomes sharp and free of streaking. If it is too high then there will be problems with color patterns and noise appearing due to the high frequency components of the signal. -
Page 11: Troubleshooting
Afterwards the key will need to be re-formatted to return to normal use. To upgrade all the Receiver units and the Transmitter Unit, plug the USB key into the first Receiver Unit of the chain. If it is plugged into another Receiver Unit it will only upgrade itself. - Page 12 • Make sure serial port on PC is functioning and set up properly • Make sure the right type of serial cable is used: straight-through for the Transmitter unit (StarTech.com ID: MXT100), and null-modem for the Receiver Unit (StarTech.com ID: SCNM9FF) •...
-
Page 13: Specifications
Specifications 1 x DE-15 VGA female 1 x DE-15 VGA male 1 x DB9 serial female Connectors (Transmitter Unit) 1 x USB type B female 3 x 3.5mm Audio mini-jack 1 x RJ45 Ethernet female 1 x DE-15 VGA female 1 x DB9 serial male Connectors (Receiver Unit) 2 x USB type A female... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
