OFF: If Pin 2 is in the OFF position, the Transmitter Unit will operate in Interleave mode,
with communication protection for up to 250ms of impulse noise with latency less
than 6 ms
ON: If Pin 2 is in the ON position, the Transmitter Unit will operate in Fast mode, with
direct data transmissions having less than 1ms of latency.

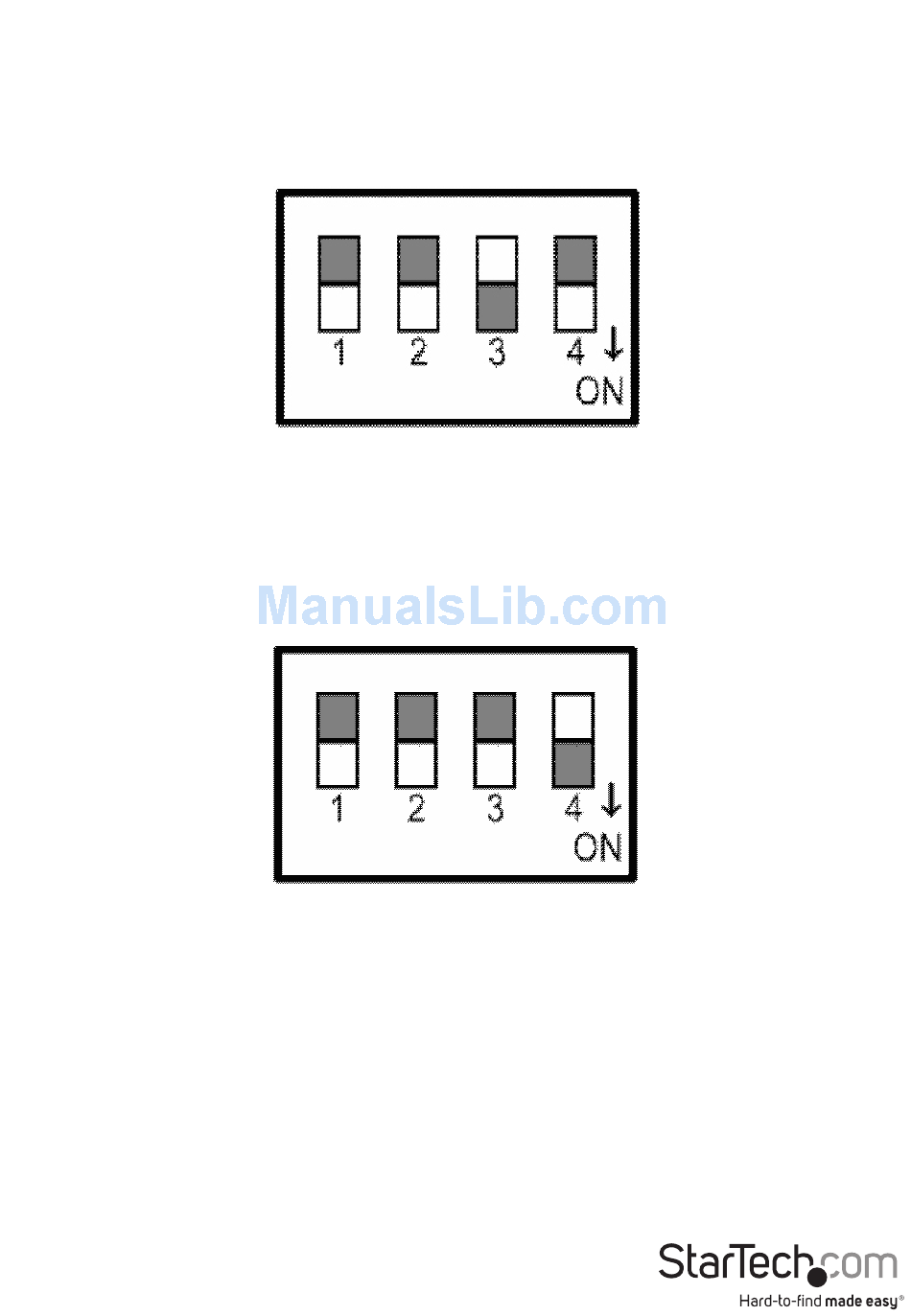

Pin 3 - Band Plan
OFF: If Pin 3 is in the OFF position, the Transmitter Unit will operate in Symmetric
mode, with both downstream and upstream transmissions operating on the G.997
band plan.
ON: If Pin 3 is in the ON position, the Transmitter Unit will operate in Asymmetric mode,
with asymmetric short range transmissions operating at the highest available line rate.
Pin 4 - General Protection
OFF: If Pin 4 is in the OFF position, the Transmitter Unit will operate with a SNR ratio up
to 9 dB.
ON: If Pin 4 is in the ON position, the Transmitter Unit will operate with a SNR ratio of
6 dB.
