Page 1: User Guide

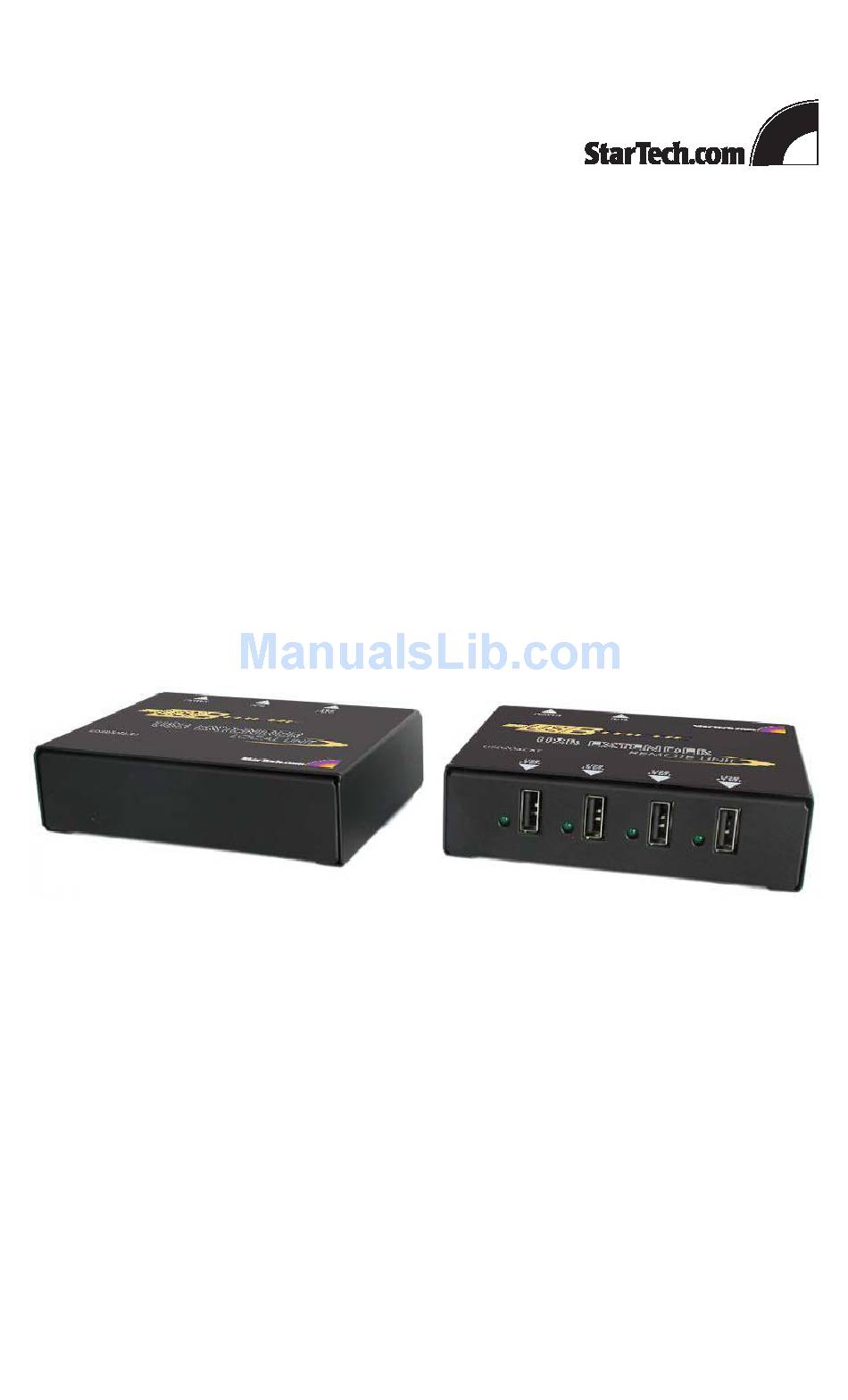

THERE User Guide USB201EXT USB204EXT USB204EXT shown Featuring ExtremeUSB® Technology... - Page 2 CE Statement We, StarTech.com, declare under our sole responsibility that the USBthere, to which this declaration relates, is in conformity with European Standard EN 55022/A1 Class A, and EN 50082-1 (IEC 801-2, IEC 801-3, IEC 801-4) IC Statement This Class A digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
User Guide Contents Introduction... 1 USBthere Product Contents ... 1 About the USBthere ... 2 Before You Begin ... 6 Installing the Local Unit ... 6 Installing the Remote Unit ... 6 Connecting the Local Unit to the Remote Unit... 7 Checking the Installation... - Page 4 USBthere USB201EXT/USB204EXT Notes...
-
Page 5: Introduction
Introduction This manual is intended to assist IT professionals install the USBthere models USB201EXT and USB204EXT. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. : Notes give additional information that could make installation NOTE easier. -
Page 6: About The Usbthere
USB technology beyond the desktop. With the USBthere, USB devices can be located up to 100 meters from the host computer. In addition, the USBthere USB201EXT and USB204EXT can supply power to remote low-power or high-power USB devices. -
Page 7: The Remote Unit
USB cable. Depending on your needs, it also connects to a power outlet through an AC power adapter. The Remote Unit of the USB201EXT lets you connect one USB device. The Remote Unit of the USB204EXT lets you connect up to four USB devices. -
Page 8: Usb Cables
Typical examples include cameras and keyboards with hubs. To determine if a device is high-power or low-power, consult the user documentation for the device. The USBthere USB201EXT and USB204EXT can supply power to both low-power and high-power devices when configured as follows: USB201EXT •... - Page 9 User Guide Compatibility The USBthere complies with USB 1.1 specifications governing the design of full speed USB devices. However, StarTech.com does not guarantee that all full speed USB devices are compatible with the USBthere USB201EXT and USB204EXT.
-
Page 10: Before You Begin
USBthere USB201EXT/USB204EXT Before You Begin Before you can install the USBthere, you need to prepare your site. 1. Determine where the host computer is to be located and set up the computer. 2. Determine where you want to locate the USB device(s). -
Page 11: Connecting The Local Unit To The Remote Unit
Connecting the Local Unit to the Remote Unit : To ensure proper operation, we recommend that only Category 5 or NOTE better, Unshielded Twisted Pair (UTP) cabling be used to connect the Local Unit to the Remote Unit. The UTP cabling must have a straight-through conductor configuration with no crossovers, and must be terminated with 8-conductor RJ45 connectors at both ends. -
Page 12: Connecting A Usb Device
USBthere USB201EXT/USB204EXT Connecting a USB Device 1. Install any software required to operate the USB device(s). Refer to the documentation for the device(s), as required. 2. Connect the USB device to the Device port on the Remote Unit. 3. Check that the Device LED on the Remote Unit is on. -
Page 13: Troubleshooting
The following table provides troubleshooting help. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact StarTech.com technical support for further assistance. Symptoms/Cause All LEDs on the Local Unit and Remote Unit are off. - Page 14 4. Reconnect the Local Unit to the computer. 5. In the Universal Serial Bus controllers section of Device Manager, check that the USBthere is recognised as a “Generic USB Hub”. 6. If the USBthere is not recognised, contact StarTech.com technical support for assistance.
- Page 15 Connect the USBthere to the computer. 5. If the second device does not operate, the USBthere may be malfunctioning. Contact StarTech.com technical support for assistance. 6. If the second device does operate properly, the first device may not be compatible with the USBthere.
-
Page 16: Specifications
2 meters (6.6 ft) 1 x USB Type B 1 x RJ-45 1 x RJ-45 1 x USB Type A (USBthere USB201EXT) 4 x USB Type A (USBthere USB204EXT) 107 mm x 84 mm x 34 mm 4.25” x 3.4” x 1.4”... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product. - Page 18 USBthere USB201EXT/USB204EXT Notes...
