Instruction Manual
4 Port 10/100 VDSL Ethernet Extender
Kit over Single Pair - 1km
410VDSLEXT
410VDSLEXTGB
410VDSLEXTEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/04/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com 410VDSLEXT
Summary of Contents for StarTech.com 410VDSLEXT
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/04/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View....................2 Rear View ....................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................3 Configuration ..................3 Web Interface ............................. 3 Specifications ..................10 Technical Support ..................11 Warranty Information ................11 Instruction Manual... -
Page 4: Introduction

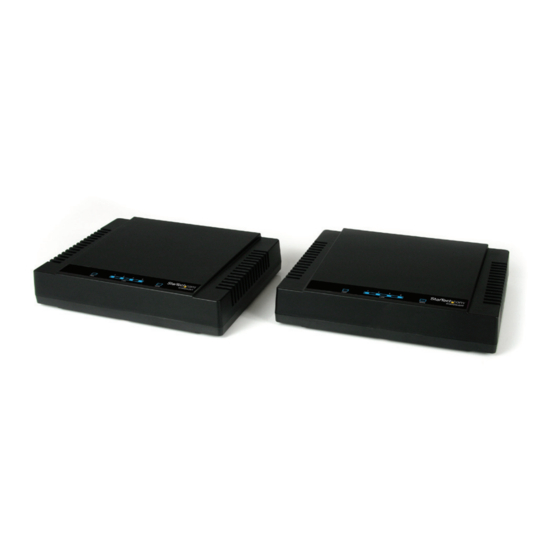

Introduction The 410VDSLEXT 10/100 4-Port VDSL Ethernet Extender Kit lets you span a 10/100 network over single pair wire at distances up to 1km, to multiple users or network segments while maintaining high-speed network connectivity. With the ability to run over new or existing RJ45 cabling, RJ11 phone lines, or any other single pair wire, the 4-port VDSL2 kit provides a simple, out-of-the-box solution that includes both the Ethernet-VDSL extender and receiver units. -
Page 5: Front View
Front View CO Modem CPE Modem 410VDSLEXT VDSL Extender Rear View CO Modem RJ-45 Ethernet DC Power RJ11 Phone CPE Modem Connectors Connector Connector RJ11 Line DB9 Serial Instruction Manual... -
Page 6: Installation
Installation Hardware Installation 1. Place each VDSL Extender unit at their respective end-point locations. Make sure an AC electrical outlet is located nearby. 2. Connect the included power adapters to the pair of VDSL Extender units. The Power LED should light up solid. 3. - Page 7 Setup Wizard (CPE Modem only) The Setup Wizard allows for quick and easy configuration of the most common settings (WAN) for the VDSL Extender. Advanced Menu System This section allows for general configuration/administration of the VDSL Extender unit. Instruction Manual...
- Page 8 Instruction Manual...
- Page 9 This section can configure how the built-in VDSL Modem connects to a DSL Internet Service Provider (ISP) through the “Line” RJ11 connector. The modem supports Dynamic IP, Static IP and PPPoE modes. The LAN section is used to configure the IP address and DHCP server on the RJ45 Ethernet side of the VDSL Extender unit.
- Page 10 This section is used to configure the advanced features on the Ethernet side of the VDSL Extender unit. This include “Virtual Server”, “Port Mapping” and DMZ settings. Instruction Manual...
- Page 11 Firewall This section contains numerous intrusion and access control options. Route Allows for creating static routing paths for data transmission. UPnP Allows for enabling/disabling UPnP support. Instruction Manual...
- Page 12 VDSL2 Allows for manual configuration of the VDSL2 connection. Instruction Manual...
-
Page 13: Specifications
Specifications 2 x RJ11 female 4 x RJ45 Ethernet female External Connectors (per unit) 1 x DB9 female 1 x DC Power 1 x Power LEDs 1 x WAN Link (per unit) 4 x LAN Link/Activity IEEE 802.3, IEEE 802.3u, Supported Standards ITU G.993.2 300 m: 100 Mbps... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
