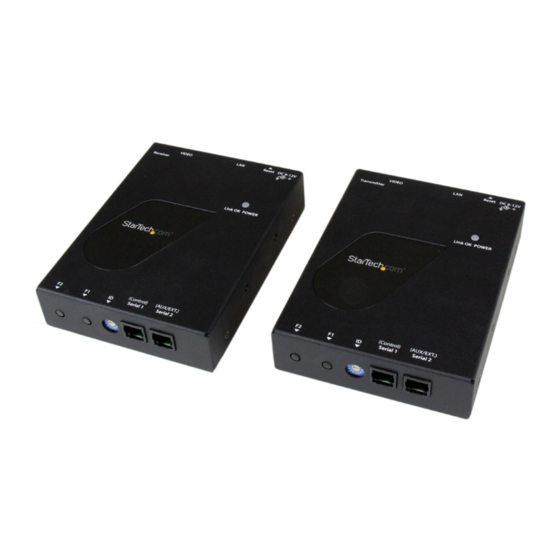

HDMI® Over IP Extender Kit
ST12MHDLAN
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ST12MHDLAN.
Manual Revision: 02/08/2017
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STST12MHDLAN
Summary of Contents for StarTech.com 8STST12MHDLAN
- Page 1 HDMI® Over IP Extender Kit ST12MHDLAN *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/ST12MHDLAN.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................1 Transmitter unit ............................1 Receiver unit ............................... 2 Preparing your site............................ 2 Hardware installation ................3 (Optional) Point to Point installation without Gigabit LAN network........5 Hardware Reset Procedure ........................ -
Page 4: Introduction
Introduction Packaging contents • 2 x universal power adapter (NA/EU/UK/AU) • 1 x HDMI over IP transmitter • 2 x foot pad set • 1 x HDMI over IP receiver • 1 x instruction manual • 2 x mounting brackets System requirements •... -
Page 5: Receiver Unit
5. Video out extending RS232 signal) Note: Serial 1 (Control) Ports are not active. To control the ST12MHDLAN, download the free StarTech.com mobile application. For more information, see page 7 of this manual. Preparing your site Note: The ST12MHDLAN HDMI extender kit can use a Gigabit LAN Network to extend the signal. -
Page 6: Hardware Installation
Hardware installation Video wall or point to multi-point installation with a Gigabit LAN network 1. Install transmitter unit a) Position the Transmitter Unit near the video source (i.e. Computer, Blu-ray Player). b) Connect an HDMI cable from the video source device (i.e. computer, Blu-ray Player) to the “Video In”... - Page 7 2. Connect the other end of the Cat5e/6 cable run to a Gigabit LAN hub, router or switch. Note: Your router must support IGMP snooping. Refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
-
Page 8: (Optional) Point To Point Installation Without Gigabit Lan Network
(Optional) Point to Point installation without Gigabit LAN network Note: While range is reduced to a maximum of 330 feet (100 meters) the ST12MHDLAN HDMI extender kit also allows for extending the signal without a Gigabit LAN Network by connecting the Transmitter directly to the Receiver using CAT5e/6 cabling. -
Page 9: Hardware Reset Procedure
4. Your source video image will now appear on the remote unit(s) attached video display. Hardware Reset Procedure Note: If a video signal does not appear on the display, a hardware reset can be performed on the Transmitter Unit or individual Receiver Units. 1. -
Page 10: Software Installation
Follow the steps to install our software for your specific device. 1. Using the device you intend to install software on, navigate to http://www.StarTech.com/ST12MHDLAN. 2. Under the overview tab, select the link for the store that corresponds with your device. - Page 11 2. Once launched, the application will open on the Devices tab, and will automatically search for transmitters and receivers on your network and list them within the Devices tab. Note: you can re-initiate the device search, by selecting the refresh button in the top right-hand corner of the Devices tab.
- Page 12 3. By default, each video device will have an IP address in the range of 169.254.x.x with a subnet mask of 255.255.0.0. Each transmitter and receiver must have an IP address in the same range, and have an identical subnet mask as each other, and the tablet, smartphone or computer you have the software installed on.
- Page 13 Select DHCP and your network automatically assign an IP address and mask to for the device in the range of the rest of your network devices. Instruction Manual...
-
Page 14: Switching Your Remote Displays Between Video Sources
Note: DHCP must be enabled on your network to automatically assign an IP address and mask in that range. Switching your remote displays between video sources 1. Once the application is launched, select the Switches tab. 2. A list of each connected receiver will be displayed with all available transmitters displayed beside them. - Page 15 Note: if the receiver is part of a video wall it will be indicated with a button that lists the wall configuration and the location of the receiver. Instruction Manual...
-
Page 16: Configuring Your Remote Displays For A Video Wall Application
3. To assign a video source, or change your video source, select the transmitter listed next to your receiver that you’d like to display. 4. The transmitter will turn yellow and your video source will switch on the remote display. Note: If a receiver that was part of a video wall configuration is altered, that display will no longer be part of the video wall configuration. - Page 17 Note: a Wall Name will be listed by default, once you type a new name the default name will be overwritten. 4. The next page in the wizard will create an example of the video wall with the number of rows and columns you specified. You will need to use this example to specify which receivers are represented within your video wall configuration.
- Page 18 Note: If you would like to see the receiver device name on each screen, so you can easily identify which display is connected to each receiver, please select the show device names on screen switch. This can be deactivated once you have identified your displays.
- Page 19 On the bezel compensation window, enter the following measurements in millimeters (mm): screen width of each display (ScreenX), screen height of each display (ScreenY), total width of each display (DisplayX) and total height of each display (DisplayY). Then click the Save button. 6.
-
Page 20: Advanced Operation And Help
Notes: • The display indicators will show the status of the current wall. Blue indicates that the display is active, Grey indicates it is being used for another wall or switch. • You can adjust the settings defined for each video wall configuration or delete your video wall configuration by clicking the arrow next to each video wall. - Page 21 Help: Lists information and walk-throughs regarding operation of the application. Device Search Mode: Enables you to define your preferred method of transmitter and receiver identification over your network that the software uses. You can choose between two methods of identification: Multicast DNS or Target IP for your transmitters and receivers. Multicast DNS: is the default setting and will search automatically for devices over the network.
-
Page 22: Specifications
Specifications Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions 1920 x 1200 (1080p) Wide Screen Supported Audio Specifications Stereo Sound Interface HDMI Cabling Cat 5e UTP or better Audio Rack-Mountable Industry Standards HDMI / HDCP Daisy-Chain Transmitter Connectors 1x HDMI (19 pin) / 1x RJ-45 Receiver Connectors 1x HDMI (19 pin) / 1x RJ-45 Power Adapter Input Voltage... -
