10/100Mbps VDSL2 Ethernet Extender Kit over
Single Pair Wire - 1.5km
110VDSLEXT2 / 110VDSLEX2GB / 110VDSLEX2EU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/07/2015
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 110VDSLEXT2
Summary of Contents for StarTech.com 110VDSLEXT2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/07/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................2 Front View ..............................2 Rear View ..............................2 Side View ..............................2 LED Indicators ..................3 Installation .....................4 Hardware Installation ..........................4 DIP Switch and Mode Settings .............5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1x Ethernet VDSL2 - Transmitter • 1x Ethernet VDSL2 - Receiver • 2x RJ45 Cables • 8x Rubber Feet • 2x Power Adapters • 1x Instruction Manual • 2x Wall mount screws and anchors System Requirements •... -
Page 5: Product Overview

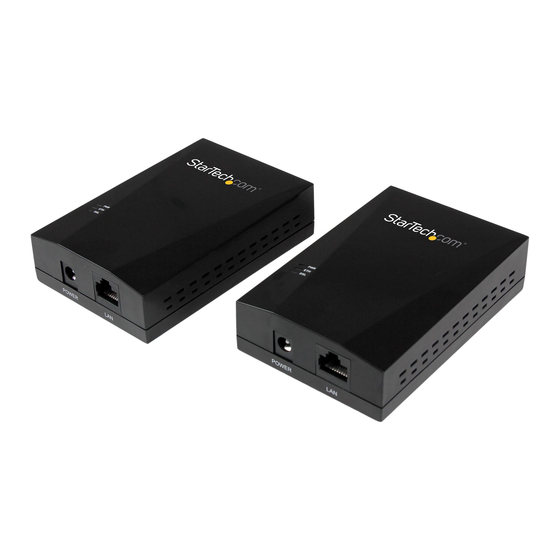

Product Overview The Ethernet Extender Kit consists of x2 Ethernet VDSL2 Transmitter/Receiver units. Either unit can be used at either end of your configuration (transmitting end or receiving end), however the DIP switch settings should be modified according to your specific needs based on direction of traffic. -
Page 6: Led Indicators
LED Indicators ON (Solid) FLASHING (Green) Power Off Power On (Power) No RJ45 Link/Connection Connected Activity (Ethernet) Slow - Establishing Connection DSL (VDSL) No VDSL Link/Connection Connected Fast – Sync / Activity Instruction Manual... -
Page 7: Installation
Installation Hardware Installation One of the Ethernet Extender Kits units should be considered a “Transmitting Unit”, while the other should be considered a “Receiver Unit. ” Transmitter Unit 1. Place one of the units at the local location, this unit will act as the Transmitter Unit. 2. -
Page 8: Dip Switch And Mode Settings
DIP Switch and Mode Settings The Ethernet Extender Kit units have a 4-position DIP switch for configuration of CO/ CPE, Profile, Band, and SNR. By default, all DIP switch settings for both units are set to the downward “OFF” position. DIP1 DIP2 DIP3... - Page 9 position at the transmitting end. Profile Mode Profile Mode is the VDSL2 profile, 17a or 30a, with 30a allowing higher bandwidth at longer distances. Set this DIP switch to the upward (ON) position for 17a, or the downward (OFF) position for 30a, depending on your network requirements and preferences.
-
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
