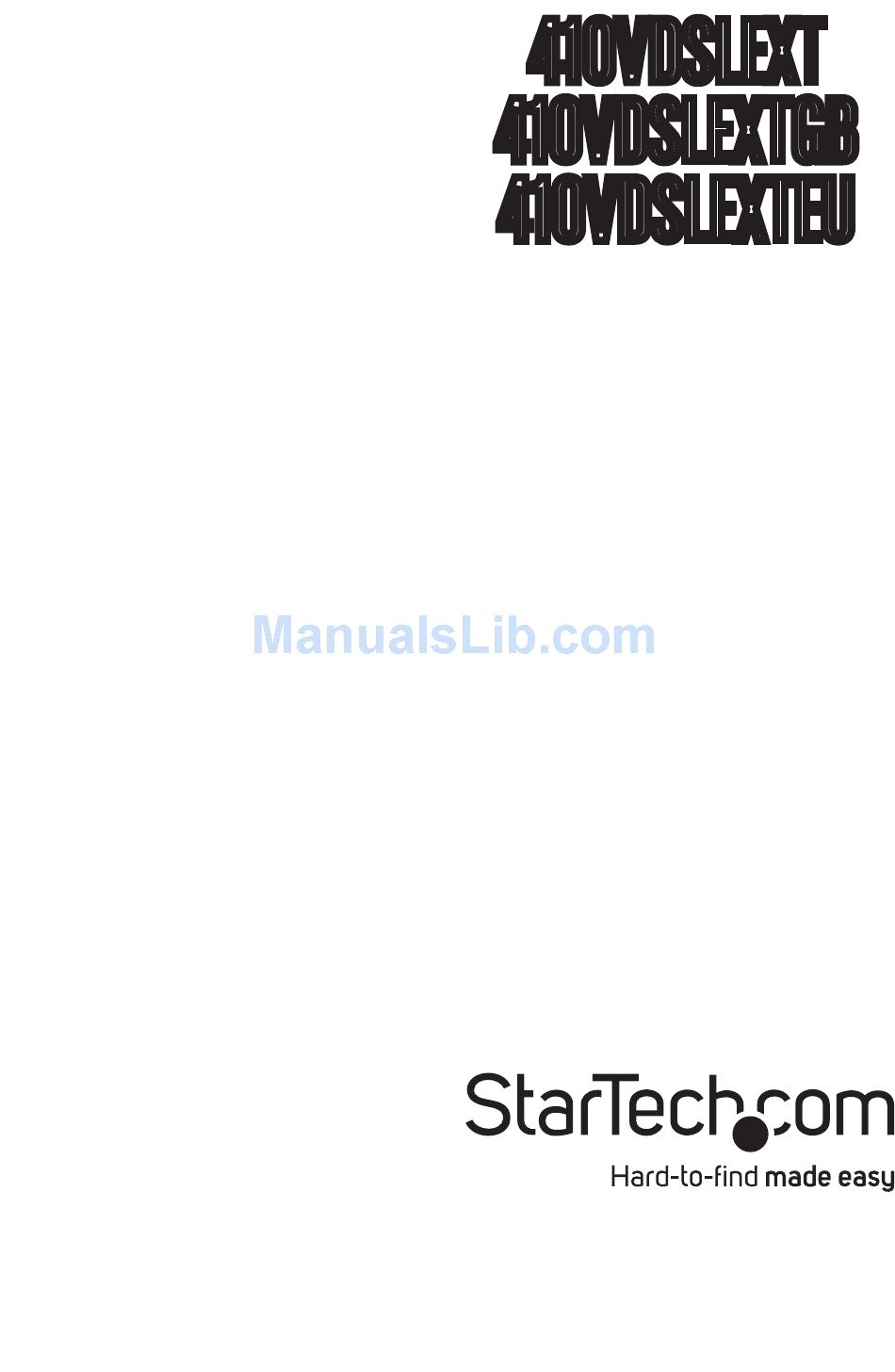

Page 1: Instruction Manual
410VDSLEXT 410VDSLEXTGB 410VDSLEXTEU Instruction Manual VDSL Ethernet LAN Extender 4-Port 10/100Mbps VDSL2 Ethernet Extender Kit over Single Pair Wire Manual Revision:11/29/2010 For the most up-to-date information, please visit www.startech.com... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation ................. 3 Configuration ..............3 Web Interface ................3 Setup Wizard (CPE Modem only) ..........4 Advanced Menu ............... -
Page 4: Introduction

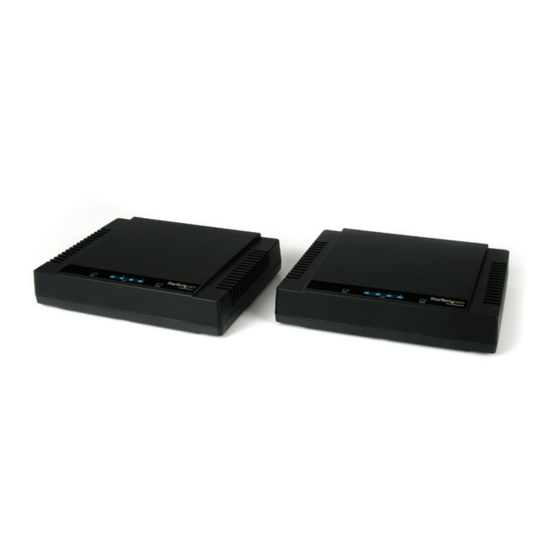

Introduction The 410VDSLEXT 10/100 4 Port VDSL2 Ethernet Extender Kit over Single Pair Wire lets you span a 10/100 network over long distances (up to 1km) to multiple users or network segments while maintaining high-speed network connectivity. With the ability to run the connection over new or existing RJ45 cabling, RJ11 phone lines, or any other type of single pair wire, the 4 port VDSL2 kit provides a simple to install, ready out-of-the-box solution that includes both the Ethernet-VDSL2 extender and receiver units. -
Page 5: Front View
Front View Rear View... -
Page 6: Installation
Installation Hardware Installation 1. Place each VDSL Extender unit at their respective end-point locations. Make sure an AC electrical outlet is located nearby. 2. Connect the included power adapters to the pair of VDSL Extender units. The Power LED should light up solid. 3. -
Page 7: Setup Wizard (Cpe Modem Only)
Setup Wizard (CPE Modem only) The Setup Wizard allows for quick and easy configuration of the most common settings (WAN) for the VDSL Extender. Advanced Menu System This section allows for general configuration/administration of the VDSL Extender unit. - Page 9 This section can configure how the built-in VDSL Modem connects to a DSL Internet Service Provider (ISP) through the “Line” RJ11 connector. The modem supports Dynamic IP, Static IP and PPPoE modes. The LAN section is used to configure the IP address and DHCP server on the RJ45 Ethernet side of the VDSL Extender unit.
- Page 10 This section is used to configure the advanced features on the Ethernet side of the VDSL Extender unit. This include “Virtual Server”, “Port Mapping” and DMZ settings.
- Page 11 Firewall This section contains numerous intrusion and access control options. Route Allows for creating static routing paths for data transmission. UPnP Allows for enabling/disabling UPnP support.
- Page 12 VDSL2 Allows for manual configuration of the VDSL2 connection.
-
Page 13: Specifications
Specifications 2 x RJ11 female 4 x RJ45 Ethernet female External Connectors (per unit) 1 x DB9 female 1 x DC Power 1 x Power LEDs 1 x WAN Link (per unit) 4 x LAN Link/Activity IEEE 802.3, IEEE 802.3u, Supported Standards ITU G.993.2 300 m: 100 Mbps... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 15 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
