HDMI® over Cat5 Video Extender with
RS232 and IR Control
ST121UTPHD2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/13/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121UTPHD2
Summary of Contents for StarTech.com ST121UTPHD2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/13/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging Contents ..........................1 System Requirements ..........................1 Transmitter Unit ....................2 Receiver Unit ......................3 Preparing Your Site .................... 4 Hardware Installation ..................4 Specifications ...................... 6 Technical Support ....................7 Warranty Information ..................7 Instruction Manual... -
Page 4: Introduction
Introduction The ST121UTPHD2 HDMI® over Cat5 Extender Kit can extend the audio and video signal output from an HDMI®-equipped device by up to 330 feet (100 Meters), over a single CAT5 cable. The extender supports full High-Definition video (1080p) and HD 3D, and also extends the accompanying digital audio signal. -
Page 5: Transmitter Unit

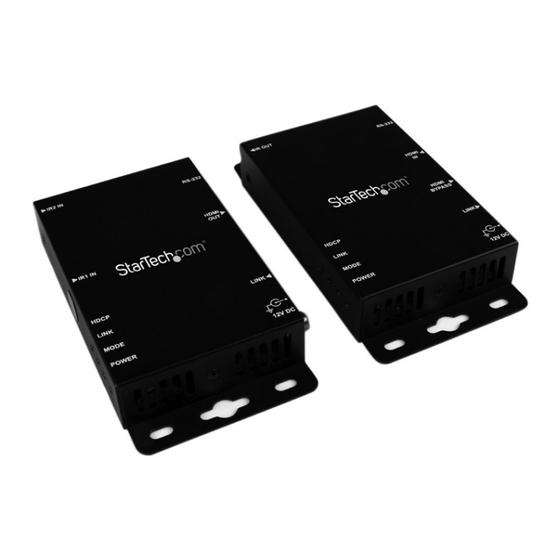

Transmitter Unit LINK POWER FRONT HDCP MODE IR OUT HDMI LINK REAR (RJ-45 Connector) Power Jack RS-232 HDMI (12V DC) BYPASS Instruction Manual... -
Page 6: Receiver Unit
Receiver Unit FRONT LINK POWER HDCP MODE IR1 IN IR2 IN REAR LINK (RJ-45 Connector) Power Jack RS-232 HDMI (12V DC) Instruction Manual... -
Page 7: Preparing Your Site
Blu-ray Player) to the “HDMI® IN” on the Transmitter Unit. c) Connect the provided Transmitter Unit power supply. d) (Optional) If using the ST121UTPHD2 to extend an infrared (IR) device signal. Connect the IR Transmitter Cable to the IR OUT on the Transmitter Unit, and Position the extended IR sensor directly in front of the video source’s IR sensor. - Page 8 Connect the video source to the HDMI® OUT on the Receiver Unit using an HDMI® cable (Not included). c) (Optional) If using the ST121UTPHD2 to extend an infrared (IR) device signal. Connect the IR Receiver Cable to the IR IN 1 on the Receiver Unit, and Position the IR sensor where the remote control will point.
-
Page 9: Specifications
Specifications 1x IrDA (Infrared; SIR/FIR) 2x HDMI (19 pin) Female Local Unit Connectors 1x DB-9 (9 pin; D-Sub) Female 1x RJ-45 Female 2x IrDA (Infrared; SIR/FIR) 1x HDMI (19 pin) Female Remote Unit Connectors 1x DB-9 (9 pin; D-Sub) Male 1x RJ-45 Female HDMI®... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
