StarTech.com C2-ETHERNET-EXTENDER Quick Start Manual

10/100 Base-TX Ethernet Extender Kit - Extend up to 2,624ft (800m)
Product ID
C2-ETHERNET-EXTENDER

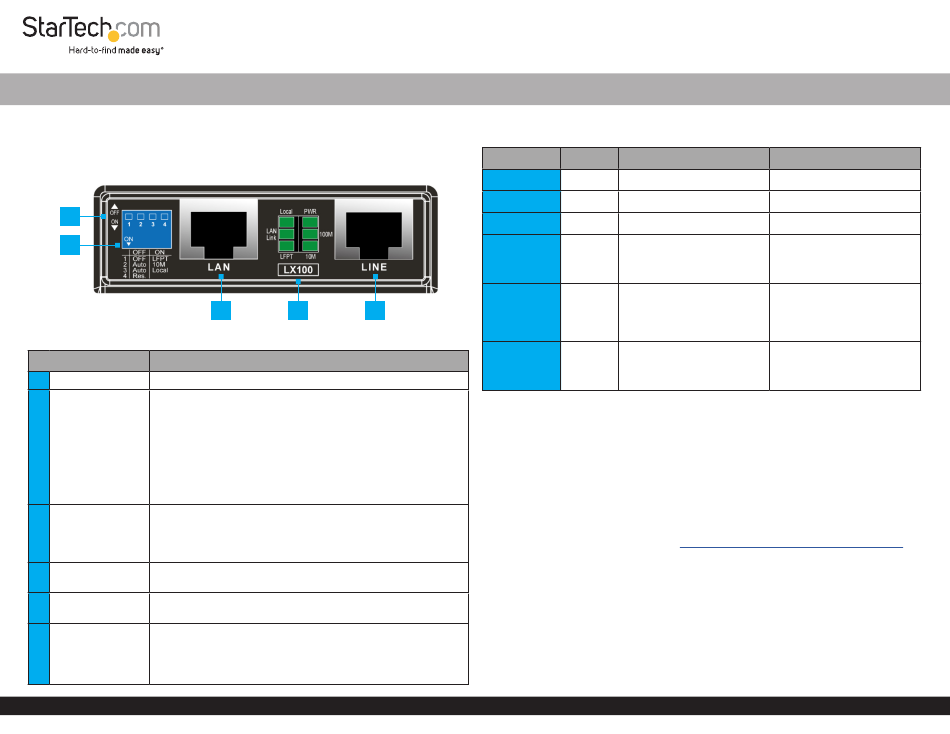

Front View
1
2
Component
1 ON/OFF Position • Sets a specified DIP Switch ON or OFF
• Select the desired change for (1) Link Fault Pass-Through
(LFPT), (2) Link Speed, or (3) Local/Remote mode
Note: Keep the DIP Switch 4 in the OFF position at all times to
prevent undesired behavior.
2
DIP Switches
LFPT Note: If a link between two units is lost, one unit may
continue to send packets assuming the link is up, potentially
leading to data loss. LFPT minimizes this risk by forcing a link
down state upon link failure.
• Connects the Local unit to the Local Network or Host
Device/Computer via RJ45 UTP Cable
3 LAN Port
• Connects the Remote unit to a Remote Network or
IP-Based Device via RJ45 UTP Cable
• Indicate the status of Local/Remote, Power, Link Status,
4 LED Indicators
Link Speed, and LFPT
• Connects the Local and Remote units to each other using
5
LINE Port
RJ45 or RJ11UTP Cable
• Connect to a Power Source using the included Power
Adapter
DC Power Port
6
(At the Back) • Recommended 12V and 1A
• Type M barrel plug: Ø 5.5x2.1x9.5mm
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3 4 5
*Product may vary from image
Function
LED Indicators
LED Color
Local
Green Local Mode is ON
PWR
Green Unit is receiving power
LAN Link Green
Local to Remote Link is
100M
Green
operating at 100Mbps
LFPT function is ON,
LFPT Green and a LAN Link Fault has
Local to Remote Link is
10M
Green
operating at 10Mbps
Package Contents
• Ethernet Extender x 2
• Power Adapter x 2
• Mounting Bracket x 2
• Mounting Screws x 4
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit
• RJ45 terminated UTP/STP Cat5e (or better) Ethernet cable (sold separately)
• Phillips head screwdriver
Quick-Start Guide
ON OFF
Auto Mode
Unit is not receiving power
LAN Link Up LAN Link is Down
Local to Remote unit Link
is operating at 10Mbps or
is Down
LFPT function is OFF or
LFPT function is ON, and
no LAN Link Fault has
occurred
occurred
Local to Remote unit Link
is operating at 100Mbps or
is Down
www.startech.com/C2-ETHERNET-EXTENDER
Manual Revision: April 11, 2024
