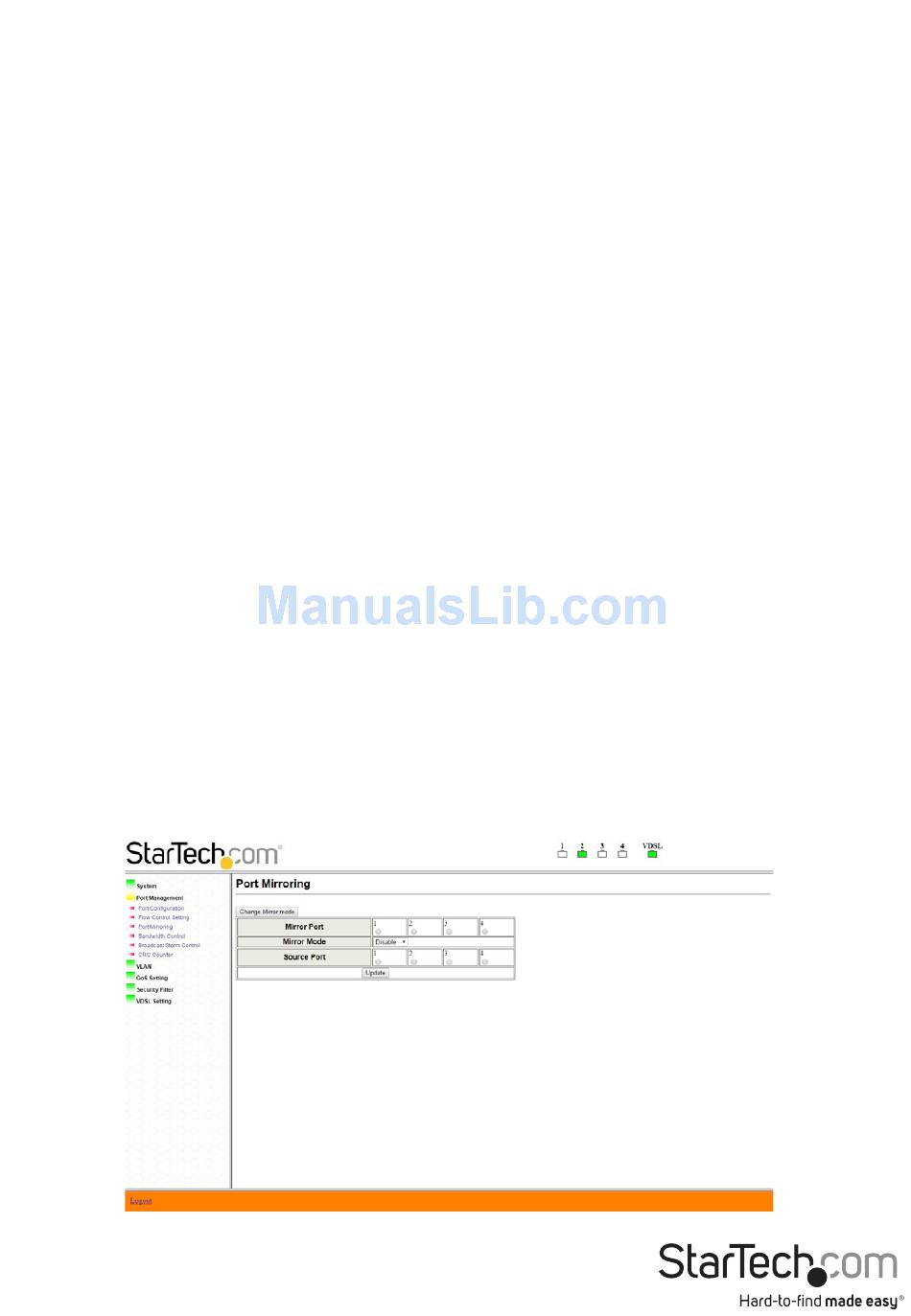

Port Mirroring
Choose to mirror configurations using two settings, click on "Change Mirror Mode"
button to change your mirror setup style.
In order to use the port mirroring function, you will need the following information:
1. Mirror Port: Select a mirror port to monitor the traffic source.
2. Mirror Mode: Modes 1 and 2
• Disable: Port mirroring function is disabled.
• Rx: Copy the incoming packets of the selected source port to the
selected mirror port.
• Tx: Copy the outgoing packets of the selected source port to the selected
mirror port.
• Tx&Rx: Copy both incoming and outgoing packets from the selected
source port to the selected mirror port.
• Mirror source-destination pair: Tx port and Rx port must be different
ports.
3. Source Port: The source port traffic which will be copied to the mirror port.
4. Destination Port: Only available in Mode 2.
Mode 1
Has four "Mirror Mode" options: Disable, Rx, Tx, and Tx&Rx. In this mode, select your
"Mirror Port Number, " "Source Port Number, " and "Mirror Mode. " Click the "Update"
button to save your settings.
Mode 2
Has two "Mirror Mode" options: Disable or Mirror source-destination pair. In addition,
you need to choose your "Destination Port" and "Source Port. " Click the "Update"
button to save your settings.
