LAN Link
Condition of the LAN interface:
off
green
orange
LAN Rx/Tx
Indicating data traffic on the LAN interface:
off
green
WAN State
Condition of connections via WAN interface:
off
green
red
Condition of the WAN interface:
WAN Link
off
green
orange
2.4

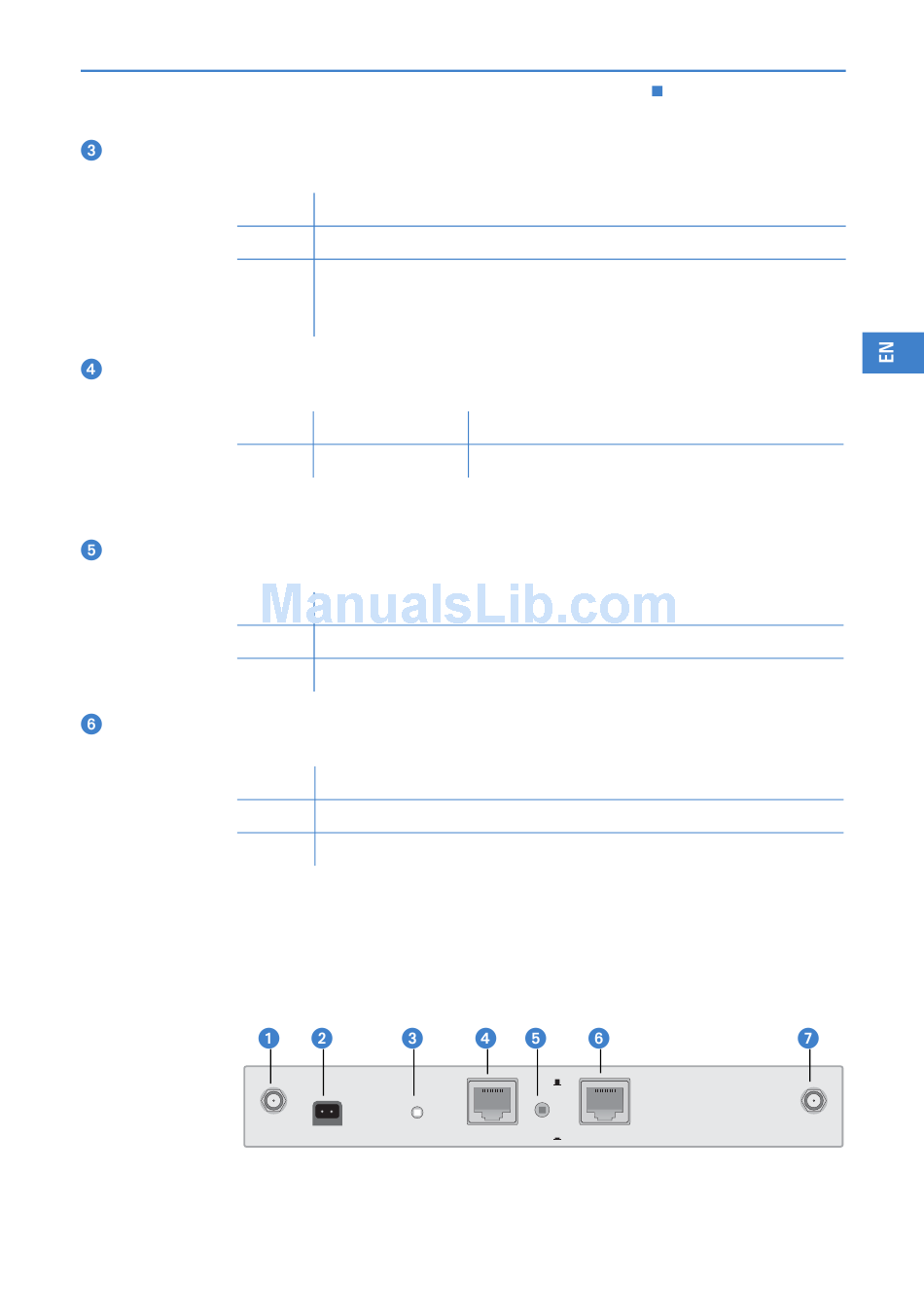

The back of the unit
The connections and switches of the base station are located on the back
panel:
Antenna Main
no network device connected
network device connected; transfer rate 100 Mbps
network device connected; transfer rate 100 Mbps (The device cannot function as
directed, since a 10 Mbps fast connection is too slow for a 54 Mbps fast WLAN
data transmission in the LAN.)
no data traffic
flickering
data traffic
no connection established
connection successfully established (via PPPoE, PPTP)
failled connection establishing
no device (DSL or cable modem) connected
device connected, transfer rate 100 Mbps
device connected, transfer rate 10 Mbps
AC 12 V
Reset
LAN 10/100 Mb
LANCOM 3550 Wireless
Chapter 2: Installation
Node
Hub
WAN 10/100 Mb
Antenna Aux
21
