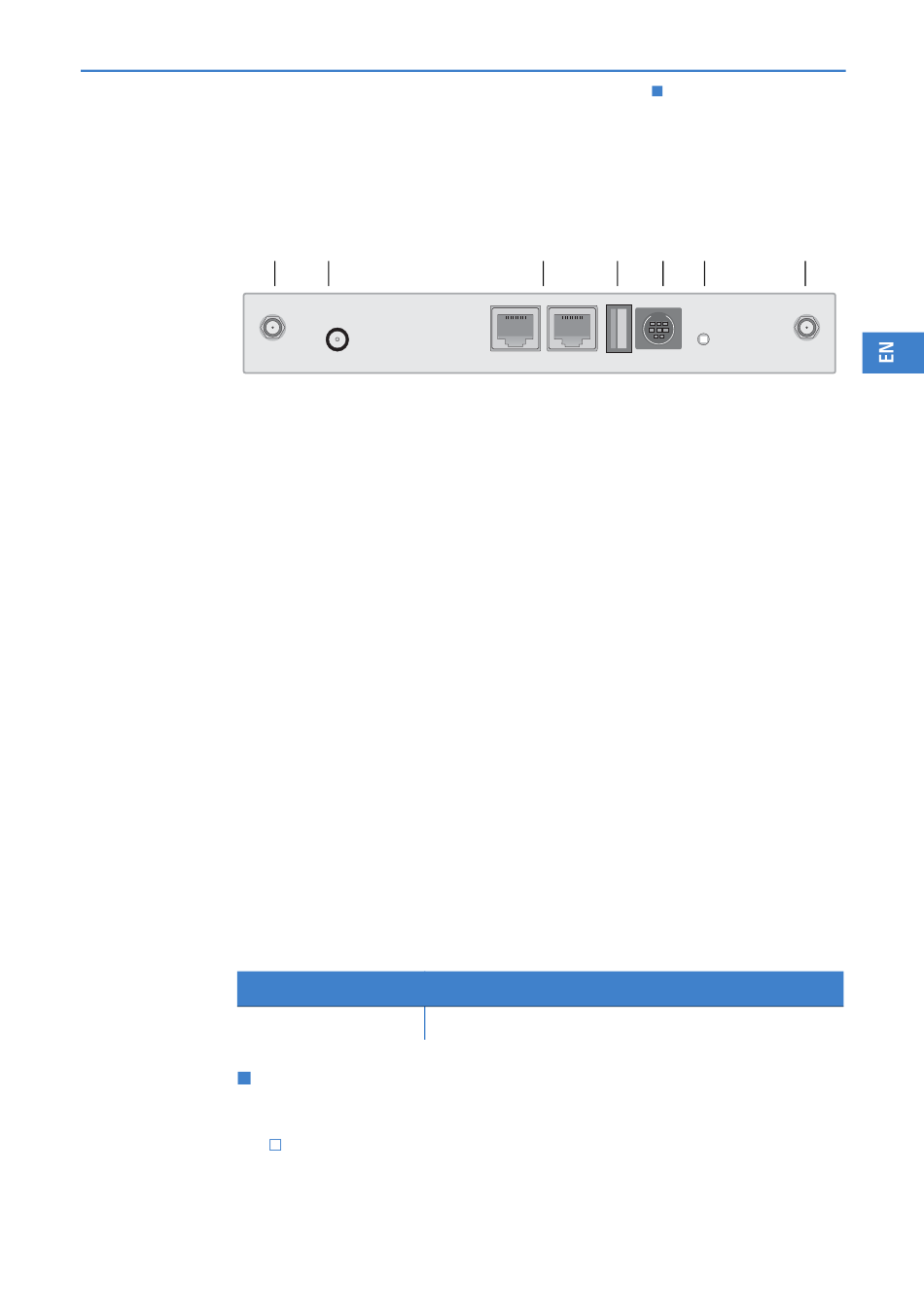

The back of the unit

The connections and switches of the LANCOM Wireless Router are located on
the back panel:
³ ·
Antenna Aux 12 V DC
³
Connector for diversity antenna
·
Connection for the included power adapter
»
Switch with 10/100Base-Tx connectors
The LAN connectors of the LANCOM 3850 UMTS supports the Power-
over-Ethernet standard (PoE). You find further information about operat-
ing with PoE in the info box 'Power-over-Ethernet – elegant power supply
through the LAN wiring'.
¿
USB connector (USB host)
´
Serial configuration port (RS 232/V.24)
²
Reset button
The reset button offers two basic functions—boot (restart) and reset (to the
factory settings)—which are called by pressing the button for different
lengths of time.
Some devices simply cannot be installed under lock and key. There is conse-
quently a risk that the configuration will be deleted by someone pressing the
reset button too long. With the suitable setting, the behavior of the reset but-
ton can be controlled accordingly.
Configuration tool
WEBconfig, Telnet
Reset button
This option controls the behavior of the reset button when it is pressed:
Ignore: The button is ignored.
»
ETH2 ETH1
Call
Expert configuration > Setup > Config
