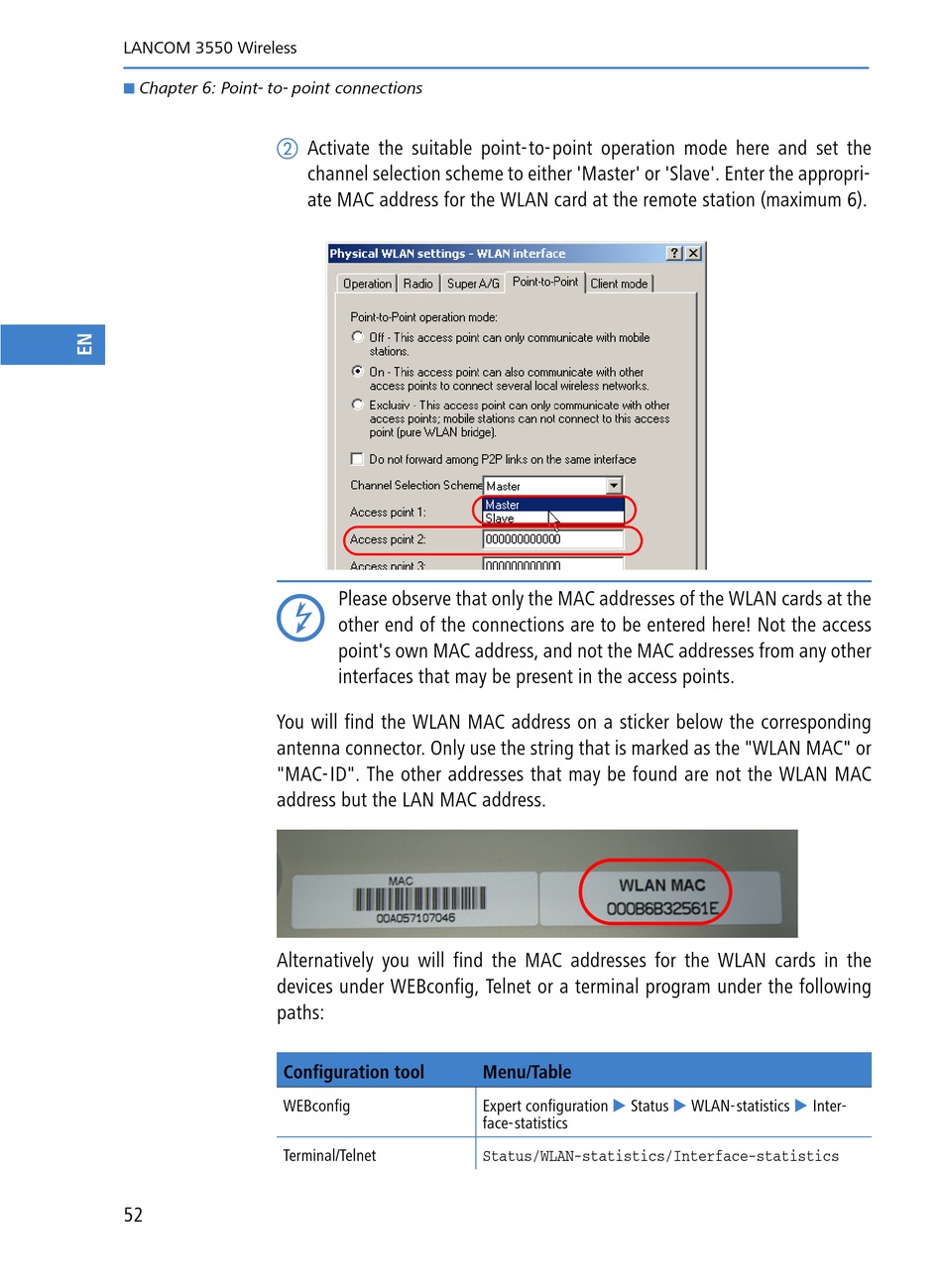

Lancom 3550 Wireless User Manual page 52

LANCOM 3550 Wireless
Chapter 6: Point- to- point connections

You will find the WLAN MAC address on a sticker below the corresponding
antenna connector. Only use the string that is marked as the "WLAN MAC" or
"MAC-ID". The other addresses that may be found are not the WLAN MAC
address but the LAN MAC address.
Alternatively you will find the MAC addresses for the WLAN cards in the
devices under WEBconfig, Telnet or a terminal program under the following
paths:
Configuration tool
WEBconfig
Terminal/Telnet
52
Activate the suitable point-to-point operation mode here and set the
channel selection scheme to either 'Master' or 'Slave'. Enter the appropri-
ate MAC address for the WLAN card at the remote station (maximum 6).
Please observe that only the MAC addresses of the WLAN cards at the
other end of the connections are to be entered here! Not the access
point's own MAC address, and not the MAC addresses from any other
interfaces that may be present in the access points.
Menu/Table
Expert configuration Status
face-statistics
Status/WLAN-statistics/Interface-statistics
WLAN-statistics Inter-
