Lancom AP-321-3G Brochure & Specs

3g router with wlan for m2m applications in harsh environments
Hide thumbs

Advertisement

Quick Links

Download this manual
. . .
c o n n e c t i n g

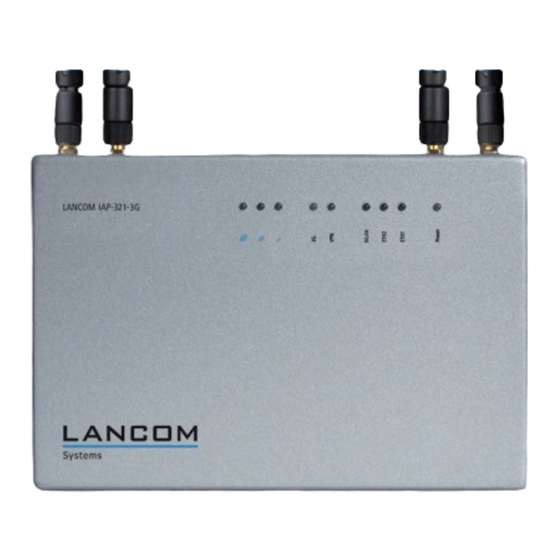

LANCOM IAP-321-3G
3G router with WLAN for M2M applications in harsh environments
High- speed Internet access via HSPA+ with download speeds of up to 21 Mbps
Backwards compatible with the cellular standards UMTS, EDGE/GPRS
High- performance network connections from dual- band 802.11n WLAN and Gigabit
Ethernet
For severe environments: IP50 housing and wide temperature range from -20°to +50°C
Ideal for M2M applications with its serial interface and COM-port forwarding
Integrated GPS functionality for device positioning
VPN site- to-site connectivity with 5 simultaneous IPsec VPN channels (25 channels
optional)
Flexible power supply with a 10 – 28V universal power adapter
y o u r
b u s i n e s s

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-321-3G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lancom AP-321-3G

Summary of Contents for Lancom AP-321-3G

  • Page 1 LANCOM IAP-321-3G 3G router with WLAN for M2M applications in harsh environments High- speed Internet access via HSPA+ with download speeds of up to 21 Mbps Backwards compatible with the cellular standards UMTS, EDGE/GPRS High- performance network connections from dual- band 802.11n WLAN and Gigabit...
  • Page 2 For machine- to- machine communications, the LANCOM IAP- 321- 3G features a serial COM port for COM- port forwarding. This enables systems that do not support IP to be integrated into a company network. The LANCOM IAP- 321- 3G also has a Gigabit Ethernet interface and numerous networking features such as IPsec VPN, VLAN support, and an object- oriented stateful inspection firewall.

  • Page 3: Bandwidth Limitation

    Layer- 3 Tunneling in conformity with the CAPWAP standard allows the bridging of WLANs per SSID to a separate IP subnet. Layer- 2 packets are encapsulated in Layer- 3 tunnels and transported to a LANCOM WLAN controller. By doing this the access point is independent of the present infrastructure of the network.
  • Page 4 The use of BFWA is subject to country specific regulation WLAN operating modes WLAN access point Infrastructure mode (autonomous operation or managed by LANCOM WLAN Controller) WLAN bridge Point- to- multipoint connection of up to 7 Ethernet LANs (mixed operation optional), broken link detection, blind mode, supports VLAN When configuring Pt- to- Pt links, pre- configured names can be used as an alternative to MAC Adresses for creating a link.
  • Page 5 IKE is blocked. Suitable for client- to- site connections (with LANCOM Advanced VPN Client 2.22 or later) and site- to- site connections (LANCOM VPN gateways or routers with LCOS 8.0 or later). IPSec over HTTPS is based on the NCP VPN Path Finder...
  • Page 6 20 Mbps Content Filter (optional) Demo version Activate the 30- day trial version after free registration under http://www.lancom.eu/routeroptions URL filter database/rating server Worldwide, redundant rating servers from IBM Security Solutions for querying URL classifications. Database with over 100 million entries covering about 10 billion web pages. Web crawlers automatically search and classify web sites to provide nearly...
  • Page 7 Graphic display of key values (marked with an icon in LANmonitor view) over time as well as table for minimum, maximum and average in a separate window, e. g. for Rx, Tx, CPU load, free memory. Monitoring of the LANCOM managed switches.
  • Page 8 TCP- based protocols, e.g. for HTTP(S) remote maintenance of VoIP phones or printers of the LAN. Additionally, SSH and Telnet client allow to access other devices from a LANCOM device with an interface to the target subnet if the LANCOM device can be reached at its command line interface TFTP &...
  • Page 9 LANCOM WLAN Controller for central management of 6 or 12 LANCOM access points and WLAN routers, item no. 61367 LANCOM WLC- 4006 (UK) LANCOM WLAN Controller for central management of 6 or 12 LANCOM access points and WLAN routers, item no. 61368 for UK LANCOM WLC- 4025+ LANCOM WLAN Controller for central management of 25 (opt.

  • Page 10: Item Numbers

    LANCOM Advanced VPN Client for Windows XP, Windows Vista, Windows 7, 25 licenses, item no. 61602 VPN Client Software LANCOM Advanced VPN Client for Mac OS X (10.5 Intel only, 10.6 or higher), single license, item no. 61606 VPN Client Software LANCOM Advanced VPN Client for Mac OS X (10.5 Intel only, 10.6 or higher), 10 licenses, item no.
