LANCOM 7111 VPN – LANCOM 8011 VPN
Chapter 2: Installation
2.3.2
The back of the unit

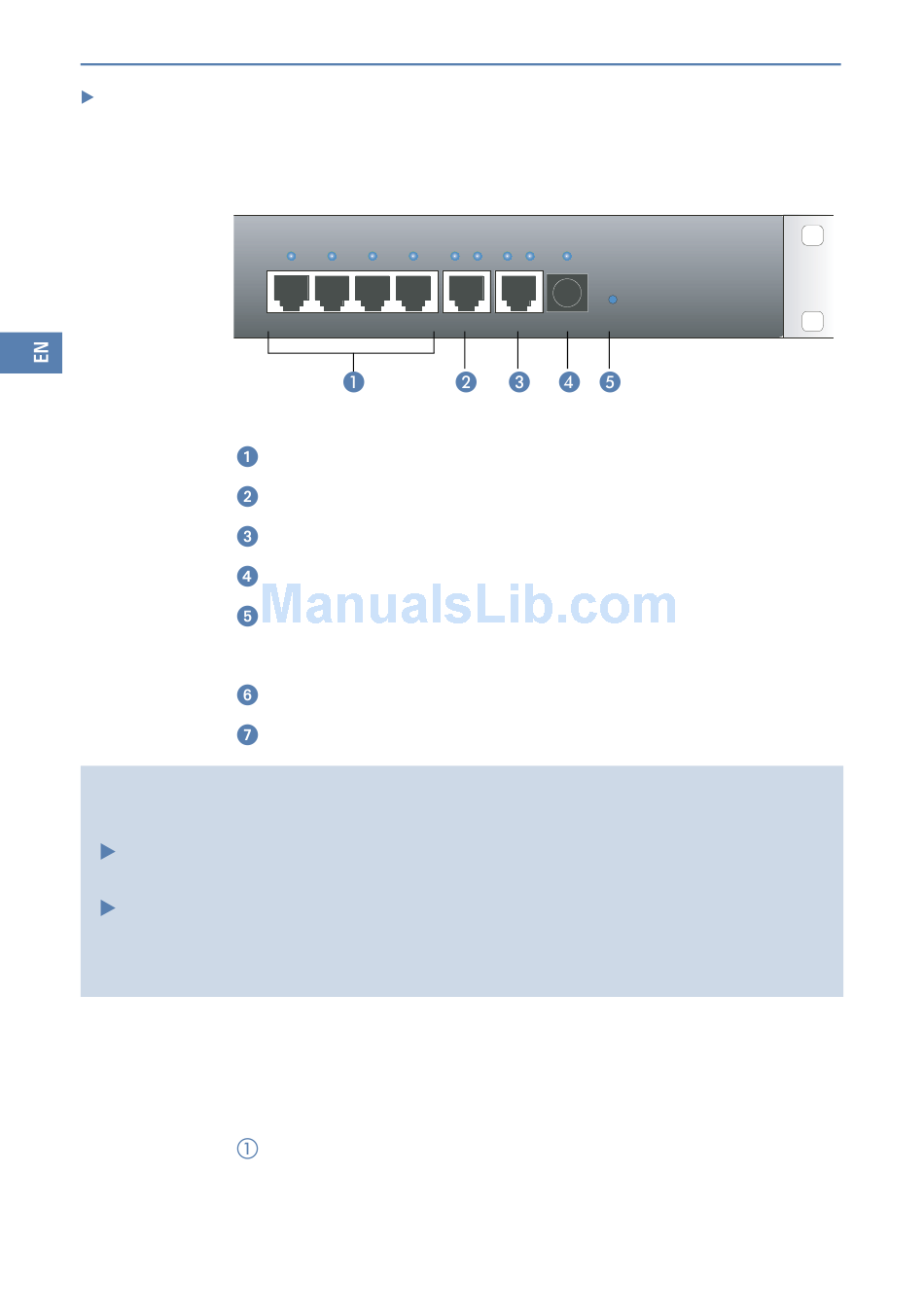

Ports and switches of the router are placed on the front and back:
The following ports can be found on the front side:
The following ports can be found on the back:
The reset switch has two different functions depending on the length of time that it is
pressed:
Restarting the device (soft reset) – push the button for less than five seconds. The
device will restart.
Resetting the configuration (hard reset) – push the button for more than five seconds.
All the device's LEDs will light up green and stay on. As soon as the reset switch is
released, the device will restart with factory default settings.
2.4
Hardware installation
The installation of the LANCOM router base station takes place in the follow-
ing steps:
24
ETH4
ETH3
ETH2
ETH1
Four 10/100Base Tx ports for local networks
WAN port
ISDN/S
port
0
Serial configuration interface
Reset switch
Voltage Switch
Port for power cable
Mounting – If desired, mount the device into a free slot of a 19" rack.
WAN
ISDN
COM
LANCOM 8011 VPN
