Gehl SL7600 Operator's Manual page 40

Changing Attachments
WARNING
attachment from the hitch, be sure to properly secure the hitch latch
pins by rotating the latch lever all the way to the left (manual
All-Tach hitch) or by ensuring that the pin flags are all the way to the
outside (power All-Tach hitch)
The skid loader features either a manual or power All-Tach™ attaching
mechanism (hitch) for mounting a bucket or other attachment conforming to
SAE J2513 standards.
On a manual All-Tach (Fig. 21) hitch, a latch lever engages the latch pins to
secure the attachment. On a power All-Tach (Fig. 22) hitch, a switch on the
left control panel engages the latch pins to secure the attachment.
Connect Attachment
1. Manual hitch: Rotate the latch
lever to the right to fully retract the
latch pins.
Power hitch: Activate the switch to
unlock the hitch and fully retract the
latch pins.
2. Start the loader engine and make
sure the lift arm is lowered and in
contact with the loader frame.
3. Align the loader squarely with the
back of the attachment.
4. Tilt the hitch forward until the top
edge of the hitch is below the flange
on the back side of the attachment
and centered between the vertical
plates.
5. Slowly drive the loader forward and,
at the same time, tilt the hitch back to
engage the flange on the back side of
the attachment.
6. Stop forward travel when the flange is engaged, but continue to tilt the
hitch back to lift the attachment off the ground.
7. Manual hitch: Exercise the
(page 6). Leave the operator's compartment and rotate the
PROCEDURE
latch lever to the left to fully engage the latch pins.
37
To prevent unexpected

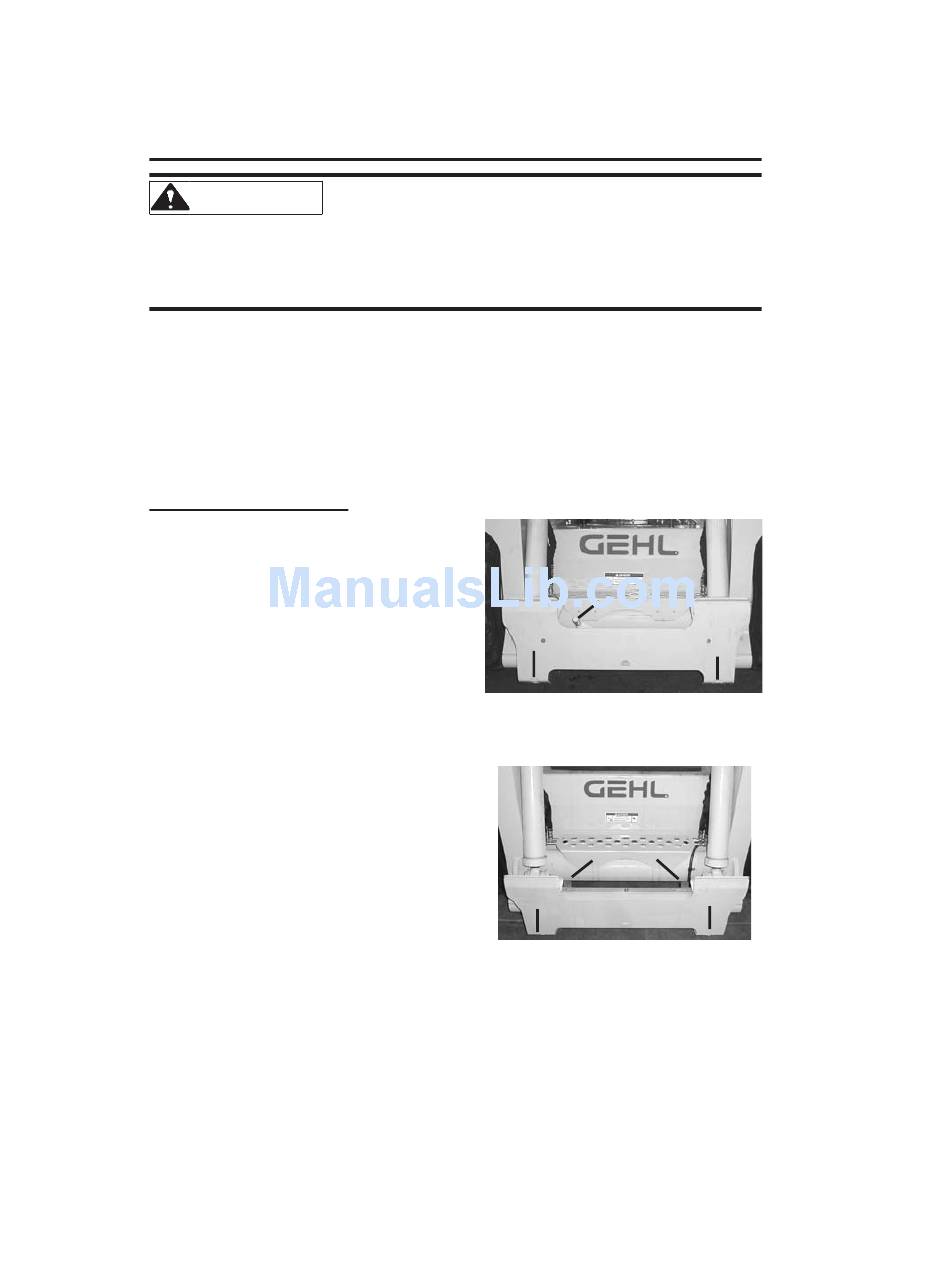

Fig. 21: Manual Hitch - disengaged
1. Latch Lever
2. Latch Pins
Fig. 22: Power Hitch - disengaged
1. Pin Flags
2. Latch Pins
MANDATORY SAFETY SHUTDOWN
release of
1
2
1
1
2
2
908274/BP1202
the
2
