Parts List - THE WORLD MODELS Groovy 90 Instruction Manual

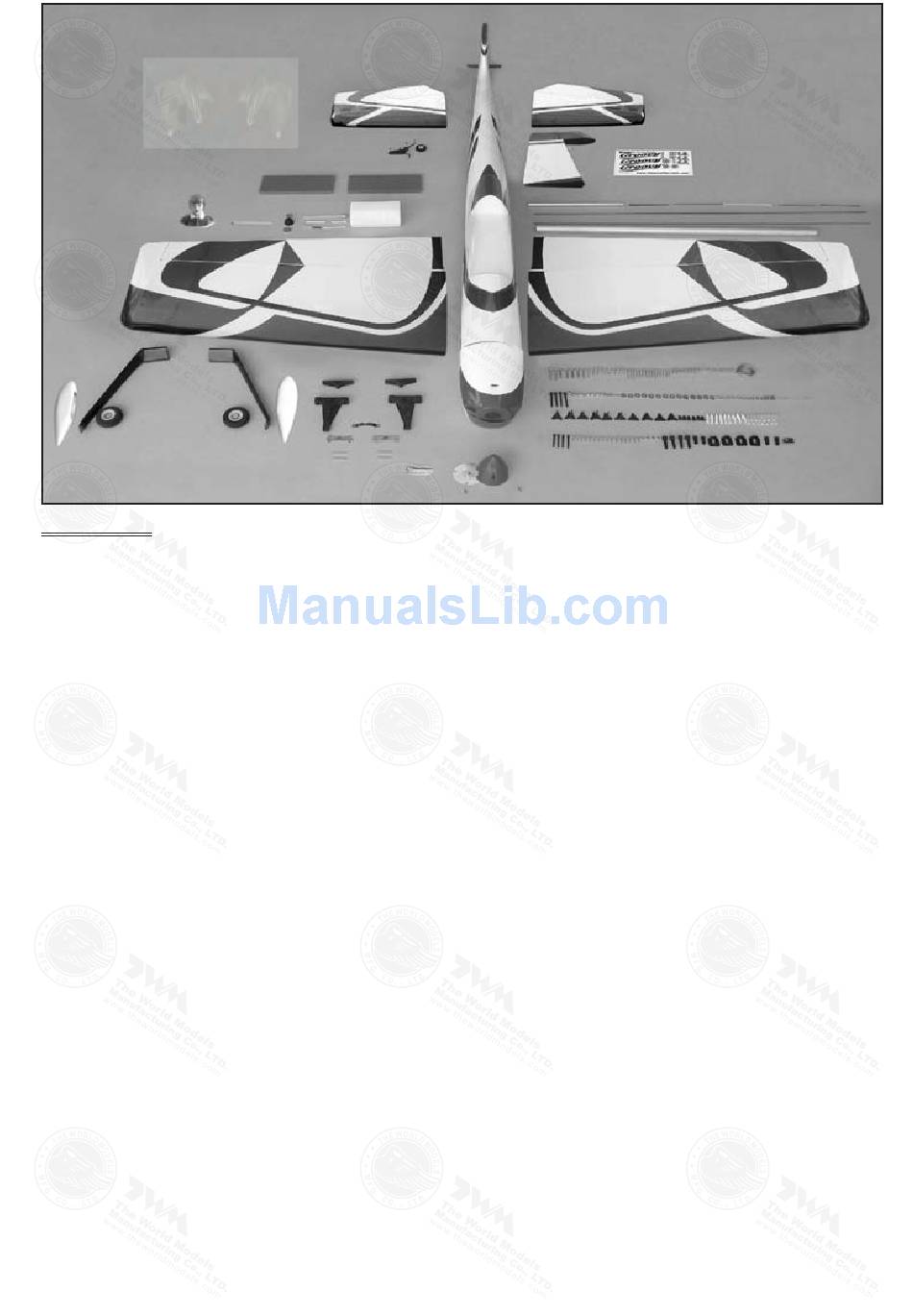

Parts List

1. FUSELAGE -- 1 pc.
2. MAIN WING -- 1 pair.
3. STABILIZER & ELEVATOR -- 1 set
4.VERTICAL FIN & RUDDER --1 set
5.CANOPY -- 1 pc.
6. COWLING --1 set
TRANSPARENT DUMMY COWLING --1pc.
7.PILOT -- 1 pc.
8.SPINNER (w.alu.back plate) Ø70mm -- 1 set
9.ENGINE MOUNT PL5111080 -- 1 set
10.FUEL TANK 380cc -- 1 set
11.SPONGE(For Radio Equipment) -- 1 pc.
12.CARBON FIBER MAIN LANDING GEAR -- 1 pair
13.TAIL LANDING GEAR -- 1 set
14.WHEEL PANTS -- 1 pair
15.MAIN WHEEL Ø55mm -- 2 pcs
16.TAIL WHEEL Ø30mm -- 1 pc.
17.PUSHROD, PUSHWIRE & PULLWIRE:--
COPPER TUBE d2.5xD3.2x8mm (For Rudder) -- 4 pcs
RIGGING Z BEND Ø1.8x27mm (For Rudder) -- 2 pcs
RIGGING COUPLER Ø1.8x27mm w/Threads
(For Rudder ) -- 2pcs
Ø1.8x85mm w/Threads (For Aileron) -- 2 pcs
Ø1.8x900mm w/Threads (For Elevator) -- 2 pcs
Ø1.8x105mm (For Elevator) -- 1 pc.
WIRE Ø1x1080mm (For Rudder) -- 2 pcs
18.THROTTLE PUSH WIRE Ø1.2x270mm
w/Plastic tube d2xD3x130mm-- 1 set
19.WOODEN PARTS:--
BALSA 10x10x114mm (For Fixing Fuel Tank) -- 1 pc.
PLYWOOD 5x61x114mm (For Throttle Servo ) --1 pc.
PLYWOOD 5x61x109.7mm (For Elevator Servo ) --1 pc.
PLYWOOD 5x61x112mm (For Rudder Servo ) --1 pc.
BALSA 6x6x61mm (For Fueslage Servo Stand) -- 6 pcs
20.PLASTIC PARTS:--
CLEVIS -- 6 pcs
RUBBER BAND -- 2 pcs
STRAPER -- 3 pcs
TRI-HORN M3x14(L) -- 4 sets
TRI-HORN M3x14(L) (w/o-Base For Rudder) -- 2 pcs
PUSHROD CONNECTOR -- 1 set
DOUBLE-SIDED TAPE -- 1 pc.
SILICON GROMMET d1.5xD6.5mm -- 14 pcs
WING INCIDENCE ANGLE ADJUSTER -- 4 sets
21.METAL PARTS:--
LINKAGE CONNECTOR 2.1mm -- 1 pc.
COLLAR 4.1mm w/set screw -- 2 sets
COLLAR 2.6mm w/set screw -- 1 set
WING TUBE D22x720 mm -- 1 pc.
STABILIZER TUBE D9.5x254mm -- 1 pc.
ALUMINUM PLATE (For Engine Mount) -- 1 pc.
WIRE Ø3x115mm -- 1 pc.
M2 NUT -- 3 pcs
M4 NUT -- 2 pcs
SCREW PA3x10mm -- 2 pcs
SCREW PA3x12mm -- 4 pcs
SCREW PA3x25mm -- 1 pc.
SCREW PM2x22mm -- 6 pcs
SCREW PM2x25mm -- 9 pcs
SCREW PM3x15mm -- 6 pcs
SCREW PM3x16mm -- 2 pcs
SCREW PM3x25mm -- 1 pc.
SCREW PM4x25mm -- 4 pcs
SCREW PM4x35mm -- 2 pcs
SCREW PWA2.3x8mm -- 10 pcs
SCREW PWA2.6X12mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
WASHER d3xD12mm -- 6 pcs
WASHER d4xD9mm -- 2 pcs
WASHER d4xD12mm -- 4 pcs
22.ANTI-VIBRATION MOUNT 4C-91 -- 1 set
INCLUDE: SOCKET HEAD SCREW M4x35mm -- 4 pcs
SCREW KM3x20mm -- 8 pcs
WASHER d4xD12mm -- 8 pcs
NYLON INSERT LOCK NUT M3 -- 8 pcs
NYLON INSERT LOCK NUT M4 -- 4 pcs
23.FUEL TUBE Ø6x5mm -- 9 pcs
24.DECALS -- 1 set
25.COVERING:--
TOUGHLON STL100 WHITE
TOUGHLON STL 550 PEARL BLUE
TOUGHLON STL 561 PEAR PURPLE
TOUGHLON STL 361 PURPLE
TOUGHLON STL 511 PEARL FERRARI RED
TOUGHLON STL 360 VIOLET
TOUGHLON STL 251 SKY BLUE
P . 2
