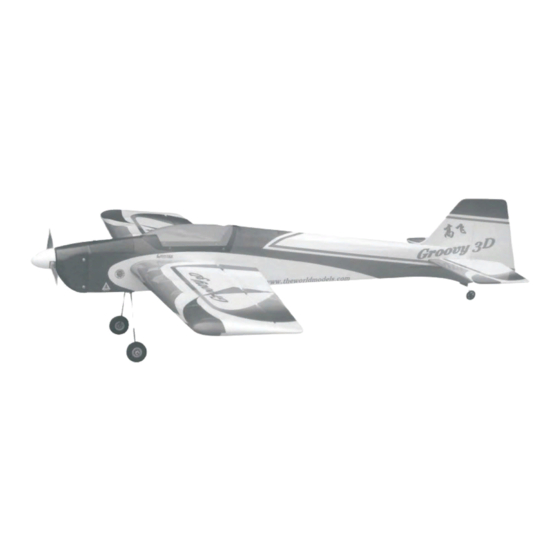

THE WORLD MODELS Groovy 3D EP Instruction Manual
  1. Manuals
  2. Brands
  3. THE WORLD MODELS Manuals
  4. Toy
  5. Groovy 3D EP
  6. Instruction manual

THE WORLD MODELS Groovy 3D EP Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Requires : 4-channel radio w/ 4 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
E217XM0806
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
*Specifications are subject to change without notice.*
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Specifications
39.5 in / 1000mm
305 sq in / 19 7 sq dm
25 5 oz / 720g
.
39 in / 990mm
INSTRUCTION MANUAL
3D EP
3D EP
.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF) SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Groovy 3D EP and is the answer not in the manual?

Questions and answers

Related Manuals for THE WORLD MODELS Groovy 3D EP

Summary of Contents for THE WORLD MODELS Groovy 3D EP

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY(ARF) SERIES Manufacturing Co., LTD. MADE IN CHINA www.theworldmodels.com...

  • Page 2: Before You Begin

    3D EP 3D EP I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts.
  • Page 3 Parts List 1. MAIN WING -- 1 pair 9. FOLDING PROPELLER SET -- 1 set SPINNER Ø45mm -- 1 set 2. PUSHROD Ø1.4x80mm w/ Threads (For Aileron) -- 2 pcs SCREW PM3x6mm -- 4 pcs STRAPER (S) -- 2 pcs WASHER d3xD7mm -- 4 pcs CLEVIS (S) -- 2 pcs COWLING -- 1 pc.

  • Page 4: Aileron Servo

    Main Wing Aileron Servo lead Aileron Servo lead Apply instant type CA glue to both sides of each hinge. Bottom View Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PM2x20mm Screw PA1.7x8mm Screw Ø1mm pilot holes for World Models tri-horn are pre-drilled.

  • Page 5: Stabilizer & Elevator

    Stabilizer & Elevator (Stabilizer) A’ Temporary install the main wing, adjust (Main Wing) leveling of the stabilizer to make it as Apply instant type CA glue to parallel to the main wing as possible. A=A’ both sides of each hinge. Completed Vertical Fin &...

  • Page 6: Tail Landing Gear

    Tail Landing Gear PA2x8mm Screw PM2x8mm Screw Plastic M2 Nut Collar PA2x8mm 1.5mm Wheel Ø23mm M2 Nut PM2x8mm Bottom View Main Landing Gear Screw PA2.3x10mm Front Collar 2.6mm PA2.3x10mm 1.5mm 2.6mm Collar Landing Wire Straps M3x3mm Set Screw Bottom View Ø1mm pilot holes for World Models horn are pre-drilled.

  • Page 7: Rudder Pushrod

    Ø1mm pilot holes for World Models horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at under side of control surfaces. Screw PM2x10mm 90mm Elevator Pushrod Ø1.4x540mm Fuel Tube d2xD2x4mm PM2x10mm Bottom View Outrunner Motor & Cowling Optional Parts PM3x6mm Screw Don't over-tighten the PM3 screws, too much stress on...
  • Page 8 Main Wing Eye Screw Bottom PA2.5x10x23mm 90° Wing Tube D9.6x227mm Lead to Aileron Servo Bottom View Rubber Band Bottom View E217XM0806...

  • Page 9: Radio Equipment

    Radio Equipment Install and arrange the servo as shown in the diagram . Battery Tie Battery PM2 x10mm Screw M2 Nylon Insert Lock Nut Front d2 x D5mm Washer 20A Brushless ESC Double-Sided Tape Elevator Pushrod Straper Sponge Elevator Servo Receiver Ø1.4x470mm Front...
  • Page 10 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' E217XM0806...

  • Page 11: Control Throws

    Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 12mm 12mm Rudder 20mm 20mm Ailerons 14mm 14mm The ideal C.G. position is 85mm (3.35 in.) behind C.G.
  • Page 12 The World Models Manufacturing Co., LTD. www .thew orldm odels .com E217XM0806...
