1. gFCi duplex Receptacles – NEMA 5-20R, GFCI
receptacle will provide 120V@ 20 amps.
2. hour meter – Indicates the number hours the generator
has been in use.
3. lifting Bail Eye – Attach a rope or chain to this lifting
eye when lifting of the generator is required. Never
stand underneath the generator while it is being lifted.
Place lifting bail in down position when not in use.
4. gFCi sensing module – Interrupts power when a
ground fault exist.
5. main Breaker – This 2-pole, 15 amp circuit breaker
protects the generator from short circuiting or
overloading. When starting the generator always have
the circuit breaker placed in the "OFF" position.
6. AC-voltmeter – This voltmeter indicates (with a
mark) the rated 60 Hz (single-phase) output voltage.
In addition the voltmeter can also be used as a
diagnostic tool. If the voltmeter indicator (needle) is
below the rated voltage, engine problems may exist
(low/high RPM's). To prevent damage to the generator
or power tools turn the generator OFF and consult your
authorized Multiquip service dealer.
ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 19
3
1 2 4 5 6
GA-3.6HR
ON ON
0N 0N
V V 120 120
120 120 OFF OFF
P P F F
O O A A IDLE OFF OFF
W W U U
E E L L AC VOLTMETER AC VOLTMETER CONTROL
R R T T OPERATION OPERATION
SWITCH SWITCH
120V 120V
MANUAL RESET MANUAL RESET
AC CIRCUIT BREAKER AC CIRCUIT BREAKER
QUARTZ QUARTZ GFCI PROTECTED GFCI PROTECTED
240/120V 240/120V
120V 120V 120V 120V
FULL POWER FULL POWER
SWITCH SWITCH
20A 20A 20A 20A 120V 120V 120V 120V 120/240V 120/240V
20A 20A 30A 30A 30A 30A

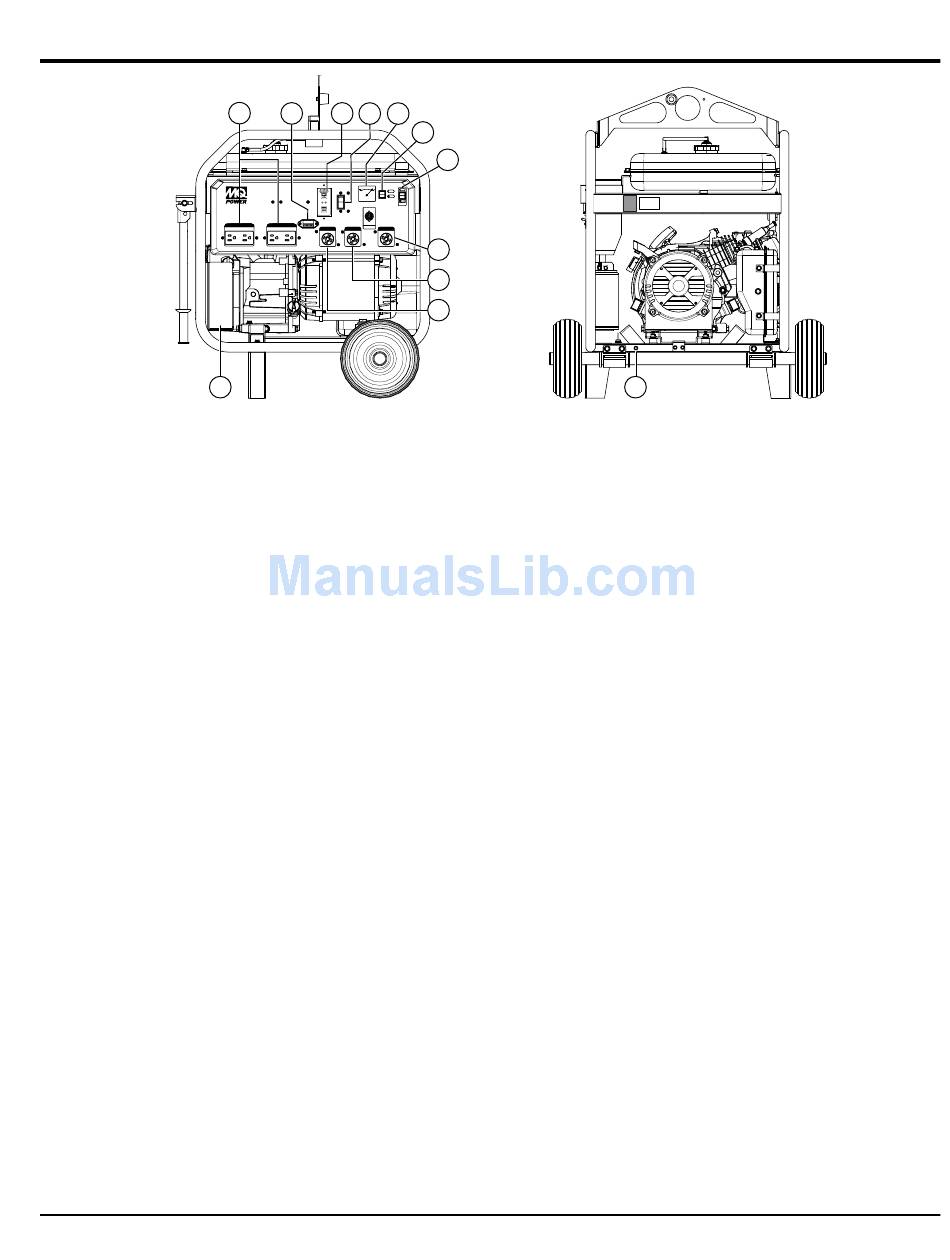

Figure 4. Generator Components

COmPONENTS (GENERATOR)

7
8
9
10
11
7. idle Control switch – The generator is provided with
an automatic idle control device for noise suppression
and reduced fuel consumption.
The automatic idle control automatically engages under
a no-load condition. With the automatic idle control
switched "ON", the engine revolutions will automatically
drop to about 2500 rpm (low-speed operation) within
3 seconds after the load stops. When the operation is
resumed, the engine speed is automatically increased
to about 3600 rpm (high-speed operation) as soon as
the load is connected.
8. Operation switch – Place switch in the "ON" position
(up) for normal operation. To turn-off the generator,
place the operation switch in the "OFF" position (down)
9. 120/240v Output Receptacle – NEMA L14-30R twist-
lock receptacle will provide 240V, 60 Hz @ 13.3 amps,
or 120V@ 26.7 amps (X2) 60 Hz. Depending on the
position of the full power switch.
10. 120v Output Receptacle – NEMA L5-30R twist-lock
receptacle will provide 120V, 30 amps, 60 Hz.
11. 120v Output Receptacle – NEMA L5-20R twist-lock
receptacle will provide 120V, 20 amps, 60 Hz.
12. Charcoal Canister – A container filled with activated
charcoal that traps gasoline vapors emitted by the
fuel system.
13. ground – This ground connection point should be
connect to a good earth ground (ground rod).
13
