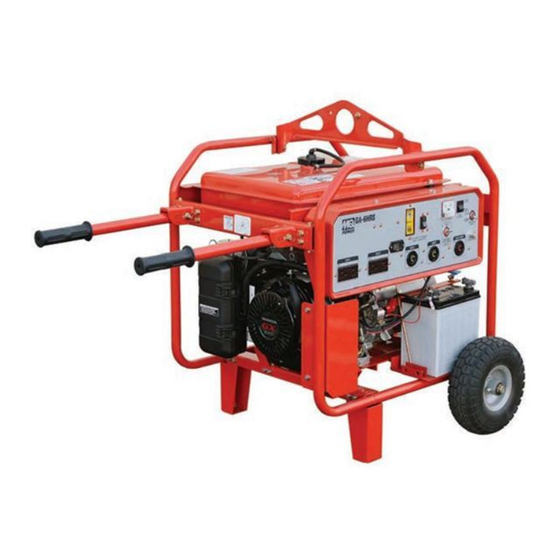

OperatiOn and parts Manual
MOdel ga3.6Hr
pOrtable generatOrs
(HOnda gX240rt2edn2 gasOline engine)
Revision #0 (09/17/14)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA3.6HR and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP GA3.6HR

Summary of Contents for MULTIQUIP GA3.6HR

  • Page 1 OperatiOn and parts Manual MOdel ga3.6Hr pOrtable generatOrs (HOnda gX240rt2edn2 gasOline engine) Revision #0 (09/17/14) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65/Start Fires Warnings

    A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements. page 2 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 3: Table Of Contents

    Nameplate And Decals Assembly ....40-41 Generator Assembly ......... 42-43 Control Box Assembly ........44-45 Pipe Frame Assembly ........46-47 Muffler Assembly ..........48-49 Wheel Kit Assembly .......... 50-51 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 3...

  • Page 4: Nameplate/Safety Information

    #8 MINIMUM GROUND ROD FOR EARTH GROUND CONNECT TO BUILDING GROUND IF REQUIRED FOR FURTHER GROUNDING 8 FT. MINIMUM INSTRUCTIONS, READ MANUAL REFERENCE NEC 250-52(C) D9531100104 pAgE 4 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 5: Parts Ordering Procedures

    All orders are treated as Standard Orders and will ship the same day if received prior to 3PM PST. WE ACCEpT All mAJOR CREdiT CARds! ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 5...

  • Page 6: Safety Information

    COuld result in dEATh or sERiOus iNJuRY. CAuTiON Indicates a hazardous situation which, if not avoided, COuld result in miNOR or mOdERATE iNJuRY. NOTICE Addresses practices not related to personal injury. page 6 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 7: General Safety

    „ AlWAYs know the location of the nearest fire extinguisher. „ AlWAYs know the location of the nearest first aid kit. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 7...

  • Page 8: Fuel Safety

    A spark arrester is a device designed „ Store fuel in appropriate containers, in well-ventilated areas and away from sparks and fl ames. page 8 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 9 „ AlWAYs recharge the battery in a well-ventilated environment to avoid the risk of a dangerous concentration of combustible gasses. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 9...
  • Page 10 „ Use one point suspension hook and lift straight upwards. „ dO NOT lift machine to unnecessary heights. „ AlWAYs tie down equipment during transport by securing the equipment with rope. pAgE 10 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 11: Safety Information

    The label must remain with the engine for its entire life. If a replacement emission label is needed, please contact your authorized Honda Engine Distributor. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 11...

  • Page 12: Specifications (Generator)

    196 lbs. (89 kg.) NOTICE In keeping with Multiquip's policy of constantly improving its products, the specifications quoted herein are subject to change without prior notice. pAgE 12 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 13: Specifications (Engine)

    Generally, the engine's output power will decrease 3-1/2% for each 1000 feet (305 meters) of altitude above sea level, and 1% for each 10° F (-12.2° C) above the standard temperature of 60° F (15.5° C). ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 13...

  • Page 14: Dimensions

    Table 3. generator dimensions REFERENCE dEsCRipTiON dimENsiONs: iN. (mm) lETTER HEIGHT (LIFTING BALE) 34.1 (865) HEIGHT (FRAME) 29.7 (755) LENGTH 29.9 (760) WIDTH 30.9 (785) pAgE 14 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 15 NOTE ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 15...

  • Page 16: Installation

    (#8 MINIMUM) GROUND ROD FOR EARTH GROUND CONNECT TO GENERATOR BUILDING GROUND GROUND LUG IF REQUIRED 8 FT. MINIMUM REFERENCE NEC 250-52(C) Figure 3. Generator Grounding pAgE 16 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 17: Installation

    Pay close attention to handling when operating vibrators and always use rubber boots and gloves to insulate the body from a short circuit. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 17...

  • Page 18: General Information

    „ GFCI Sensing Module „ 15 Amp Main Circuit Breaker. „ AC Voltmeter „ Idle Control Switch „ Full Power Switch „ Operation Switch „ Hour Meter pAgE 18 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 19: Components (Generator)

    13. ground – This ground connection point should be connect to a good earth ground (ground rod). ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 19...
  • Page 20 NOTICE When the full power switch is in the 120V position, the 240V twist-lock receptacle cannot be used.. page 20 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 21: Components (Generator)

    Placing the generators on level ground generator is in use. Always allow time for engine to will ensure that the low oil sensor will function properly. cool before servicing. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 21...

  • Page 22: Inspection/Setup

    100 ft. 1800 3600 150 ft. 100 ft. 65 ft. 2400 4800 125 ft. 75 ft. 50 ft. CAuTiON: Equipment damage can result from low voltage. page 22 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 23 4. When refueling, be sure to use a strainer for filtration. dO NOT top-off fuel. dO NOT fill the tank beyond capacity. Wipe up any spilled fuel immediately! ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 23...

  • Page 24: Operation

    NOT release the starter rope after pulling. Allow it to rewind as soon as possible.. 2. Place the choke lever (Figure 15) in the ClOsEd position if starting a cold engine. pAgE 24 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 25 When the load is not in use, the engine speed will drop back to the idle mode after about 3 seconds. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 25...
  • Page 26 14. Connecting of loads (power tools, lighting etc.) to the generator receptacles can now be done. 240/120V Figure 23. Full Power Switch 240/120V Position (Down) page 26 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 27: Shutdown

    4. To shut-down the engine, place the generator's operation switch (Figure 27) in the OFF position). Figure 29. Operation Switch (Emergency) Figure 27. Operation Switch (OFF) ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 27...

  • Page 28: Preparation For Long Term Storage

    „ Clean all external parts of the generating set with a cloth. „ Cover the generating set and store in a clean, dry place. page 28 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 29: Maintenance

    (3) For commercial use, log hours of operation to determine proper maintenance intervals. (4) Charcoal canister is maintenance free (non-servicable). Replace only if damaged. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 29...
  • Page 30 3. Next, remove, inspect and clean the fuel strainer 5. Install drain bolt with sealing washer and tighten (Figure 30) with solvent. securely. Figure 30. Fuel Strainer Figure 32. Draining Engine Oil page 30 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 31 THOROUGHLY 5. Reinstall the spark arrester and muffler protector in reverse order of disassembly. Figure 34. Cleaning Foam Element ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 31...
  • Page 32 Figure 38. GFCI Module (Green LED ON) 4. Also verify that the AC voltmeter is registering a voltage reading as indicated by Figure 43. Figure 41. AC Voltmeter (Zero Volts) page 32 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 33: Maintenance

    NOT operate the generator if this test fails. Consult a qualified electrician for repair or replacement of the GFCI module. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 33...

  • Page 34: Generator Wiring Diagram

    GENERATOR WIRING DIAGRAm pAgE 34 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 35: Troubleshooting (Engine)

    Fuel fi lter/lines clogged? Replace fuel fi lter. Fuel tank cap breather hole clogged? Clean or replace fuel tank cap. Air in fuel line? Bleed fuel line. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 35...
  • Page 36 Check cable connections. Charge or replace Will not start, no power with key "ON". (if Battery disconnected or discharged? applicable) battery Ignition switch/wiring defective? Replace ignition switch. Check wiring. page 36 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 37: Troubleshooting (Generator)

    Does not decelerate but has "VOLTAGE OUTPUT". Defective solenoid? Check or replace solenoid. Idle control device malfunction? Check or replace idle control device. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 37...

  • Page 38: Explanation Of Code In Remarks Column

    “Remarks” Column. assembly/kit that can be purchased, or is not available for sale through Multiquip. page 38 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)

  • Page 39: Suggested Spare Parts

    3....17211899000 ..ELEMENT AIR CLEANER NOTICE Part numbers on this Suggested Spare Parts list may supersede/replace the part numbers shown in the following parts lists. ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 39...
  • Page 40 OIL AND SQUEEZE OUT EXCESS OIL. GA-3.6HR IDLE AC VOLTMETER CONTROL OPERATION SWITCH 120V AC CIRCUIT BREAKER GFCI PROTECTED 240/120V 120V 120V FULL POWER SWITCH 120V 120V 120/240V A31120120 pAgE 40 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 41 DECAL: HANDLE OPERATION ......1....A35100010 87533ZC0630 DECAL: AIR CLEANER ........1....REPLACES P/N 0600500045 A3561000503 DECAL: MQ POWER GA3.6H A3511201202 DECAL: CONTROL PANEL ......1....A31120120 87528898620 DECAL: CHOKE ..........1....REPLACES P/N 0600500047 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 41...
  • Page 42 GA3.6HR — GENERATOR ASSy. pAgE 42 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 43 END BRACKET ..........1....REPLACES P/N 7871315022 7875021523 GUIDE PANEL, AIR 7661331003 COVER 7911316004 SET BOLT, STATOR 7871329514 GROMMET 0601851760 0013608020 HEX. HEAD BOLT 0040008000 WASHER, LOCK ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 43...
  • Page 44 GA3.6HR — CONTROl bOX ASSy. pAgE 44 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 45 HEX. NUT ............3....REPLACES P/N 0030004000 58042 WASHER, FLAT ..........5....REPLACES P/N 0041204000 0040004000 WASHER, LOCK Y0601800699 HOUR METER Y0021003012 HEX. HEAD BOLT 0207003000 HEX. NUT ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 45...
  • Page 46 GA3.6HR — PIPE FRAmE ASSy. pAgE 46 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 47 Y0605513210 HOSE 0605513189 HOSE 0605515223 HOSE BAND A3261600103 BRACKET A3261600204 STOPPER 011106015 HEX. HEAD BOLT ..........3....REPLACES P/N 0016906015 0605515170 HOSE BAND Y0605515229 HOSE BAND ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 47...
  • Page 48 GA3.6HR — muFFlER ASSy. pAgE 48 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 49 HEX. NUT ............2....REPLACES P/N 0207008000 011008020 HEX. HEAD BOLT ..........2....REPLACES P/N 0017108020 7915469004 BRACKET 011206020 HEX. HEAD BOLT ..........1....REPLACES P/N 0017106020 0105050616 HEX. HEAD BOLT ..........4....REPLACES P/N 0017106012 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 49...
  • Page 50 GA3.6HR — WHEEl kIT ASSy. pAgE 50 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 51 HEX. HEAD BOLT 0010108025 HEX. HEAD BOLT 0207608000 U-NUT 0401450080 WASHER, FLAT ..........2....REPLACES P/N 0041208000 A3417400904 STAND 011106015 HEX. HEAD BOLT ..........8....REPLACES P/N 0016906015 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 51...

  • Page 52: Air Cleaner Assembly

    HONDA GX240RT2EDN2 — AIR ClEANER ASSy. pAgE 52 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 53 SEAL, AIR CLEANER COVER 17238ZE7710 COLLAR, AIR CLEANER 90005ZM3000 BOLT, FLANGE 5X18 90854ZB3000 RUBBER, FUEL 9X15X20 9405006000 NUT, FLANGE 6MM 957010603208 BOLT, FLANGE 6X32 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 53...

  • Page 54: Camshaft Assembly

    HONDA GX240RT2EDN2 — CAmSHAFT ASSy. pAgE 54 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 55 RETAINER, EX. VALVE SPRING 14775ZE2010 SEAT, VALVE SPRING 14791Z1D000 GUIDE, PUSH ROD 90012ZE0010 BOLT, PIVOT 8MM 90206ZE1000 NUT, PIVOT ADJUSTING 14100Z5K910 CAMSHAFT COMP. (STD) ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 55...

  • Page 56: Carburetor Assembly

    HONDA GX240RT2EDN2 — CARbuRETOR ASSy. pAgE 56 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 57 99101ZH80780 JET, MAIN #78 99101ZH80800 JET, MAIN #80 99101ZH80820 JET, MAIN #82 99204ZE00380 JET SET, PILOT #38 16220ZA0702 SPACER, CARBURETOR 17228Z5T000 PACKING, AIR CLEANER ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 57...

  • Page 58: Control Assembly

    HONDA GX240RT2EDN2 — CONTROl ASSy. pAgE 58 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 59 CONTROL ASSY..........1....INCLUDES ITEMS W/# 16584883300 SPRING, CONTROL ADJUSTING 90013883000 BOLT, FLANGE 6X12 90015Z5T000 BOLT, GOVERNOR ARM 93500050350A SCREW, PAN 5X35 9405006000 NUT, FLANGE 6MM ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 59...

  • Page 60: Crankcase Cover Assembly

    HONDA GX240RT2EDN2 — CRANkCASE COVER ASSy. page 60 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 61 90701HC4000 DOWEL PIN, 8X12 91201Z10003 OIL SEAL, 30X46X8 58176 WASHER, FLAT 6MM ........1....REPLACES P/N 9410106800 957010803500 BOLT, FLANGE 8X35 961006206000 BEARING, RADIAL BALL 6206 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 61...

  • Page 62: Crankshaft Assembly

    HONDA GX240RT2EDN2 — CRANkSHAFT ASSy. page 62 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 63 HONDA GX240RT2EDN2 — CRANkSHAFT ASSy. paRT NO. pART NAmE QTY. REmARks 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 91001ZH9003 BEARING, RADIAL BALL (6206 SH) 13310ZBAS40 CRANKSHAFT COMP., ........1....INCLUDES ITEMS W/% ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 63...

  • Page 64: Cylinder Barrel Assembly

    HONDA GX240RT2EDN2 — CylINDER bARREl ASSy. pAgE 64 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 65 O-RING, 14MM (NOK) ........1....REPLACES P/N 91353671004 9405010000 NUT, FLANGE 10MM 031112230 WASHER, DRAIN PLUG 12MM .......2....REPLACES P/N 9410912000 9425110000 PIN, LOCK 10MM 957010601200 BOLT, FLANGE 6X12 ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 65...

  • Page 66: Cylinder Head Assembly

    HONDA GX240R2EDN2 — CylINDER HEAD ASSy. page 66 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 67 WASHER CAMP., HEAD COVER 9430112200 DOWEL PIN, 12X20 9570H008000 BOLT, FLANGE, 10X80 9807955876 PLUG, SPARK (BPR5ES NGK) 9807955855 PLUG, SPARK (W16EPR~U DENSO) 12251Z5K003 GASKET, CYLINDER HEAD ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 67...

  • Page 68: Fan Cover Assembly

    HONDA GX240RT2EDN2 — FAN COVER ASSy. page 68 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 69 QTY. REmARks 19610Z5K800ZD COVER COMP., FAN *NH1* 19631Z5K000 SHROUD 81329567020 GROMMET, DRAIN HOLE 90013883000 BOLT, FLANGE 6X12 (CT200) 90654SA4003 CLIP, WIRE HARNESS 6MM (WHITE) ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 69...

  • Page 70: Flywheel Assembly

    HONDA GX240RT2EDN2 — FlyWHEEl ASSy. pAgE 70 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 71 HONDA GX240RT2EDN2 — FlyWHEEl ASSy. paRT NO. pART NAmE QTY. REmARks 19511ZE2000 FAN, COOLING 28451ZE2W01 PULLEY, STARTER 31110Z5K810 FLYWHEEL COMP. (LAMP) 90201ZE3790 NUT, SPECIAL 16MM ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 71...

  • Page 72: Ignition Coil Assembly

    HONDA GX240RT2EDN2 — IGNITION COIl ASSy. pAgE 72 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 73 GROMMET, CORD 31510ZE3003 COIL ASSY., LAMP 12V 125W 32110Z5K000 HARNESS ASSY., ENGINE WIRE 90013883000 BOLT, FLANGE 6X12 90015883000 BOLT, FLANGE 6X28 90684ZA0601 CLIP, HARNESS ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 73...

  • Page 74: Piston Assembly

    HONDA GX240RT2EDN2 — PISTON ASSy. pAgE 74 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 75 ROD ASSY., CONNECTING (0.25 UNDER SZ) 1 90001ZE8000 BOLT, CONNECTING ROD 90551ZE1000 CUP, PISTON PIN 18MM 13101Z5K000 PISTON (STD) 13102Z5K000 PISTON (0.25) 13103Z5K000 PISTON (0.50) 13104Z5K000 PISTON (0.75) ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 75...

  • Page 76: Recoil Starter Assembly

    HONDA GX240RTEDN2 — RECOIl STARTER ASSy. pAgE 76 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 77 SPRING, STARTER RETURN 28443ZE2W01 SPRING, RATCHET 28444ZE2W01 RETAINER, SPRING 28462ZE2W11 ROPE, RECOIL STARTER 90004ZE2W01 SCREW, CENTER 90008ZE2003 BOLT, FLANGE 6X10 28461Z5T305 GRIP, STARTER 28463Z5T013 GRIP, REINFORCEMENT ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 77...

  • Page 78: Solenoid Assembly

    HONDA GX240RT2EDN2 — SOlENOID ASSy. pAgE 78 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 79 LEVER COMP., SOLENOID THROTTLE 36160ZB4013 SOLENOID ASSY. 90013883000 BOLT, FLANGE 6X12 91502ZB4701 BUSH, AUTO-THROTTLE LEVER 93500050080A SCREW, PAN 5X8 9430520062 PIN, SPRING 2X6 9454004018 E-RING, 4MM ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 79...

  • Page 80: Engine Decals Assembly

    HONDA GX240RT2EDN2 — ENGINE DECAlS ASSy. page 80 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 81 HONDA GX240RT2EDN2 — ENGINE DECAlS ASSy. paRT NO. pART NAmE QTY. REmARks 87533ZC0630 DECAL: AIR CLEANER (ENGLISH) 87528898620 DECAL: CHOKE 87594ZB4A00 DECAL: OIL CAUTION 87521Z8S000 EMBLEM (GX240) ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 81...

  • Page 82: Terms And Conditions Of Sale - Parts

    Multiquip’s designated receiving point. page 82 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
  • Page 83 NOTES ga3.6HR 60 hz gENERATOR • OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14) — pAgE 83...
  • Page 84 © COPYRIGHT 2014, MULTIQUIP INC. Multiquip Inc , the MQ logo and the MQ Power logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
