1. Fuel Gauge — Indicates the amount of fuel in the
fuel tank.
2. Air Outlet Exhaust — Allows engine exhaust to exit
the generator into the open air. NEVER block this
opening.
3. Fuel Cap — Remove this cap to add fuel. Add only
#2 Diesel Fuel. Always keep an adequate amount of
fuel in the tank. DO NOT top off. Wipe up any spilled
fuel immediately.
4. Lifting Hook — Use this hook to lift the generator.
5. Engine Air Cleaner — Prevents dirt and other debris
from entering the fuel system. Lift locking latch on air
fi lter cannister to gain access to fi lter element.
6. Overfl ow Bottle — Supplies coolant to the radiator
when radiator coolant level is low. Fill to indicated level
as shown on bottle.
7. Engine Oil Filler Port — Remove this cap to add
engine oil. Use only recommended type oil. See Table 5.
8. Coolant Drain Plug — Remove this plug to drain
coolant from the radiator.
9. Oil Drain Plug — Remove this plug to drain oil from
the engine.
DA7000 SERIES GENERATORS • OPERATION AND PARTS MANUAL — REV. #5 (01/20/11) — PAGE 19

COMPONENTS (GENERATOR)

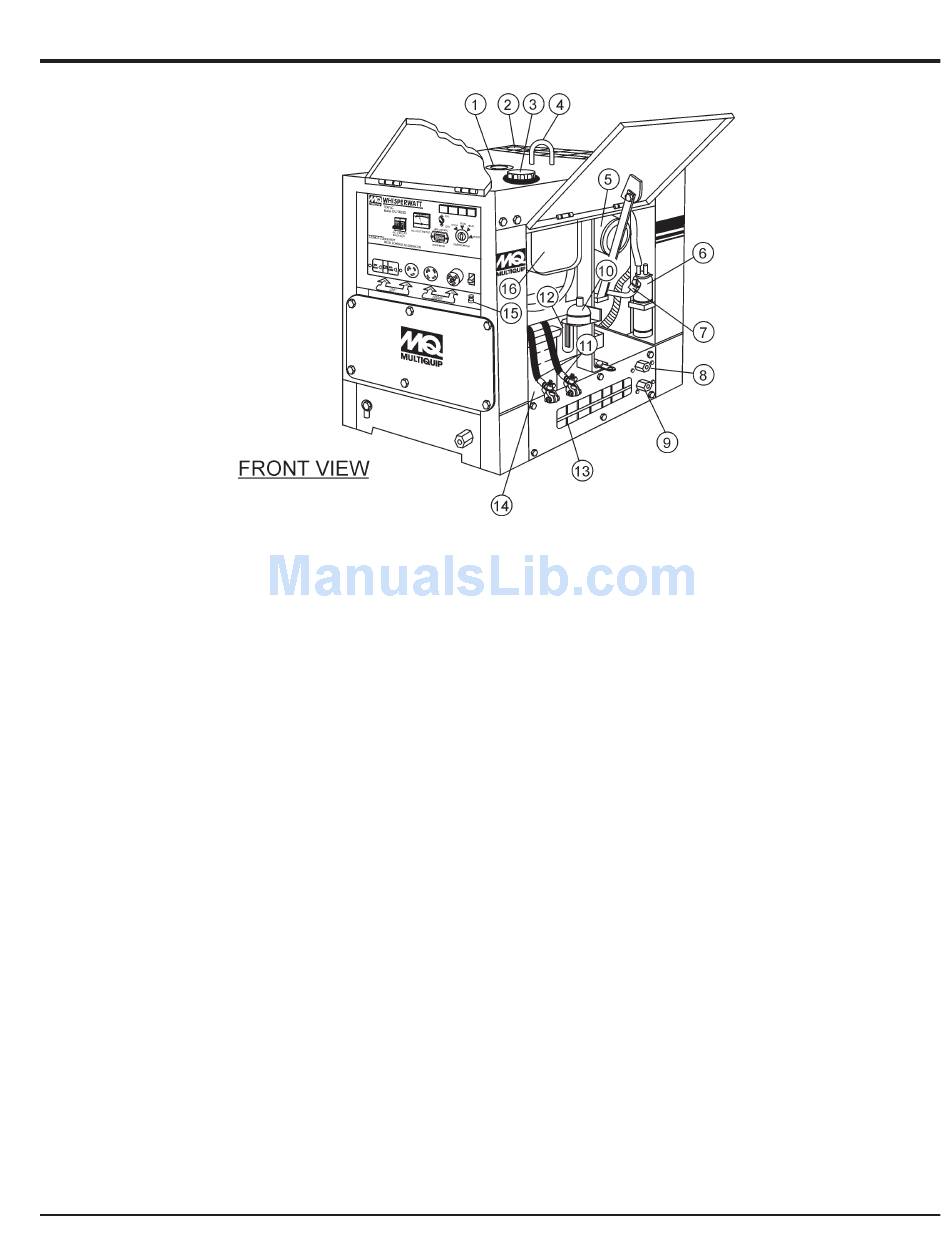

Figure 3. Generator Components
10. Automatic Speed Control Solenoid — Automatically
11. Battery Terminals — Connect these terminals to the
12. Fuel Filter — Prevents dirt and other debris from
13. Air Inlet Vent — Allows outside air to enter the
14. Battery — Provides +12 VDC power for the generator.
15. Ground Terminal — Use this terminal to connect
16. Fuel Tank — Holds 6.6 gallons (25 liters) of diesel fuel.
regulates engine speed.
battery. Always pay close attention to the polarity of
the terminals when connecting to the battery, RED
(positive), and BLACK (negative).
entering the fuel system. Change fuel filter as
recommended in the maintenance section of this
manual.
generator. NEVER block this opening.
When replacing battery (12V 35 AH) use only
recommended type battery.
external equipment grounds so that the GFCI
receptacle will have a ground path.
