MULTIQUIP GA3.6HR Operating Manual page 26

11. Read voltmeter on front panel of generator (Figure 22)
and verify that 120 VAC is displayed. Using an external
voltmeter as shown in Figure 22, verify that 120 VAC
is present at the 120V twist-lock and GFCI duplex
receptacles.
W
G
120VAC
X
L5-30R
120V
120
V

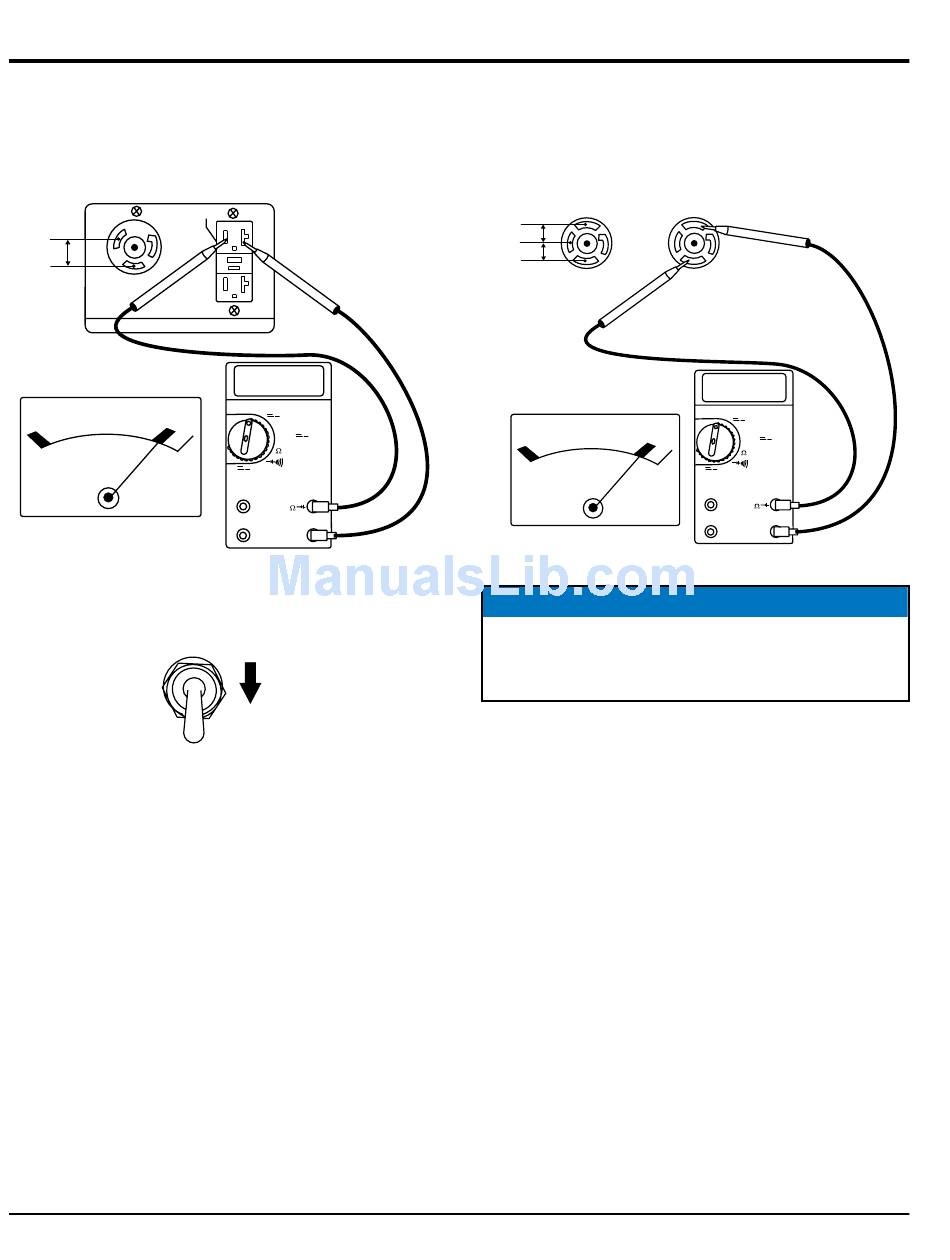

Figure 22. 120V Twist-Lock/GFCI Receptacles
12. Place the full power switch (Figure 23) in the 240/120V
position (down).
240/120V
Figure 23. Full Power Switch 240/120V Position
page 26 — ga3.6HR 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (09/17/14)
GFCI
120 VAC
OFF
V~
V
300 mV
A~
A
V
COM
DOWN
(Down)
13. Read voltmeter on front panel of generator (Figure 24)
and verify that 240 VAC is displayed. Using an external
voltmeter as shown in Figure 24, verify that 240 VAC is
present at the 120/240V, L14-30R twist-lock receptacle.
120VAC
L14-30R X
L14-30R
120VAC
W
G W
120VAC
Y
240
V
Figure 24. 120/240V L14-30R Receptacle
NOTICE
When using a combination of dual receptacles, total
load should not exceed the rated capacity of the
generator.
14. Connecting of loads (power tools, lighting etc.) to the
generator receptacles can now be done.
OPERATION
240VAC
X
G
Y
240 VAC
OFF
V~
V
300 mV
A~
A
V
COM
