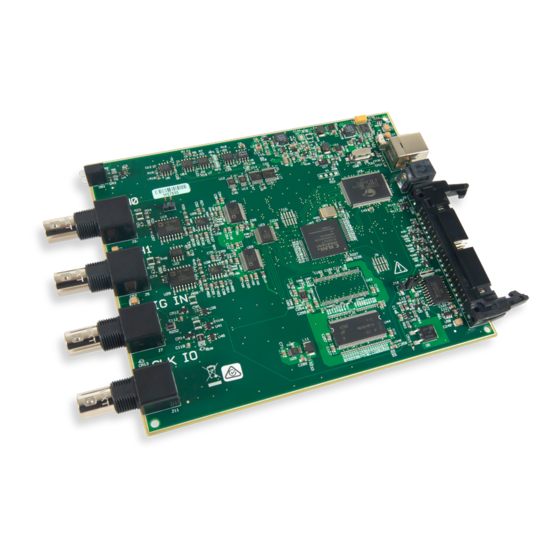

- Page 1 USB-2020 12-bit, Ultra High-Speed USB Device User's Guide Document Revision 2 February 2015 © Copyright 2015...
- Page 2 © 2015 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
-
Page 3: Table Of Contents
Chapter 1 Introducing the USB-2020 ........................6 Functional block diagram ........................... 6 Chapter 2 Installing the USB-2020 ........................7 What comes with your USB-2020 shipment? ..................... 7 Hardware ..................................7 Software .................................... 7 Documentation .................................. 7 Optional components ................................ 7 Unpacking................................ - Page 4 USB-2020 User's Guide External clock input/output..........................21 Memory ................................21 Power ................................22 Environmental ..............................22 Mechanical ............................... 22 USB .................................. 22 Signal I/O connectors ............................23 BNC connectors ................................23 Auxiliary connector .................................23...
-
Page 5: Preface
Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. Where to find more information Additional information about the USB-2020 is available on our website at www.mccdaq.com. You can also contact Measurement Computing Corporation by phone, fax, or email with specific questions. -
Page 6: Introducing The Usb-2020
The USB-2020 is compatible with both USB 1.1 and USB 2.0 ports. The speed of the device may be limited when using a USB 1.1 port due to the difference in transfer rates on the USB 1.1 versions of the protocol (low- speed and full-speed). -
Page 7: Installing The Usb-2020
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the USB-2020 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 8: Installing The Hardware
USB-2020 User's Guide Installing the USB-2020 Installing the hardware Before you connect the USB-2020 to your computer, connect the external power supply that was shipped with the device. Disconnect USB, then power supply When disconnecting the USB-2020, disconnect the USB cable first, and then disconnect the power supply. -
Page 9: Calibrating The Hardware
Removing USB-2020 boards from Windows XP systems Device Manager may require up to 30 seconds to detect the removal of a USB-2020 board from a Windows XP system with Service Pack 2 installed. This time increases with each additional connected device. If you remove four devices from your system, the time required for Device Manager to update may be almost two minutes. -
Page 10: Cabling
You can use the 40-pin CIO-MINI40 universal screw terminal board to terminate field signals and route them into the USB-2020 using the C40FF-x cable: You can use the following MCC screw terminal boards to terminate field signals and route them into the USB-2020 using the C40-37F-x cable directly: CIO-MINI37 –... -
Page 11: Chapter 3 Functional Details
BURSTIO When using BURSTIO, the USB-2020 can acquire data at the maximum rate of 20 MS/s per channel to the internal memory buffer (up to 64 megasamples) . The acquired data is read from the FIFO and transferred to a user buffer in the computer. -
Page 12: Connectors And Leds
The USB connector provides power to the USB-2020 and communication with the host computer. External power connector The USB-2020 requires external power. Connect the CB-PWR-9 power supply to the external power connector. This power supply provides 9 VDC, 3 A power, and plugs into a standard 120 VAC outlet. -
Page 13: 40-Pin Auxiliary Connector (J9)
USB-2020 User's Guide Functional Details 40-pin auxiliary connector (J9) The 40-pin auxiliary connector provides the following connections for all I/O signals except for analog input and clock I/O: Eight digital I/O ( DIO0 DIO7 Digital trigger input ( ... -
Page 14: Signal Connections
Signal connections Analog input The USB-2020 has two single-ended simultaneous sampling analog inputs that provide sampling at rates of up to 20 MS/s to internal memory when using BURSTIO and at rates of up to 8 MS/s (system-dependent) to the host computer in continuous scan mode. -
Page 15: External Clock I/O
CLK IO External clock I/O USB-2020 analog input scanning operations can be paced with the internal A/D clock or with an external clock source. The CLK IO connector can be configured through software for input (default) for external pacing, or for output to pace a connected device. -
Page 16: Trigger Input
USB-2020 User's Guide Functional Details Pull-up default configuration (factory default) Pull-down configuration Figure 6. Pull-up and pull-down jumper configurations (J10) An external pull-up resistor can be used to pull the DIO bit up to a voltage that exceeds the internal 5 V pull-up voltage (15 V maximum). -
Page 17: Mechanical Drawing
(positive or negative). For example, once the signal goes below 5 V, a rising edge that crosses 4 V must occur to trigger an acquisition. Mechanical drawing Figure 8. USB-2020 board dimensions... -
Page 18: Chapter 4 Specifications
Chapter 4 Specifications All specifications are subject to change without notice. Typical at 25 °C unless otherwise specified Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications Parameter Condition Specification A/D converter type AD9225 Number of channels Resolution 12-bits... -
Page 19: Accuracy
USB-2020 User's Guide Specifications Accuracy Table 2. DC Accuracy components and specifications. All values are (±) Range Gain error Offset error INL error Absolute Gain Offset (% of reading) (mV) (% of range) accuracy at temperature temperature Full Scale coefficient... -
Page 20: Digital Input/Output
USB-2020 User's Guide Specifications Digital input/output Table 5. Digital I/O specifications Parameter Specification Digital type CMOS Number of I/O Configuration Each bit can be independently configured as input (power on default) or output Input bits can be read at any time whether the digital output is active or tri- stated. -
Page 21: External Trigger
USB-2020 User's Guide Specifications External trigger Table 6. External trigger specifications Parameter Condition Specification Trigger source Digital TRIG IN (BNC connector and 40-pin connector) Analog CH0 or CH1 Trigger mode Digital Rising or falling edge, high or low level Analog... -
Page 22: Power
USB-2020 User's Guide Specifications Power Table 9. Power specifications Parameter Specification Supply voltage 9 VDC to 18 VDC ( MCC plug-in power supply CB-PWR-9 recommended) Supply current 0.75 A max (Note 3) Power jack configuration Two conductor, barrel Power jack barrel diameter 6.3 mm... -
Page 23: Signal I/O Connectors
USB-2020 User's Guide Specifications Signal I/O connectors Table 13. Connector specifications Connector Specification B type Auxiliary connector (J9) 40-pin header connector Compatible cables for the 40-pin C40FF-x auxiliary connector C40-37F-x Compatible accessory products with CIO-MINI40 the C40FF-x cable... - Page 24 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
