REMOVING THE SIDE CURTAINS, FRONT GRILLE,
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug air conditioner or disconnect power.
2. Remove the air conditioner from the win-
dow.
NOTE: Model ACD052MM is shown.

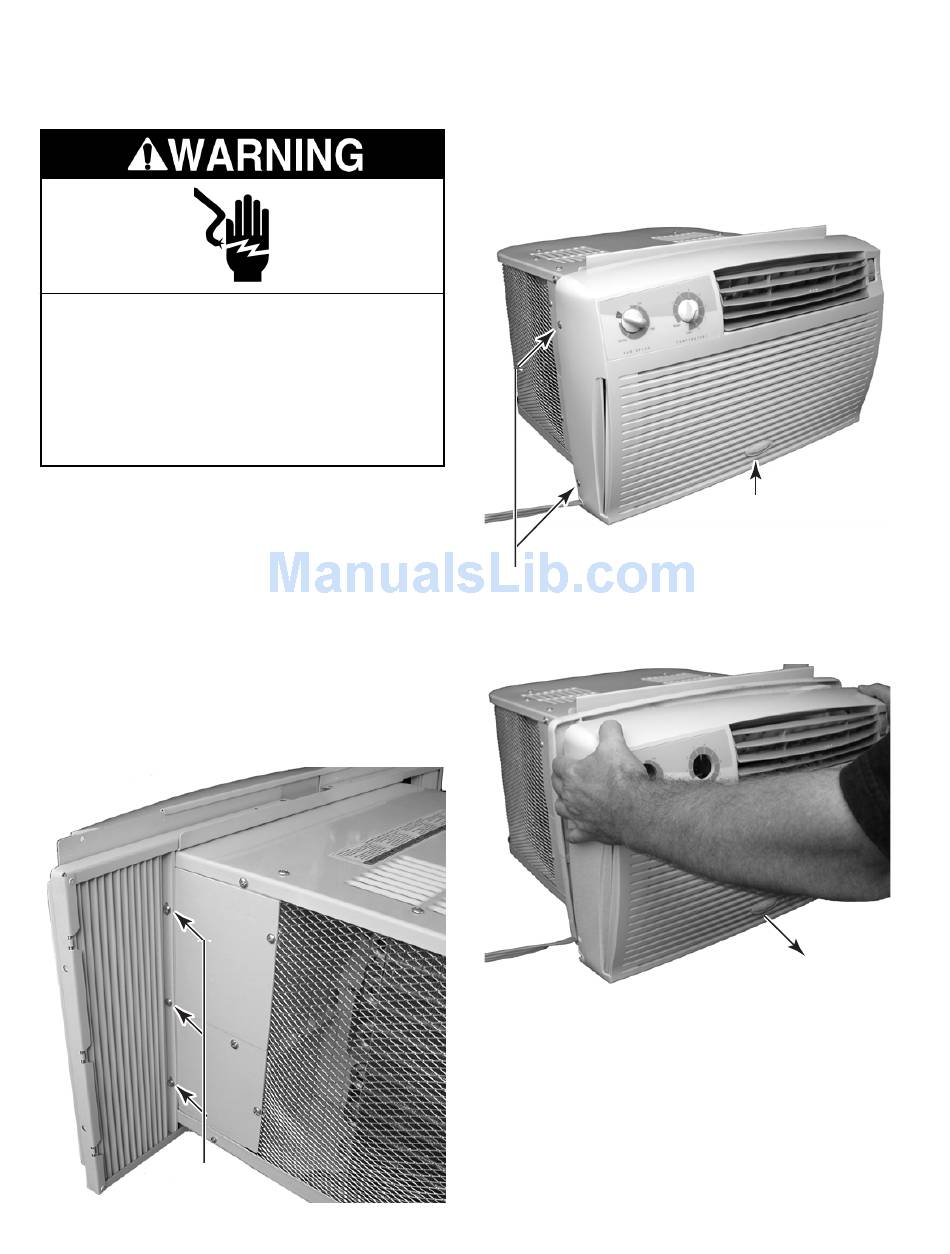

3. To remove the left and right side cur-
tains:
a) Remove the three screws from each of
the side curtains.
b) Slide the curtains out of the top and
bottom guides and remove them.
Side Curtain
Screws
TOP COVER, & SCREEN
3-2
4. To remove the front grille:
a) Remove the four screws (two on each
side) from the grille.
Grille Screws
(2 of 4)
b) Pull the grille forward and remove it.
Front Grille
