Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

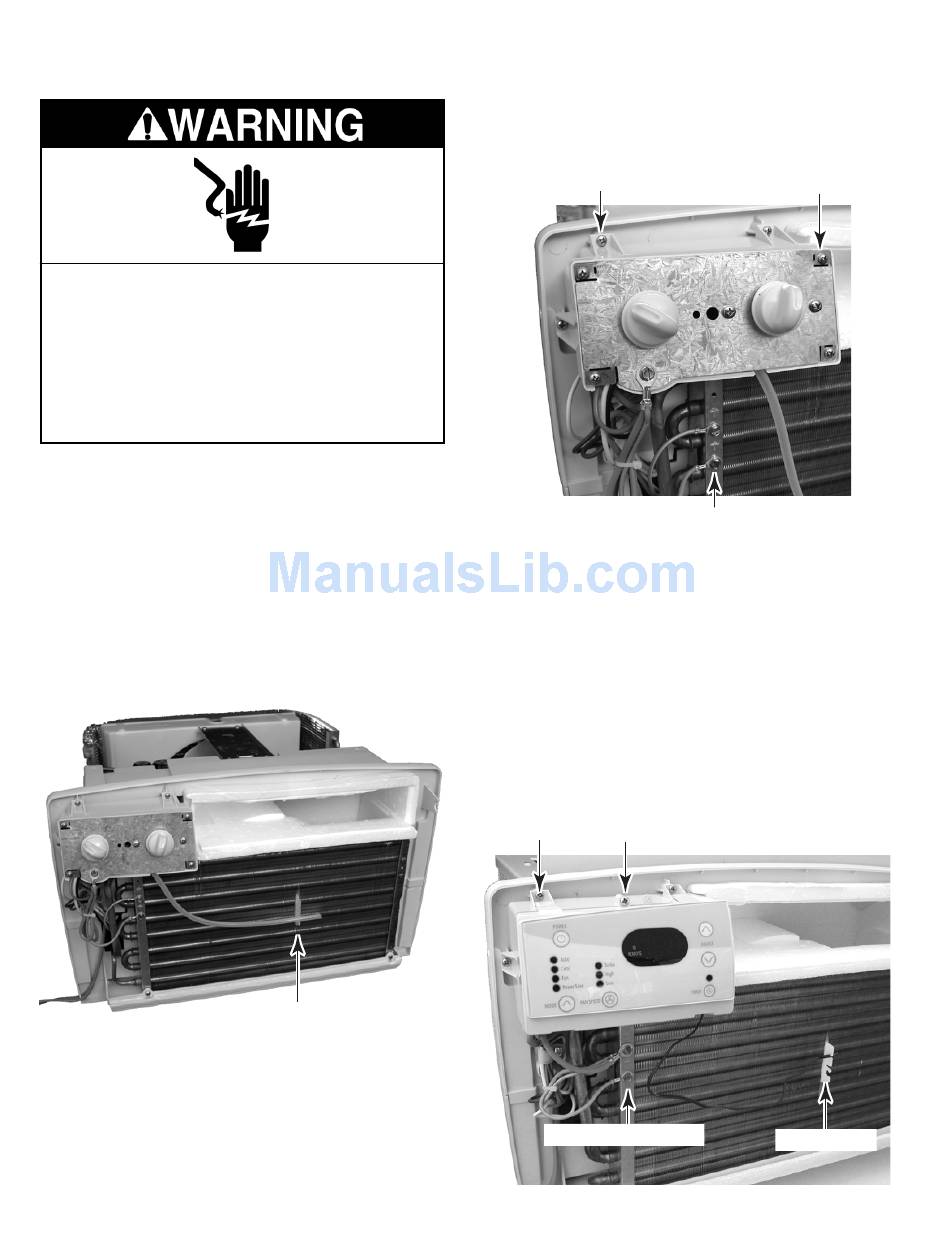

1. Unplug air conditioner or disconnect power.
2. Remove the air conditioner from the win-
dow.
3. Remove the side curtains and the front
grille (see page 3-2 for the procedures).
4. Models ACD052MM, ACM052MM, &
ACM062MM:
a) Unclip the temperature sensor tube from
the sensor holder.
b) Remove the lower screw from the two
green ground wires that are mounted to
the evaporator (see the photo at the top
of the next column).
c) Remove the four screws from the con-
trol mounting plate and allow the as-
sembly to hang off to the side.

REMOVING THE FAN MOTOR

Temperature Sensor Tube
d) Remove the three screws from the con-
trol housing and remove the housing.
Control Housing
Screw (1 of 3)
5. Models ACQ058MM & ACQ062MM:
a) Unclip the thermistor from its holder.
b) Remove the lower screw from the two
green ground wires that are mounted to
the evaporator.
c) Remove the electronic control box as-
sembly mounting screw and allow the
assembly to hang off to the side.
d) Remove the three screws from the con-
trol housing and remove the housing.
Control Housing Electronic Control
Screw (1 of 3) Box Assembly Screw
Ground Wire Screw
3-10
Control Mtg. Plate
Screw (1 of 4)
Ground Wire Screw
Thermistor
