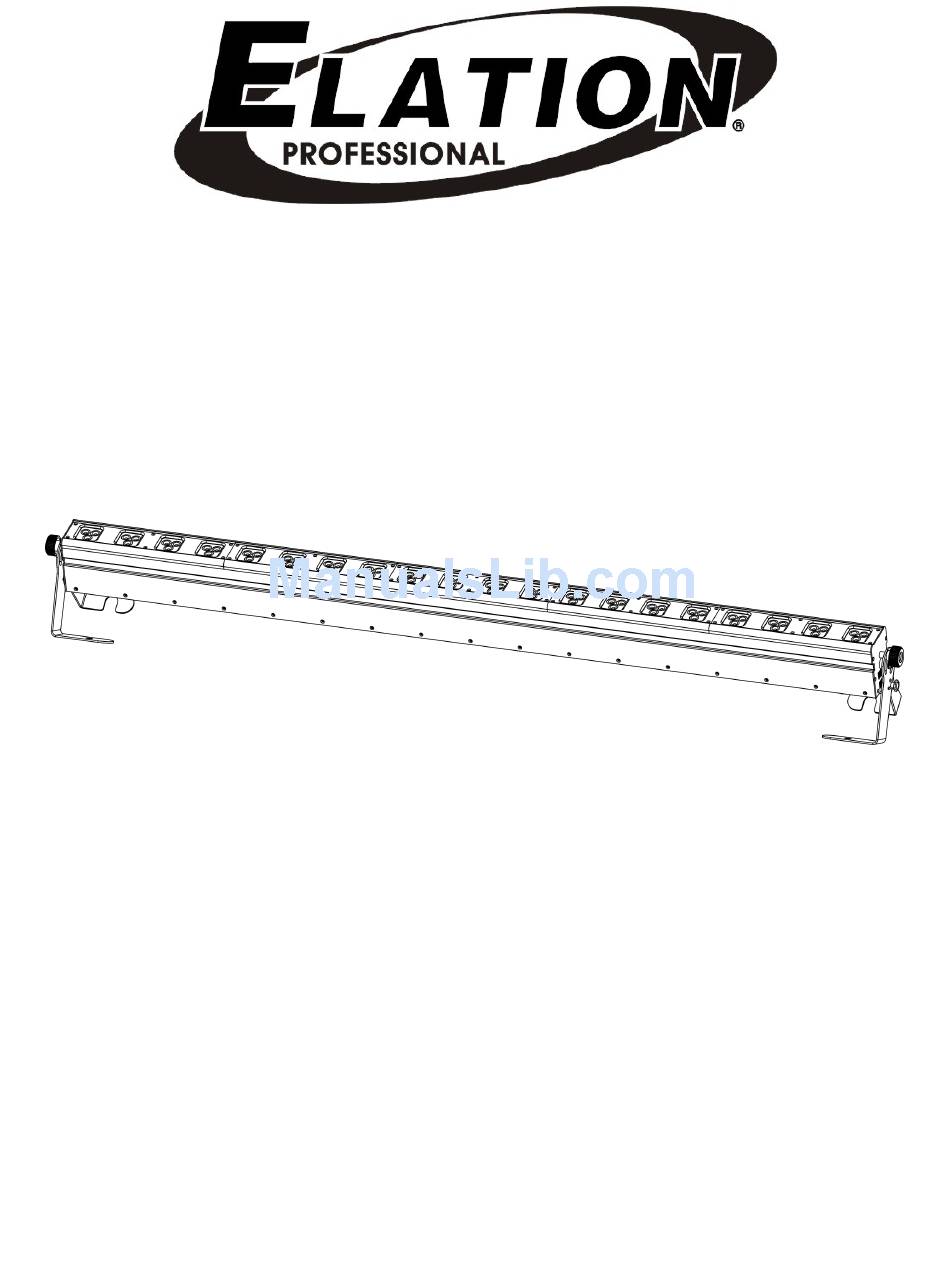

- Page 1 Design LED 60 Strip WA ™ Elation Professional 6122 S Eastern Ave Los Angeles, Ca 90040 www.elationlighting.com Rev. 10/09/07 - visage...
-
Page 2: Table Of Contents
Design LED 60 Strip WA™ TABLE OF CONTENS CONTENTS General Information……………………………………………………………………… 2 a. Introduction………………………………………………………………………. 2 b. Unpacking………………………………………………………..…………..…... 2 Customer Support…………………………………………….………………… 2 d. Warranty Registration……………………………………………………..……. 3 Safety Instructions………………………………………………………..…………. 4 Features…………………………………………………………………………………… 6 General Guidelines………………………………………………………………………. 7 Fixture Overview…………………………………………………………………………. 8 Set-Up and Installation………………………………………………………….……….. 10 a. -
Page 3: General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The Design LED 60 Strip WA,™ has been designed to perform reliably for years when the guidelines in this booklet are followed. -
Page 4: Warranty Registration
Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 60 Strip WA™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. -
Page 5: Safety Instructions
4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 60 Strip WA™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury. - Page 6 Design LED 60 Strip WA™ sure the power cord is never crimped or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. 13. Always disconnect from main power before performing any type of service or any cleaning procedure.
-
Page 7: Features
Design LED 60 Strip WA™ 3. FEATURES • Low power consumption • Minimal heat emission • Maintenance free operation • Equipped with 60 one-watt LEDs: (40 White, 20 Amber) • High power LEDs manufactured by Lumileds, USA • 100,000 hours rated LED life •... -
Page 8: General Guidelines
Design LED 60 Strip WA™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so. -
Page 9: Fixture Overview
Design LED 60 Strip WA™ 5. FIXTURE OVERVIEW 1. Bracket Locking Knob – This knob is used to secure the bracket in place after angle adjustments have been made. 2. Diffusing Lens – This lens is used to both protect the LEDs as well as diffuse the light output. - Page 10 Design LED 60 Strip WA™ as provides a female IEC connector for a power cord. Always replace the fuse with an exact match unless otherwise specified by an authorized Elation Service Technician. Using a fuse other than that specified could seriously damage the unit and will void your manufactures warranty.
-
Page 11: Set-Up And Installation
Design LED 60 Strip WA™ 6. SET-UP AND INSTALLATION Yoke Assembly – Single Unit Operation (DLED 12 Brick shown for illustration purposes only). The device can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. -
Page 12: Mounting Points
Mounting Positions The Design LED 60 Strip WA™ is fully operational in different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). -
Page 13: Securing
Clamp Mounting The Design LED 60 Strip WA™ provides a unique mounting bracket assembly that allows the unit to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple units to rigged together (see the illustration below). -
Page 14: Lens Removal
Design LED 60 Strip WA™ Lens Removal and Replacement The front lens assembly may be removed to change the beam angle or to change the frost filters. The cover is conveniently attached with 1/4” twist lock Philips fasteners. To remove the top cover use a #2 Philips screwdriver and turn the 15 retaining fasteners counter- clockwise. -
Page 15: Understanding Dmx
Design LED 60 Strip WA™ 7. UNDERSTANDING DMX Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): Your fixture and your DMX controller require a standard 3-pin or 5-pin XLR connector for data input and data output (see figure below). Be sure to only use properly rated DMX cables for DMX operation and not standrd audio cables. -
Page 16: Dmx Terminator
2 and 3 of a male XLR connector (DATA + and DATA -). The terminator is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic behavior. -
Page 17: 3-Pin To 5-Pin Conversion
Design LED 60 Strip WA™ be used, these adaptors are readily available at most electric stores. The chart on the next page details a proper cable conversion. Understanding Fixture DMX addressing; All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. - Page 18 Design LED 60 Strip WA™ fixture. In the case of the Design LED 60 Strip WA™, which is a 4 channel fixture (default), you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (4 + 5), and so on.
-
Page 19: Operating Modes
Design LED 60 Strip WA™ 8. OPERATING MODES This fixture can run in two different DMX modes, the following pages will detail the different operating modes as well as how to achieve the different operating modes. DMX Settings: The chart below describes how to access the two different DMX modes. -
Page 20: Dmx Indicator
Design LED 60 Strip WA™ This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. DMX LED Indicator: The fixture has an LED indicator located by the dipswitches. This indicator has two functions as detailed below;... -
Page 21: Dmx Channel Traits
Design LED 60 Strip WA™ 9. DMX CHANNEL TRAITS 4 Channel Mode (default): This chart details a simple layout of the DMX channel assignment in 4-channel mode. CHANNEL 1: White CHANNEL 2: Amber CHANNEL 3: Strobe CHANNEL 4: Master Dimmer ©Elation Professional, Los Angeles Ca. - Page 22 Design LED 60 Strip WA™ DMX channel’s functions and their values (4 Channel Mode - Default): Channel 1 - White: 0-255 White (0 = Black, 255 = 100% White) Channel 2 - Amber: 0-255 Amber (0 = Black, 255 = 100% Amber)
-
Page 23: 2-Channel Mode
Design LED 60 Strip WA™ 2 Channel Mode (user setting via dipswitch 12): This chart details a simple layout of the DMX channel assignment in 2-channel mode. CHANNEL 1: White CHANNEL 2: Amber DMX channel’s functions and their values (2 Channel Mode):... -
Page 24: Dmx Dipswitch Reference Chart
Design LED 60 Strip WA™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 25: Cleaning And Maintenance
Design LED 60 Strip WA™ 10. CLEANING AND MAINTENANCE The consider the following point during normal service and inspection: 1. Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall. -
Page 26: Warranty
® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or ®... - Page 27 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 28: Photometric Data
Design LED 60 Strip WA™ 12. PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 29: Dimensional Drawings
Design LED 60 Strip WA™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 30: Circuit Schematic
Design LED 60 Strip WA™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 31: Technical Specifications
Design LED 60 Strip WA™ TECHNICAL SPECIFICATIONS Power supply: 100~240 AC, 50Hz~60Hz Power consumption: MAX. 140w LED Configuration: 60 1Watt Units (20 x Red, 20 x Green 20 x Blue) Packing dimensions: 174.5 x14.5x 21.5cm Weight: 10.5.Kgs DMX Channels: 2 or 4, DMX Channel mode Drive: Standard DMX-512, 3 pole XLR;... - Page 32 Design LED 60 Strip WA™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax www.ElationLighting.com /Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
