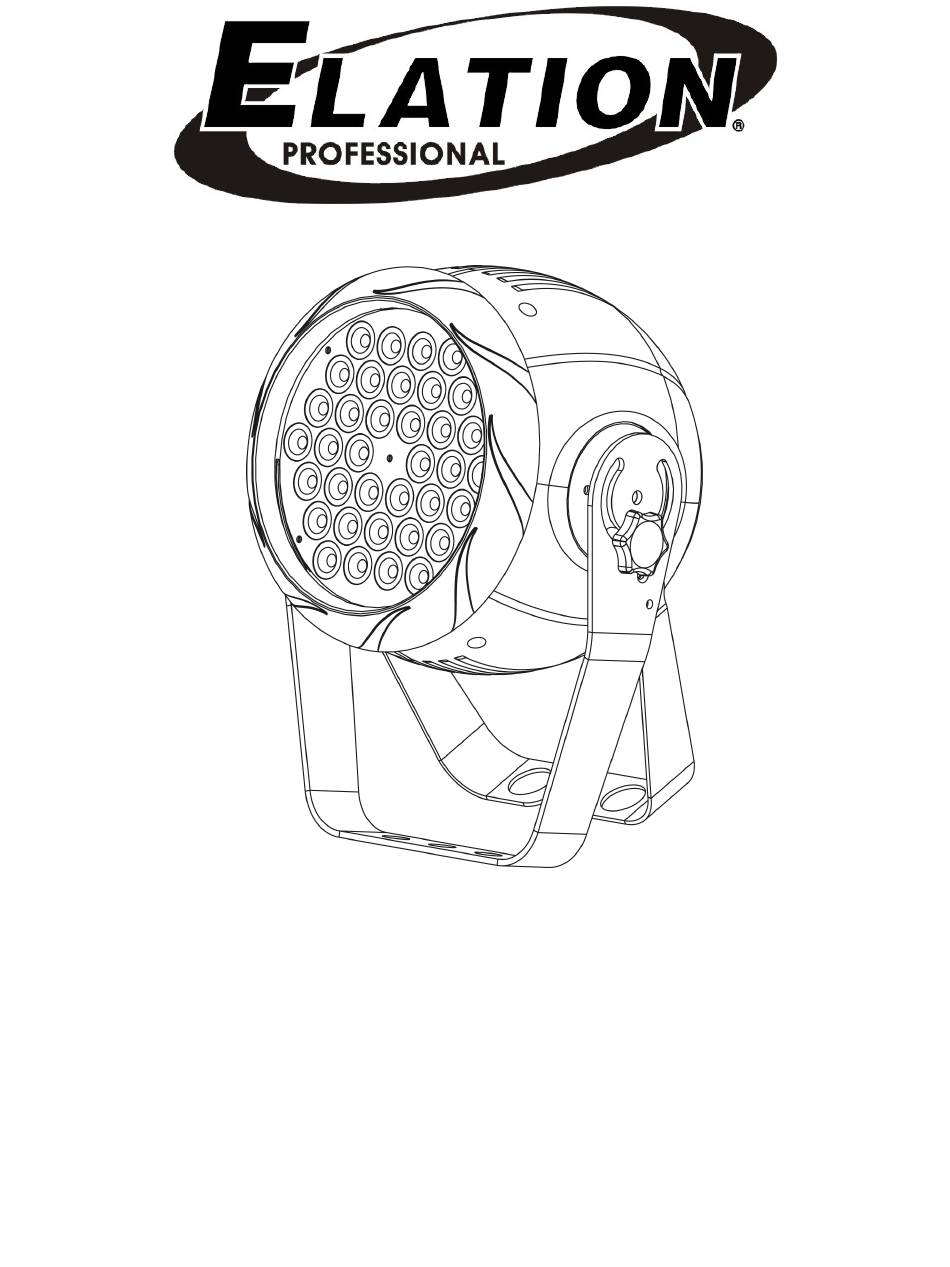

- Page 1 Design LED 36UV Elation Professional™ 4295 Charter Street Los Angeles, Ca 90058 www.elationlighting.com Rev 3/08/07...
- Page 2 DESIGN LED 36UV™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 3: Table Of Contents
DMX Channel Charts………………….…………………………………………20 b. DMX Channel Values……………………..…………………………………….. 20 DMX Dipswitch Chart…………………………………………………………… 22 10. Cleaning and Maintenance……………………………………………………………… 23 11. Warranty…………………………………………………………………………………... 24 12. Photometric Data………………………………………………………………………… 26 13. Dimensional Drawings………………………………………………….……………….. 27 14. Circuit Schematic………...………………………………………………………………. 28 15. Technical Specifications…………………………………………...………….………… 29 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 4: General Information
These instructions contain important information regarding safety during use and maintenance. UNPA C K I N G : Thank you for purchasing the DESIGN LED 36UV™ by Elation Professional®. Every DESIGN LED 36UV™ has been thoroughly tested and has been shipped in perfect operating condition. -
Page 5: Warranty Registration
Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The DESIGN LED 36UV™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 6: Safety Instructions
4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 36UV™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury. - Page 7 Never touch the device during operation! The housing may heat up Never look directly into the light source, as sensitive persons may suffer an epileptic shock. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 8: Features
Sound-controlled via built-in microphone • 3 DMX-channel (default) or 1 DMX-channel operation • DMX-control via standard DMX-controller • Flicker-free operation for television and film • Compact design: fits in 12” box truss • Brilliant light output ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 9: General Guidelines
Most damages are the result of improper operation. Please use the original packaging to transport the fixture in for service. For your own safety, please read this user manual carefully before installing the device. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 10: Fixture Overview
Never block these slots. Keep these slots clean at all times. 2. Exterior Housing – The exterior housing is constructed of rugged polymer material. 3. Hanging Bracket – The unit uses a unique sectional bracket that allows the unit to be ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 11 11. Dipswitch Assembly – These dipswitches are used to set the DMX address, master–slave settings, and other special functions. See the dipswitch chart on page 16 for more information on the dipswitch functions. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 12: Mounting And Installation
0,5m Mounting The Design LED 36UV™ is fully operational in three different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface (see illustration below). Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). -
Page 13: Rigging Points
When mounting this fixture to truss be sure to secure an appropriately rated clamp to the hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an added safety measure be sure to attach at least one properly rated safety cable to the ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 14: Securing
DESIGN LED 36UV™ fixture. See illustration on next page. Securing the Design LED 36UV™ Regardless of the rigging option you choose for your Design LED 36UV™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. -
Page 15: Understanding Dmx
XLR input and output connectors. Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto ©Elation Professional, Los Angeles Ca. -
Page 16: Dmx Terminator
2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic behavior. -
Page 17: 3-Pin To 5-Pin Conversion
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number you have set, based on the quantity of control channels (DMX channels) of each fixture. That means changing the settings of one channel will only affect the selected ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 18 DESIGN LED 36UV™ fixture. In the case of the Design LED 36UV™, which is a 3 channel fixture, you should set the starting DMX address of the first unit to 1, the second unit to 4 (3 + 1), the third unit to 7 (3 + 4), and so on.
-
Page 19: Operating Modes
DESIGN LED 36UV™ 8. OPERATING MODES NOTE: The Design LED 36UV contains a total of 12 dipswitches. Only use dipswitches 1~9 to set the DMX address. Dipswitches 10~12 are used for special functions that are explained below. Dipswitch 12: Mode Selection - When in the “OFF” position the fixture functions in default mode, which is 3 DMX channels. - Page 20 This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 21: Dmx Channel Traits
Channel 1 - Intensity: 0-255 Dimming 0%~100% Channel 2 - Internal Programs: 0-10 No function 11-40 Internal program 1 41-70 Internal program 2 71-100 Internal program 3 101-130 Internal program 4 131-160 Internal program 5 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 22 128-159 Pulse effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) DMX Mode 2: 1 Channel Mode (User Selectable) Channel 1 - Intensity: 0-255 Dimming 0%~100% ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 23: Dmx Dipswitch Chart
DESIGN LED 36UV™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 24: Cleaning And Maintenance
There are no user serviceable parts inside this fixture with the exception of the lamp. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. -
Page 25: Warranty
® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or ®... - Page 26 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 27: Photometric Data
DESIGN LED 36UV™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 28: Dimensional Drawings
DESIGN LED 36UV™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 29: Circuit Schematic
DESIGN LED 36UV™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 30: Technical Specifications
Strobe: Electronic Strobe 0~10fps Lamp Life: 100,00 hours rated lamp life Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 31 DESIGN LED 36UV™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 32 DESIGN LED 36UV™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax www.ElationLighting.com /Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
