Design LED 60 Strip
Elation Professional™
4295 Charter Street
Los Angeles, Ca 90058
www.elationlighting.com
Rev. 01/29/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Elation LED 60

Summary of Contents for Elation LED 60

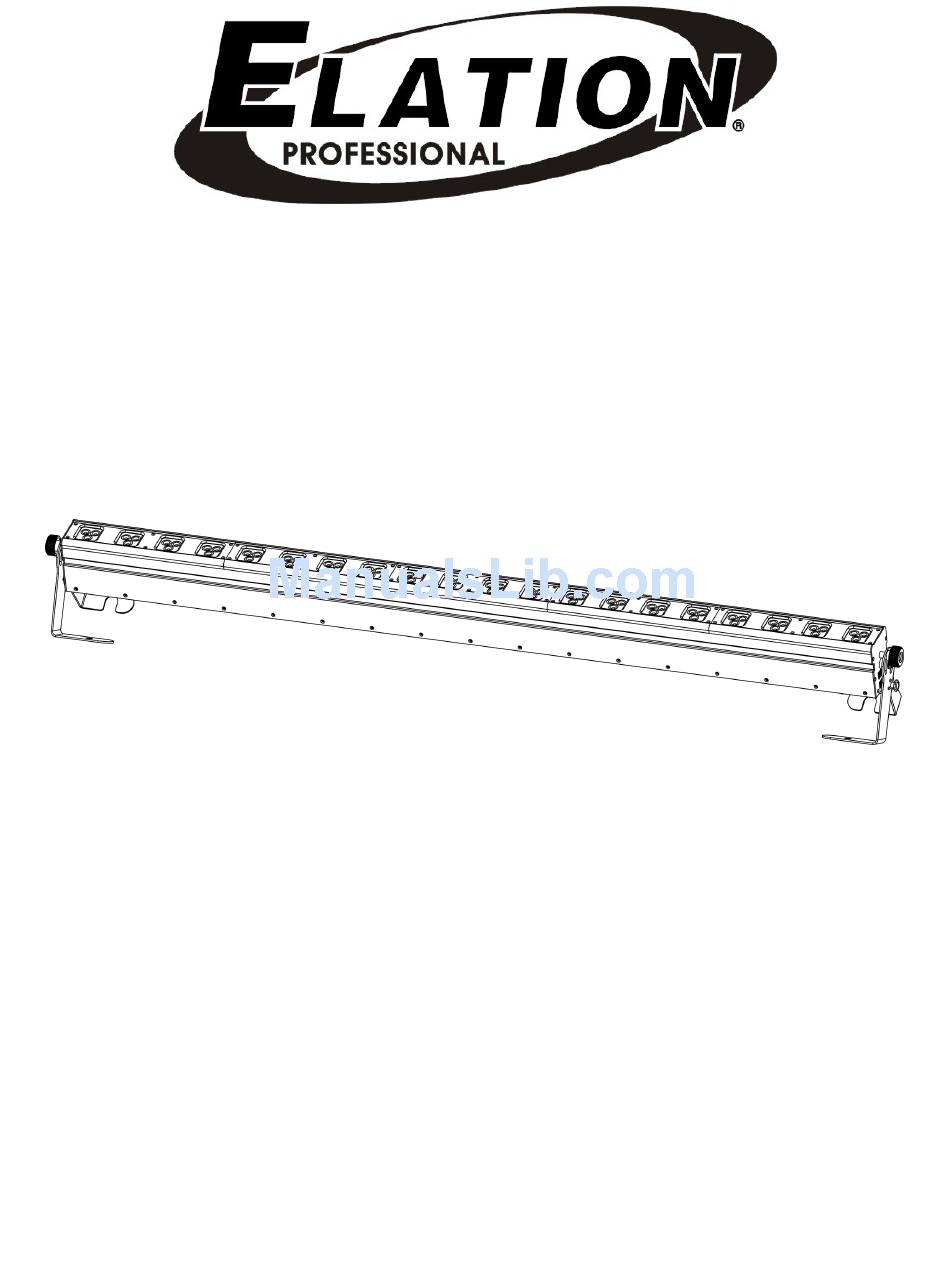

  • Page 1 Design LED 60 Strip Elation Professional™ 4295 Charter Street Los Angeles, Ca 90058 www.elationlighting.com Rev. 01/29/07...

  • Page 2: Table Of Contents

    15-Channel Mode…..…………………………………………………………… 26 d. DMX Dipswitch Reference Chart……………………………………………… 29 10. Cleaning and Maintenance……………………………………………………………… 30 11. Warranty…………………………………………………………………………………... 31 12. Photometric Data………………………………………………………………………… 33 13. Dimensional Drawings………………………………………………….……………….. 34 14. Circuit Schematic………...………………………………………………………………. 35 15. Technical Specifications…………………………………………...………….………… 36 ©Elation Professional, Los Angeles Ca. TABLE OF CONTENS www.ElationLighting.com...

  • Page 3: General Information

    These instructions contain important information regarding safety during use and maintenance. UNPA C K I N G : Thank you for purchasing the Design LED 60 Strip™ by Elation Professional®. Every Design LED 60 Strip™ has been thoroughly tested and has been shipped in perfect operating condition.
  • Page 4 Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 60 Strip™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 5: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 60 Strip™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 6 Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims. as sensitive persons may suffer an epileptic shock. ©Elation Professional, Los Angeles Ca. Never touch the device during operation! The housing may heat up Never look directly into the light source, DESIGN LED 60 Strip™...

  • Page 7: Features

    6 DMX-channel • Flicker-free operation for television and film • Compact design: fits in 12” box truss • Brilliant light output • Linkable power supply (in and out power connectors) up to 8 units. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 8: General Guidelines

    DESIGN LED 60 Strip™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so.

  • Page 9: Fixture Overview

    5. DMX Output Jack – This jack is used to send an incoming DMX signal to the next fixture in the DMX chain via a female, 3-pin or a 5-pin XLR jack. 6. Power Output Jack – Use this jack to jump power to another Design LED 60 Strip.™...
  • Page 10 See the dipswitch chart on page 16 for more information on the dipswitch functions. 10. Hanging Bracket – The unit uses a unique sectional bracket that allows the unit to be hung, mounted, or stood straight up. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 11: Mounting And Installation

    To avoid injury, never stand directly below the device when mounting, removing, or servicing the fixture. Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217 for proper installation in Europe To ensure proper installation, only qualified staff should attempt installation. Mounting points ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 12 Mounting The Design LED 60 Strip™ is fully operational in three different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). When clamp mounting;...
  • Page 13 Clamp Mounting The Design LED 60 Strip™ provides a unique mounting bracket assembly that allows the unit to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple units to rigged together (see the illustration below).

  • Page 14: Securing

    See illustration below. Securing the Design LED 60 Strip™ Always secure your fixture with a safety cable when suspend- ing the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above. Be sure to only use the designated rigging point for a safety cable.

  • Page 15: Understanding Dmx

    3-pin XLR input of the moving head (Please refer to the diagram below.). You can chain multiple moving heads together through serial linking. The cable needed should be two conductor, shielded cable with XLR input and output connectors. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 16: Dmx Terminator

    DESIGN LED 60 Strip™ Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™.

  • Page 17: Understanding Dmx Addressing

    DESIGN LED 60 Strip™ Understanding Fixture DMX addressing; All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent out from the DMX controller.
  • Page 18 DESIGN LED 60 Strip™ In the case of the Design LED 60 Strip™, which is a 15 channel fixture (default), you should set the starting DMX address of the first unit to 1, the second unit to 16 (15 + 1), the third unit to 31 (15 + 16), and so on.

  • Page 19: Operating Modes

    Dipswitch 1 & 2 off, the red value is 0 Dipswitch 1 is on and dipswitch 2 is off, the red value is 60 Dipswitch 1 is off and dipswitch 2 is on, the red value is 125 ©Elation Professional, Los Angeles Ca. LED control LEDs...
  • Page 20 The program speed can be adjusted using dipswitches 8 and 9: Speed Slow (1.1s between scenes) Medium (0.6s between scenes) Fast (0.2s between scenes) Very fast (0.1s between scenes) ©Elation Professional, Los Angeles Ca. Dipswitch #8 www.ElationLighting.com Dipswitch #9...
  • Page 21 Please note that this will override all manual settings regardless of dipswitch positions. This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. ©Elation Professional, Los Angeles Ca. Blue Speed Speed ON Blue Green Green www.ElationLighting.com...

  • Page 22: Dmx Traits

    DESIGN LED 60 Strip™ 9. DMX CHANNEL TRAITS 6 Channel Mode: This chart details a simple layout of the DMX channel assignment in 6- channel mode. The chart traits will vary slightly for 63-channel, 60-chennel, and 15-channel operation, as those modes use more RGB channels for more precise control.
  • Page 23 221-255 Internal program 8 Channel 5 - Strobe: No function 1~95 Strobe effect slow to fast 96-127 No function 128-159 Pulse effect in sequences 160-191 No function 192-223 Random strobe effect slow to fast 224-255 No function ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 24 This channel has two functions depending on the operating mode. When running the built-in Programs this channel will control the program speed. 0-255 Dimming (0%-100%) ~ Normal Operation 0-255 Speed (min to max) ~ When running built-in programs on channel 4 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 25 DESIGN LED 60 Strip™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 26: Cleaning And Maintenance

    There are no user serviceable parts inside this, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 27: Warranty

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional shipping charges only to a designated point within the United States.
  • Page 28 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

  • Page 29: Photometric Data

    DESIGN LED 60 Strip™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 30: Dimensional Drawings

    DESIGN LED 60 Strip™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 31: Circuit Schematic

    DESIGN LED 60 Strip™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 32: Technical Specifications

    Lamp Life: Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. 90~260v AC, 50Hz~60Hz MAX 140w 60 1Watt Units (20 x Red, 20 x Green 20 x Blue) 174.5 x14.5x 21.5cm...
  • Page 33 DESIGN LED 60 Strip™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 34 DESIGN LED 60 Strip™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax www.ElationLighting.com /Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
