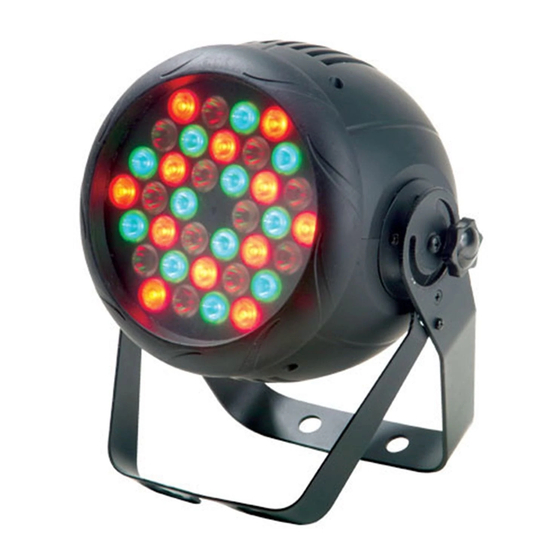

Design LED 36
Elation Professional™
4295 Charter Street
Los Angeles, Ca 90058
www.elationlighting.com
Rev. 11/17/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Design LED 36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation Design LED 36

Summary of Contents for Elation Design LED 36

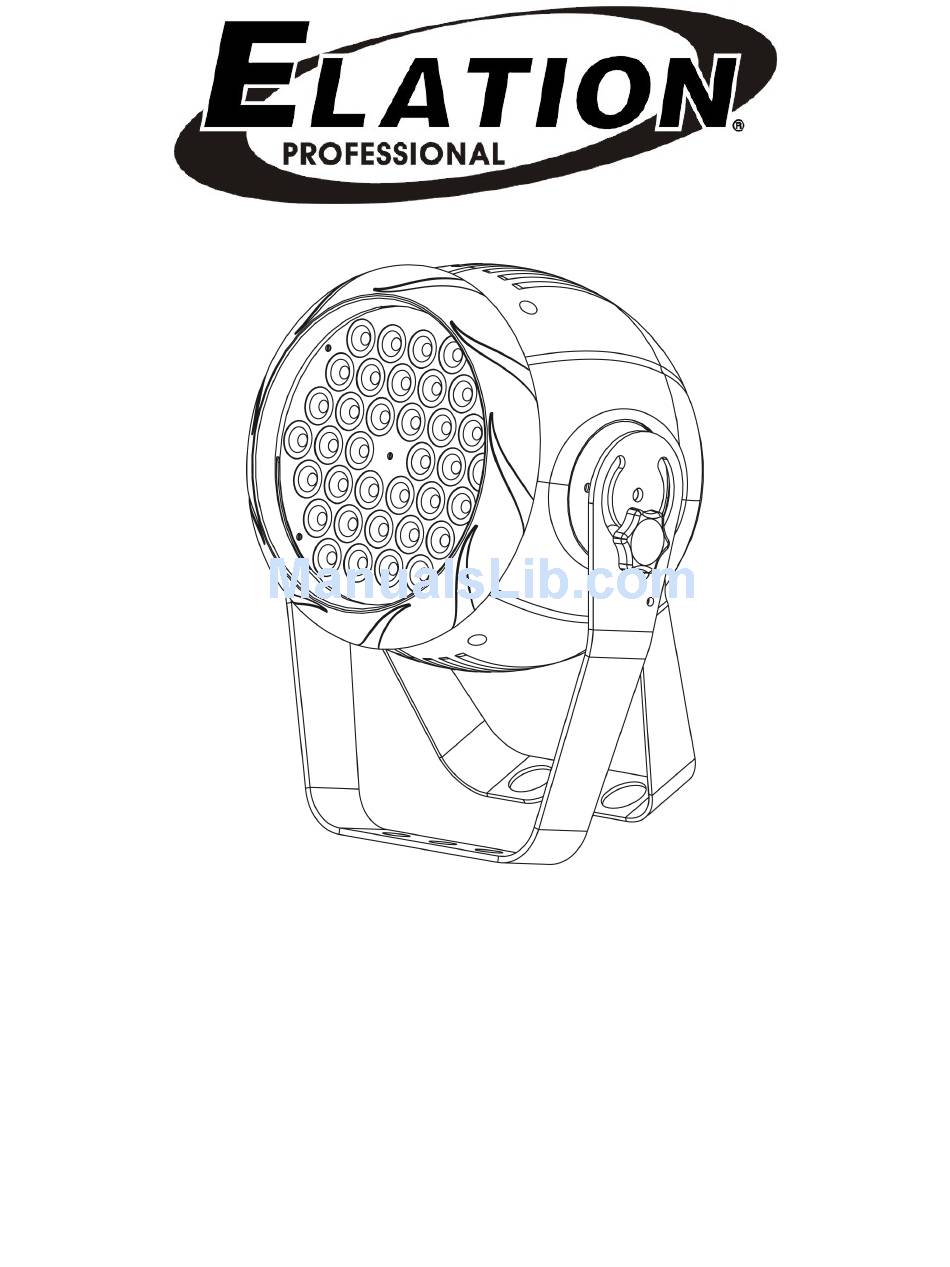

  • Page 1 Design LED 36 Elation Professional™ 4295 Charter Street Los Angeles, Ca 90058 www.elationlighting.com Rev. 11/17/06...
  • Page 2 DESIGN LED 36™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 3: Table Of Contents

    DMX Channel Values (3 Channel Mode)…………………………………….. 21 DMX Dipswitch Chart…………………………………………………………… 23 10. Cleaning and Maintenance……………………………………………………………… 24 11. Warranty…………………………………………………………………………………... 25 12. Photometric Data………………………………………………………………………… 27 13. Dimensional Drawings………………………………………………….……………….. 28 14. Circuit Schematic………...………………………………………………………………. 29 15. Technical Specifications…………………………………………...………….………… 30 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 4: General Information

    INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The DESIGN LED 36,™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.

  • Page 5: Warranty Registration

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The DESIGN LED 36™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 36™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 7 Never touch the device during operation! The housing may heat up Never look directly into the light source, as sensitive persons may suffer an epileptic shock. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 8: Features

    Sound-controlled via built-in microphone • 6 DMX-channel or 3 DMX-channel operation • DMX-control via standard DMX-controller • Flicker-free operation for television and film • Compact design: fits in 12” box truss • Brilliant light output ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 9: General Guidelines

    Most damages are the result of improper operation. Please use the original packaging to transport the fixture in for service. For your own safety, please read this user manual carefully before installing the device. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 10: Fixture Overview

    Never block these slots. Keep these slots clean at all times. 2. Exterior Housing – The exterior housing is constructed of rugged polymer material. 3. Hanging Bracket – The unit uses a unique sectional bracket that allows the unit to be ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 11 11. Dipswitch Assembly – These dipswitches are used to set the DMX address, master–slave settings, and other special functions. See the dipswitch chart on page 16 for more information on the dipswitch functions. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 12: Mounting And Installation

    0,5m Mounting The Design LED 36™ is fully operational in three different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface (see illustration below). Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).

  • Page 13: Mounting Points

    When mounting this fixture to truss be sure to secure an appropriately rated clamp to the hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an added safety measure be sure to attach at least one properly rated safety cable to the ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 14: Securing

    DESIGN LED 36™ fixture. See illustration on next page. Securing the Design LED 36™ Regardless of the rigging option you choose for your Design LED 36™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.

  • Page 15: Understanding Dmx

    XLR input and output connectors. Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto ©Elation Professional, Los Angeles Ca.

  • Page 16: Dmx Terminator

    2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 17: 3-Pin To 5-Pin Conversion

    If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number you have set, based on the quantity of control channels (DMX channels) of each fixture. That means changing the settings of one channel will only affect the selected ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 18: Manual Operation

    DESIGN LED 36™ fixture. In the case of the Design LED 36™, which is a 6 channel fixture, you should set the starting DMX address of the first unit to 1, the second unit to 7 (6 + 1), the third unit to 13 (6 + 7), and so on.
  • Page 19 This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 20: Dmx Channel Values (6 Channel Mode)

    DESIGN LED 36™ 8. DMX CHANNEL TRAITS: 6 Channel Mode: CHANNEL 1:Red CHANNEL 2:Green CHANNEL 3:Blue CHANNEL 4: Internal programs: CHANNEL 5:Strobe CHANNEL 6: Dimming (0%-100%) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 21 Channel 5 - Strobe: 0-63 No function 64-95 Strobe effect slow to fast 96-127 No function 128-159 Pulse effect in sequences 160-191 No function 192-223 Random strobe effect slow to fast 224-255 No function ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 22: Dmx Operation

    DESIGN LED 36™ Channel 6 - General dimming 0-255 Dimming (2%-100%) DMX OPERATION: 3 Channel Mode: CHANNEL 1: Red CHANNEL 2: Green CHANNEL 3: Blue ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 23 DESIGN LED 36™ DMX channel’s functions and their values: Channel 1 - Red: 0-255 Red (0-100% Red) Channel 2 - Green: 0-255 Green (0-100% Green) Channel 3 - Blue: 0-255 Blue (0-100% Blue) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 24: Dmx Dipswitch Chart

    DESIGN LED 36™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 25: Cleaning And Maintenance

    There are no user serviceable parts inside this fixture with the exception of the lamp. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer.

  • Page 26: Warranty

    ® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or ®...
  • Page 27 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

  • Page 28: Photometric Data

    DESIGN LED 36™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 29: Dimensional Drawings

    DESIGN LED 36™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 30: Circuit Schematic

    DESIGN LED 36™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 31: Technical Specifications

    Strobe: Electronic Strobe 0~10 Fps Lamp Life: Greater than 50,000 Hours Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 32 DESIGN LED 36™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 33 DESIGN LED 36™ www.ElationLighting.com /Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
