Elation Design LED 36 Technical Specifications

Design LED 36
The Design LED 36 (DLED 36) by Elation Professional is a high output LED color changer equipped with 36 1W
Luxeon LEDs, 12 red, 12 green and 12 blue, featuring brilliant light output and infinite color possibilities. A
standard beam angle of 39° is produced with the light frost filter (304 LUX / 28 FC @ 3M) and 25° beam angle
without the light frost filter. Optional 15° and 45° lens kits are available. The DLED 36 also features built-in macro
channel, 0-100% dimming and a strobe effect of 1-18 flashes per second. The design of the fixture is optimized
providing up to 100,000 hours estimated LED life, low power consumption and minimal heat emissions with a
compact case design the DLED 36 can fit into a 12" x 12" truss easily for truss warmer use. The DLED 36 is fan
cooled and rated IP 20, ideal for indoor applications. This unit operates at 120V/60hz and has a built-in power
supply and DMX control. DMX control is via 3 or 6 channel operation modes and display is via 12 position
binary dip switch. Control data input is via 3-pin XLR connections and rigging includes installed mounting
bracket and safety eye hook. Safety cable and 3-pin data cable are included.
FEATURES
• High output LED color changer
• 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)
• High quality Luxeon LEDs manufactured by Lumileds, USA
• Long Life L.E.D. (rated at 100,000 Hours)
• Brilliant light output, infinite color possibilities
• Strobe-effect with a maximum flash rate of 18fps
• Dimmer intensity from 0%-100%
• Beam angle: 39° with light frost filter. 25° beam angle
with out light frost filter
• 304 LUX / 28 FC @ 3 M
• Compact Design
• Fits into 12" x 12" truss easily for truss warmer use
• Fan cooled
• Built-in power supply and DMX 512 control
• On/off power switch 120v 60hz
• DMX control via 3 or 6 channel operation
• 12 position binary dip switch
• Master/ Slave auto program and music trigger
• Flicker-free operation for television and film
• Low power consumption
• Minimal heat emission

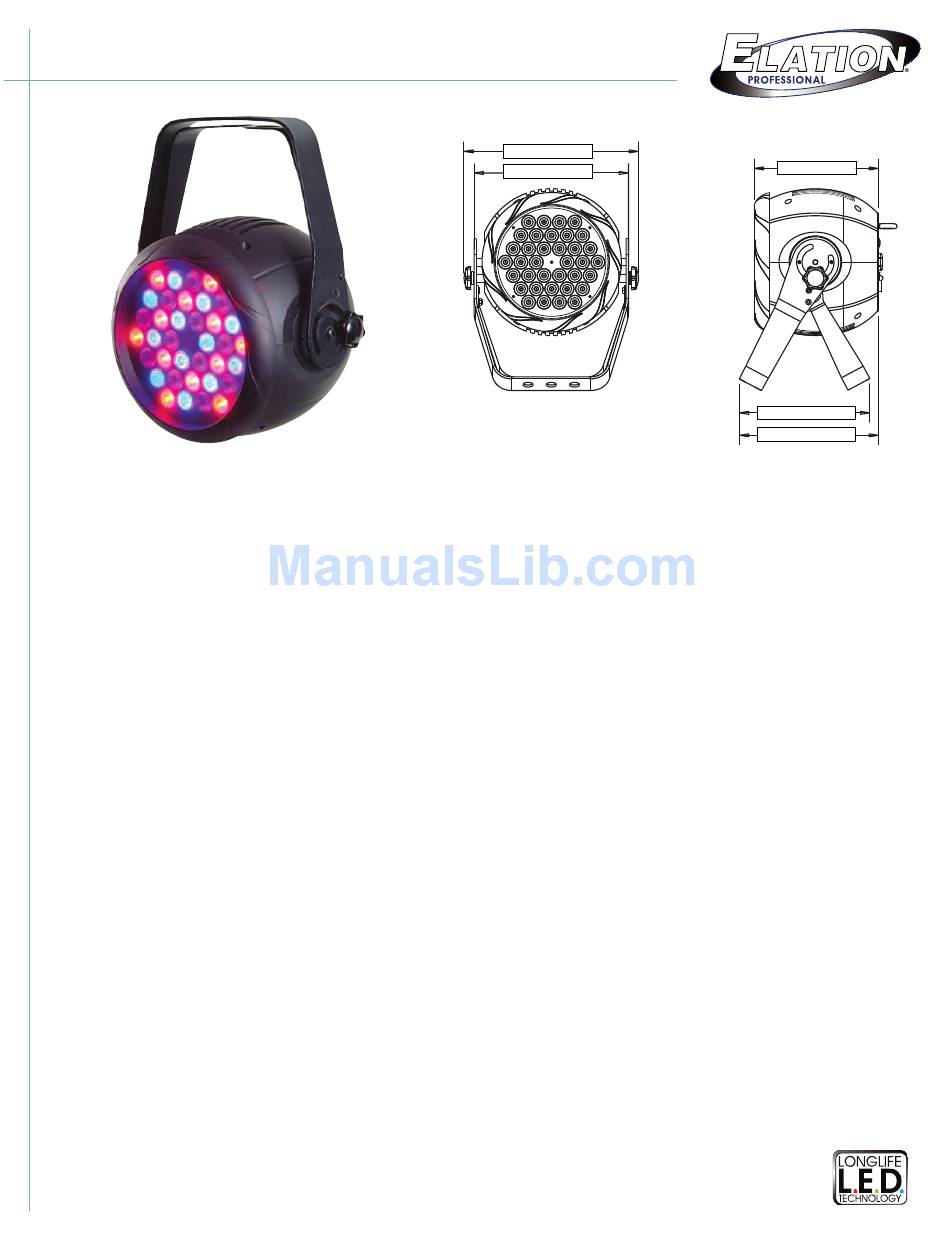

Design LED 36MH Dimensions
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
8.98" / 225.5mm
7.83" / 199mm
TECHNICAL SPECIFICATIONS
• DMX Channels: 3 or 6 DMX operation,
built-in macro channel, RGB
Built-in 3-pin XLR serial data connection
• Control:
• Dimmer: 0 - 100% dimming
• Strobe: Strobe effect 1-18 flashes per second
• IP Rating: IP 20
• Power Supply: Built-in power supply & DMX-512 control
120V / 60hz
• Power Consumption: 50W
• Lamp: 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)
Long-life L.E.D.s
• Lamp Life: 100,000 hrs.
• Dimensions: ( L x W x H ) 7" x 8.75" x 10" /
177.8 x 222.25 x 254 mm
• Weight: 9.5 lbs / 4.31 kg
• Rigging: Mounting bracket and safety I-hook installed,
safety cable & 3-pin data cable included
6.30" / 160mm
6.65" / 169mm
7.05" / 179mm
