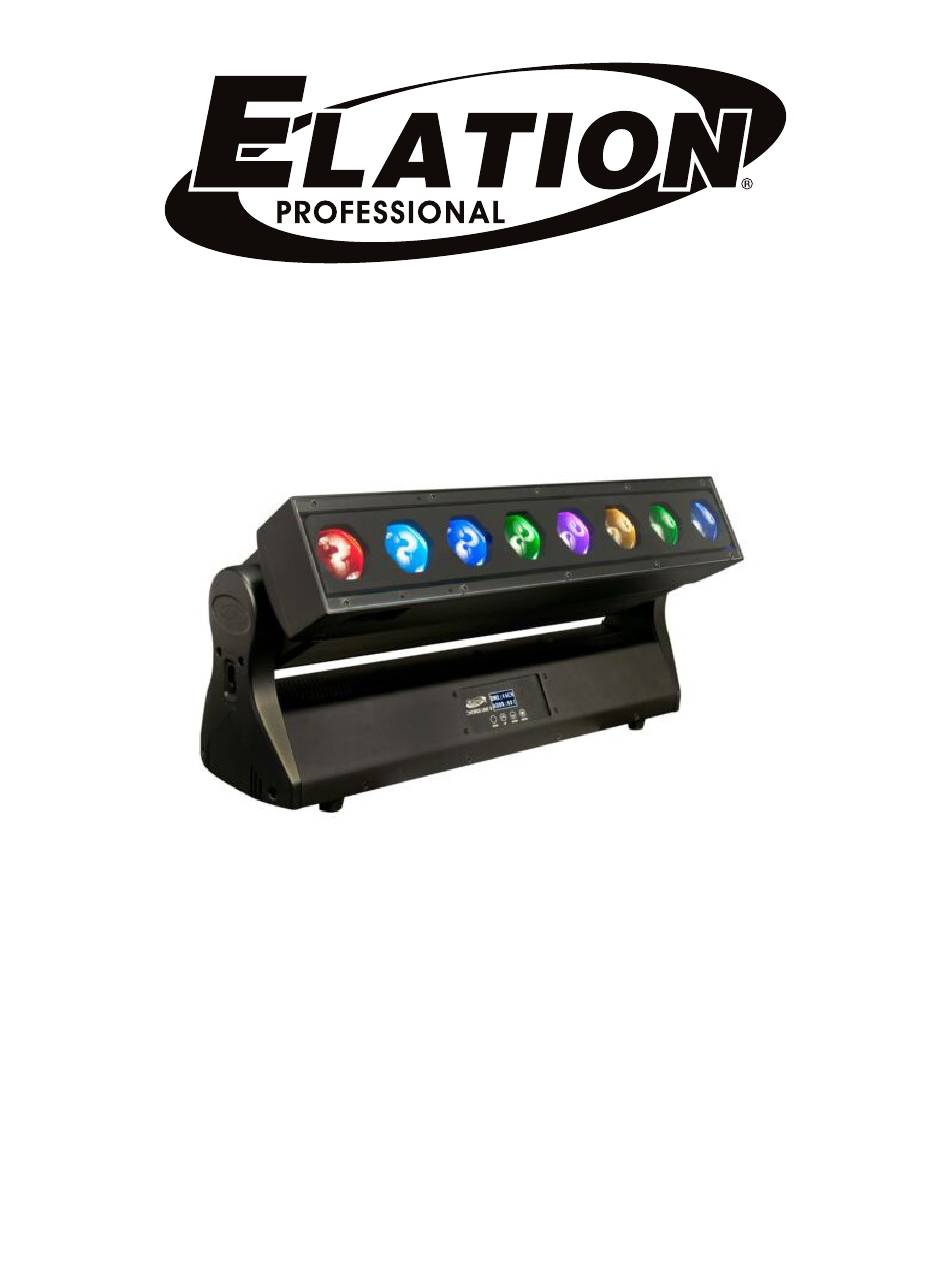

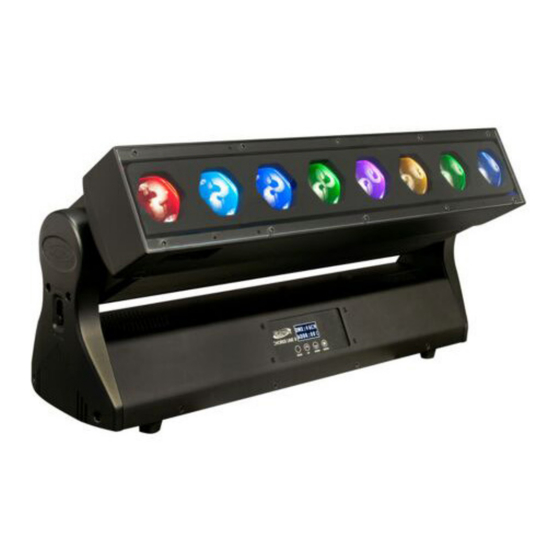

  • Page 1 CHORUS LINE 8 User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty Safety Guidelines Maintenance Guidelines Fixture Overview Installation Instructions System Menu DMX Channel Functions and Values Color Macro Chart Pixel Control Dimmer Modes Software Updates Technical Specifications Dimensional Drawings Optional Accessories | FCC Statement...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions.

  • Page 5: Limited Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accesso- ries, nor for the safe return thereof.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S • DO NOT TOUCH the fixture housing during operation. • Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W 1. LCD Menu Display: MENU, UP, DOWN, ENTER Buttons 2. Tilt Lock 3. Fuse 4. Power In/Out 5. 5pin DMX In/Out 6. RJ45 Ethernet In/Out INCLUDED ITEMS Replacement Lens Covers (x2) Omega Brackets (x2)

  • Page 10: Installation Instructions

    I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 11 I N S TA L L AT I O N I N S T R U C T I O N S CLAMP INSTALLATION The fixture can be placed on a flat surface or truss mounted. When mounting this fixture to a truss, be sure to secure (2) appropriately rated clamps (not included) to the (2) Omega Brackets (included).
  • Page 12 I N S TA L L AT I O N I N S T R U C T I O N S RIGGING Overhead rigging requires extensive experience, including but not limited to: calculating working load limits, understanding the installation material being used, and periodic safety inspection of all installation material and the fixture itself.

  • Page 13: System Menu

    S YS T E M M E N U The fixture features an easy to navigate system menu. The control panel (see image below) is located on the back of the fixture and provides access to the main system menu where all necessary system adjustments are made.
  • Page 14 S YS T E M M E N U ELATION Chorus Line 8 - System Menu Supports Software Versions: 1.09 DMX address set- ADDRESS Set DMX Address 001 - xxx tings Standard 18Ch (16bit) Set DMX channel USER MODE Basic 16Ch (8bit)
  • Page 15 S YS T E M M E N U Standard Stage Architectur Set dimmer curve Theatre Dim Curve mode Stage 2 0s, 0.1s, 0.2s, 0.3s, 0.4s, 0.5s, 0.6s, 0.7s, 0.8s, 0.9s, 1.0s, 1.5s, 2.0s, 3.0s, 4.0s, 5.0s, 6.0s, 7.0s, 8.0s, 9.0s, 10.0s Current value of Chan Value Tilt, ...
  • Page 16 S YS T E M M E N U Display 10 recent Err Info Tilt, ... error messages INFORMATION Display model (continued) Model Info Chorus Line 8 name Software Version Vx.xx Software version Reset M Test Ch Tilt, ... Tilt = xxxx...

  • Page 17: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D VA L U E S ELATION Chorus Line 8 - DMX Traits Supports Software Versions: 1.09 CHANNEL FUNCTION...
  • Page 18 D M X C H A N N E L F U N C T I O N S A N D VA L U E S CHANNEL FUNCTION DEFAULT SNAP Basic VALUES 16Ch 18Ch 46Ch Color Macros, see Color Macros Chart section 000 - 255 of this manual Strobe...
  • Page 19 D M X C H A N N E L F U N C T I O N S A N D VA L U E S CHANNEL FUNCTION DEFAULT SNAP Basic VALUES 16Ch 18Ch 46Ch Dim Modes 000 - 020 Standard 021 - 040 Stage 041 - 060 TV 061 - 080 Architectural...
  • Page 20 D M X C H A N N E L F U N C T I O N S A N D VA L U E S CHANNEL FUNCTION DEFAULT SNAP Basic VALUES 16Ch 18Ch 46Ch Control (continued) 026 - 029 Program 1 030 - 034 Program 2 035 - 039 Program 3 040 - 044 Program 4...

  • Page 21: Color Macro Chart

    C O LO R M A C R O C H A R T VALUES GREEN BLUE WHITE 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036 037 - 040 041 - 044...
  • Page 22 C O LO R M A C R O C H A R T VALUES GREEM BLUE WHITE 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192 193 - 196...

  • Page 23: Pixel Control

    P I X E L C O N T R O L The fixture features pixel control in Extended DMX channel mode. See diagram below, which illustrates the specific pixel mapping order.

  • Page 24: Dimmer Modes

    D I M M E R M O D E S...

  • Page 25: Software Updates

    S O F T WA R E U P D AT E S AN ELATION C-LOADER II CAN BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE VERSION. Please contact Elation Support to order this device, or for further details or information regarding the software updating process.

  • Page 26: Technical Specifications

    T E C H N I C A L S P E C I F I C AT I O N S SOURCE (8) 40W 4-in-1 RGBW LEDs 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • Page 27: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S Specifications and documentation are subject to change without prior written notice.

  • Page 28: Optional Accessories | Fcc Statement

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM DTCCL8 6-Pack Road Case for Chorus Line 8 NARROW CLAMP Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO 5ft (1.5m) 5pin PRO DMX Cable...
  • Page 29 This page intentionally left blank.
