Summary of Contents for Elation 36 PRO

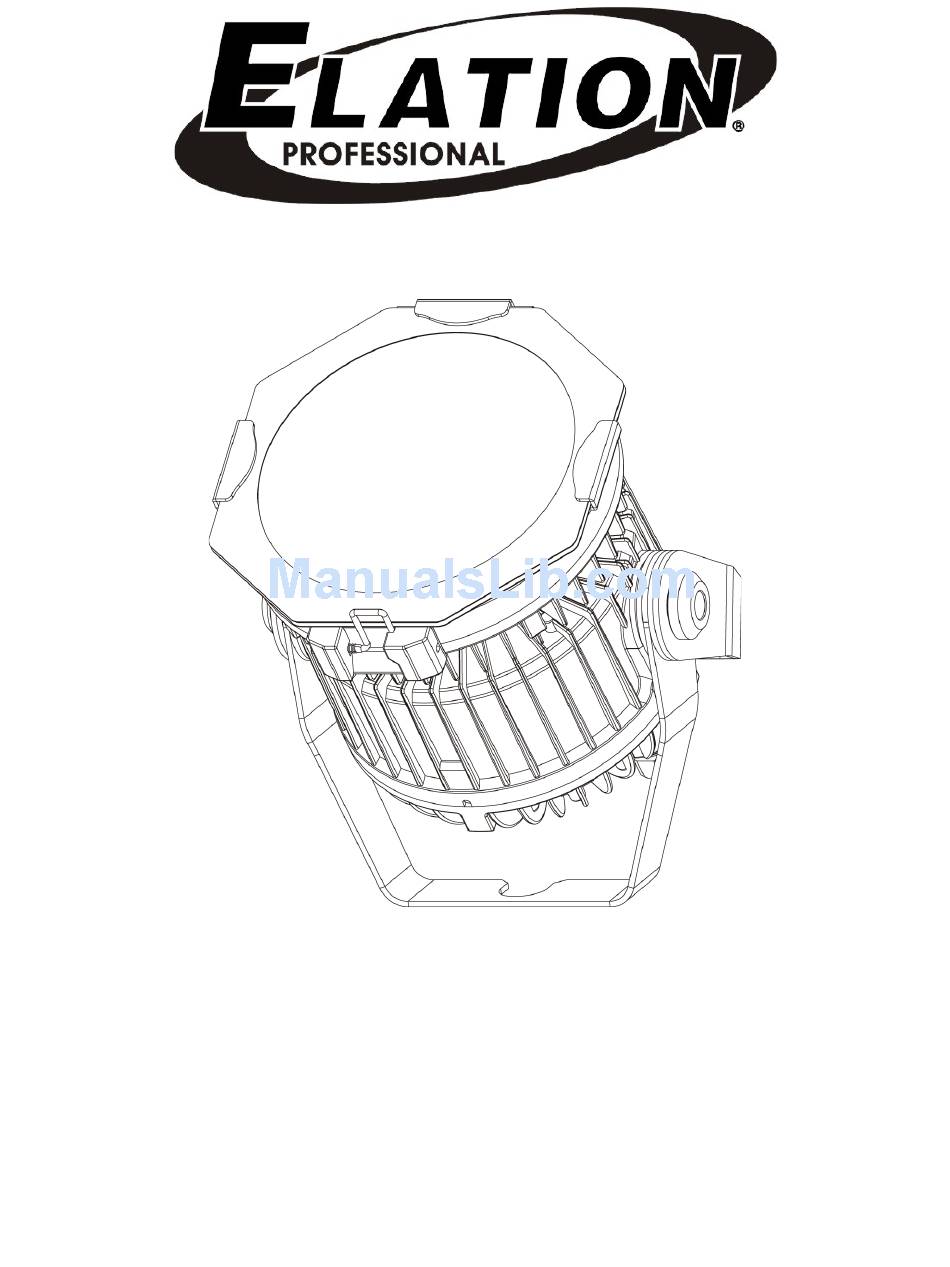

- Page 1 Design LED 36 Pro Elation Professional™ 6122 S. Eastern Ave. Los Angeles, Ca 90040 www.elationlighting.com Rev. 10/04/2009 – visage Ver. 1.4...
- Page 2 DESIGN LED 36 Pro™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 3: Table Of Contents
6-Channel Mode…..……………………………………………..……………… 23 11. Lens Replacement……… ……………………………………………………………… 25 12. Cleaning and Maintenance……………………………………………………………… 26 13. Warranty…………………………………………………………………………………... 27 14. Photometric Data………………………………………………………………………… 29 15. Dimensional Drawings………………………………………………….……………….. 32 16. Circuit Schematic………...………………………………………………………………. 33 17. Technical Specifications…………………………………………...………….………… 34 ©Elation Professional, Los Angeles Ca. TABLE OF CONTENS www.ElationLighting.com... -
Page 4: General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The Design LED 36 Pro™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 36 Pro™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.
-
Page 6: Safety Instructions
6. For safe operation, follow the Installation guide described in chapter six of this manual. Operating the Design LED 36 Pro™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury. - Page 7 16. Please be aware that damages caused by modifications to the device are not subject to warranty. Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 8: Features
DMX-control via standard DMX-controller • Power Switching Electronic Power Supply 100v~240v • Flicker-free operation for television and film • Compact design: fits in 12” box truss • 0%~100% Dimming (two dimming options; linear & standard) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 9: General Guidelines
DESIGN LED 36 Pro™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so. -
Page 10: Fixture Overview
DESIGN LED 36 Pro™ 5. FIXTURE OVERVIEW 1. LED Lens Assembly – The lens assembly may be user replaced in the event repair is needed or a different beam angle is required. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 11 2) Used to secure a mounting clamp for truss mounting. 10. Main Power Input Lead – This lead is the main power input lead. DMX In Lead – XLR male lead. This lead is the main DMX input lead. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 12: Mounting And Installation
Improper installation can result in bodily injury. Be sure a qualified electrician performs all electrical Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. ©Elation Professional, Los Angeles Ca. CAUTION! connections. www.ElationLighting.com... -
Page 13: Clamp Mounting
See the image below. Clamp Mounting The Design LED 36 Pro™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above). -
Page 14: Securing
See illustrations below. Securing the Design LED 36 Pro™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above. -
Page 15: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The Design LED 36 Pro™ can be controlled via DMX-512 protocol. The Design LED 36 Pro™ is a 6-channel DMX fixture. The DMX address is set electronically using the controls on the LCD menu. -
Page 16: Dmx Terminator
DESIGN LED 36 Pro™ Be sure to follow the above figure when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behavior. -
Page 17: Fixture Dmx Addressing
DESIGN LED 36 Pro™ terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. - Page 18 In the case of the Design LED 36 Pro™, which is up to a six channel fixture (default may also be set to three or four channels), you should set the starting DMX address of the first unit to 1, the second unit to 7 (6 + 1), the third unit to 13 (6 + 7), and so on.
-
Page 19: Fixture Menu
LED Control Panel: The control panel located on the base of the fixture allows you to access the main menu and make all necessary adjustments to the Design LED 36 Pro™. During normal operation, tapping the “MENU” key once will access the fixture’s main menu. - Page 20 With this function you can display the DMX 512 value of each channel. The display will automatically detail the changing DMX values as they are received from the ©Elation Professional, Los Angeles Ca. Dimmer Mode Status while there is no DMX...
- Page 21 The display will automatically detail the changing DMX values as they are received from the controller. This function is “off” by default. “FLIP” – This function will flip the display readout by a 180˚ allowing for better ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 22 This function is used to restore the factory settings of the device. All settings will be set back to the default values (shaded). Any edited scenes will be lost. <VEr> Software Version This function will display the current firmware version. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 23 For detailed instructions on how to complete this task please see Section 11/ Page 28. 8.5.1 Select program – This function allows the user to select one of ten of the user defined built-in programs. This program is then accessed in “Function Mode” under “Program Run.” ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 24 8.5.4 Rec Controller - The Design LED 36 Pro features an integrated DMX recorder. Pre-programmed scenes can be transmitted to the fixture via any DMX compliant controller.
-
Page 25: Dmx Addressing
4. “Address via DMX” is the function that turn the RDMX function on and off. Press ENTER and be sure the function is turned on. 5. Press the UP button to display “ON” to activate this function, or “OFF” to deactivate this function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 26 420, set channel 1 to a value of “7,” channel 2 to "8" and channel 3 to "164" (256+164=420). 4. Wait for approximately 20 seconds for the unit to complete the address reset function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 27: Operation
10. OPERATION Operating Modes: The Design LED 36 Pro™ can operate in six different modes. This next section will detail the differences in the operating modes. • Auto Program Mode (Master) - The fixture will chase through the built-in programs, sending a DMX control signal to all other fixtures connect via DMX cables instruction for a synchronized light show. - Page 28 A DMX controller allows you to create unique programs tailored to your individual needs. The Design LED 36 Pro™ uses up to 6 DMX channels. See page 31 for detailed description of the DMX traits. To control your fixture in DMX mode, follow the set-up procedures on beginning on page 14 as well as the set-up instructions that are included with your DMX controller.
-
Page 29: Working With Built-In Programs
You can repeat the procedure for all functions listed below: “Auto Program” – Allows access to all 6 of the channel’s DMX traits. “Red” – adjust the cyan flag value ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 30 “ENTER” button to add a scene to the program. Tapping the “Enter” button will automatically lock the selected scene into the programs’ memory. Repeat the process until all the desired scenes have been added to the program. Each program can store a maximum of 64 scenes. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 31 Operation” on page 26 for proper set-up instructions. Select “Alone” when running a single fixture or when multiple fixtures in stand-alone mode. See section 10.1 “Stand-Alone Operation” on page 26 for proper set-up instructions. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 32: Dmx Channel Traits
DESIGN LED 36 Pro™ 12. DMX TRAITS DMX Operation Notes: The fixture will function in DMX mode whenever the unit is receiving a DMX signal. Please note that this will override all manual settings. This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. -
Page 33: 4-Channel Mode
4-Channel mode: In this mode channel one controls all the red LEDs, channel two controls all the green LEDs, channels three controls all the blue LEDs, and channel four-- will control the master dimming level. 4-Channel Mode: The chart below details the DMX channel layout for 4-channel assignment. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 34 Red (0-Black, 255 - 100% Red) Channel 2 - Green: 0-255 Green (0-Black, 255 - 100% Green) Channel 3 - Blue: 0-255 Blue (0-Black, 255 - 100% Blue) Channel 4 - Dimming 0-255 Dimming (0%-100%) ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 35: 6-Channel Mode
0-255 Blue (0-Black, 255- 100% Blue) Channel 4 - Internal programs: 0-10 No function 11-40 Internal program 1 41-70 Internal program 2 71-100 Internal program 3 101-130 Internal program 4 131-160 Internal program 5 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 36 0-255 Dimming (0%-100%) ~ Normal Operation 0-255 Speed (min to max) ~ When running built-in programs on channel 4 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 37: Lens Replacement
DESIGN LED 36 Pro™ 11. LENS REPLACEMENT The Design LED 36 Pro™ comes with a removable front cover that allows the lens assembly to be changed out to achieve different beam angles. The lens cover is held in place by four 5mm Allen screws. To access the lens kit, remove the bard door assembly (if so attached) to access the four 5mm Allen screws, then loosen the screws. -
Page 38: Cleaning And Maintenance
There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 39: Warranty
United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All ®... - Page 40 ® liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional Products ® and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.
-
Page 41: Photometric Data
DESIGN LED 36 Pro™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 42 DESIGN LED 36 Pro™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 43 DESIGN LED 36 Pro™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 44: Dimensional Drawings
DESIGN LED 36 Pro™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 45: Circuit Schematic
DESIGN LED 36 Pro™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 46: Technical Specifications
Lamp Life: Dimensions: Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. 100v~240v / 50Hz~60Hz AC Maximum 150w 36 x 3 Watt (12 x Red, 12 x Green 12 x Blue) 6 Kgs / 15.2Lbs... - Page 47 DESIGN LED 36 Pro™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 48 Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighitng.com Rev. 10/04/2009 – visage Ver. 1.4...
