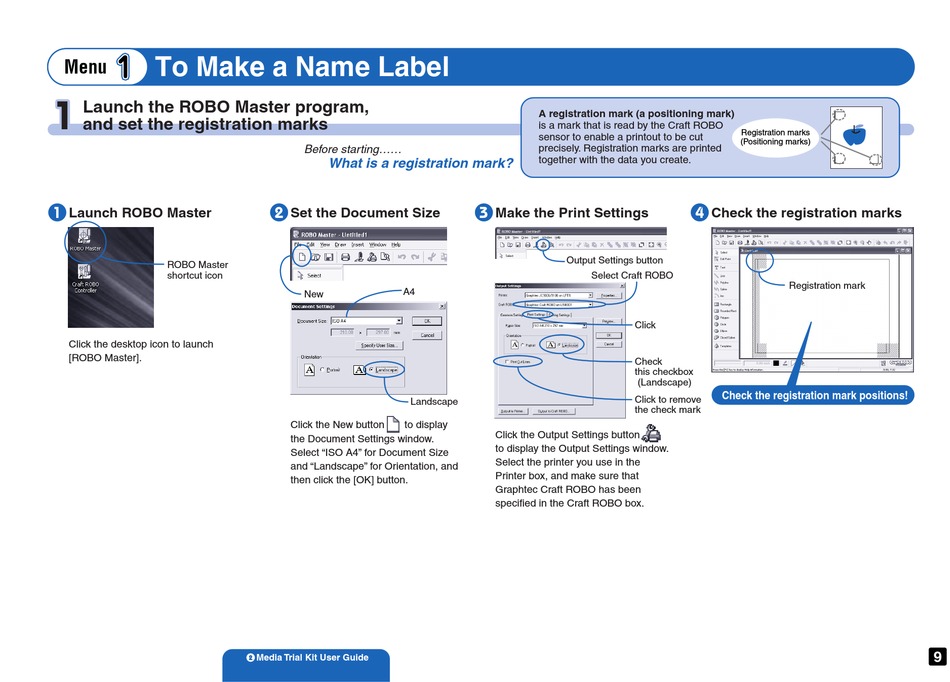

To Make a Name Label
Menu
Launch the ROBO Master program,
1 1
and set the registration marks
1
Launch ROBO Master
ROBO Master
shortcut icon
Click the desktop icon to launch
[ROBO Master].
Before starting......
What is a registration mark?
2
Set the Document Size
A4
New
Landscape
Click the New button to display
the Document Settings window.
Select "ISO A4" for Document Size
and "Landscape" for Orientation, and
then click the [OK] button.
Media Trial Kit User Guide
2
A registration mark (a positioning mark)
is a mark that is read by the Craft ROBO
sensor to enable a printout to be cut
precisely. Registration marks are printed
together with the data you create.
3
Make the Print Settings
Output Settings button
Select Craft ROBO
Click
Check
this checkbox
(Landscape)
Click to remove
the check mark
Click the Output Settings button
to display the Output Settings window.
Select the printer you use in the
Printer box, and make sure that
Graphtec Craft ROBO has been
specified in the Craft ROBO box.
Registration marks
(Positioning marks)
4
Check the registration marks
Registration mark
Check the registration mark positions!
