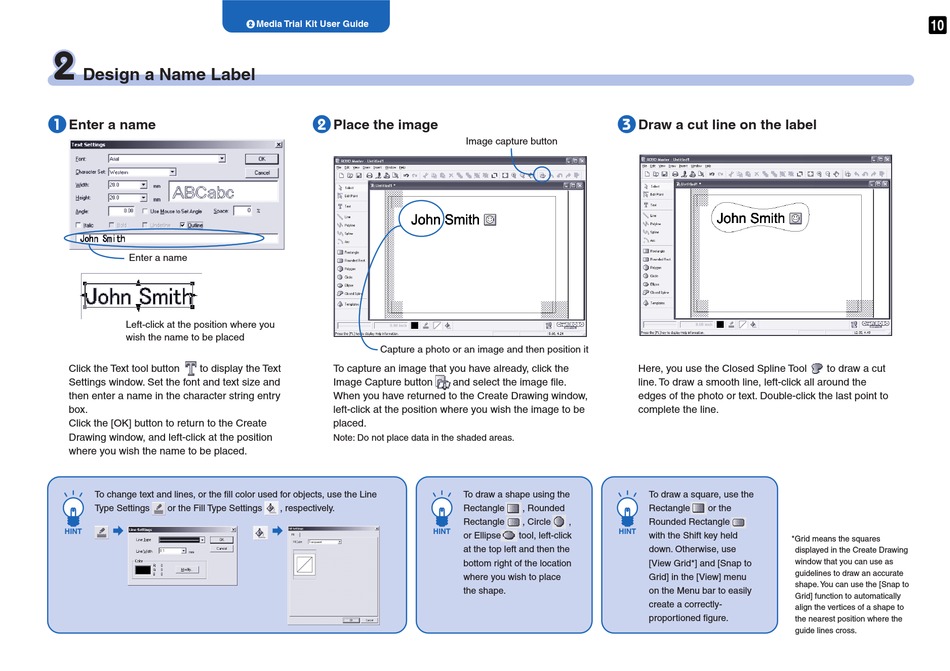

Design a Name Label
1
Enter a name
Enter a name
Left-click at the position where you
wish the name to be placed
Click the Text tool button to display the Text
Settings window. Set the font and text size and
then enter a name in the character string entry
box.
Click the [OK] button to return to the Create
Drawing window, and left-click at the position
where you wish the name to be placed.
To change text and lines, or the fill color used for objects, use the Line
Type Settings or the Fill Type Settings
HINT
Media Trial Kit User Guide
2
2
Place the image
Capture a photo or an image and then position it
To capture an image that you have already, click the
Image Capture button
When you have returned to the Create Drawing window,
left-click at the position where you wish the image to be
placed.
Note: Do not place data in the shaded areas.
, respectively.
Image capture button
and select the image file.
To draw a shape using the
Rectangle , Rounded
Rectangle , Circle ,
HINT
or Ellipse tool, left-click
at the top left and then the
bottom right of the location
where you wish to place
the shape.
3
Draw a cut line on the label
Here, you use the Closed Spline Tool
line. To draw a smooth line, left-click all around the
edges of the photo or text. Double-click the last point to
complete the line.
To draw a square, use the
Rectangle or the
Rounded Rectangle
HINT
with the Shift key held
*Grid means the squares
down. Otherwise, use
displayed in the Create Drawing
window that you can use as
[View Grid*] and [Snap to
guidelines to draw an accurate
Grid] in the [View] menu
shape. You can use the [Snap to
on the Menu bar to easily
Grid] function to automatically
create a correctly-
align the vertices of a shape to
proportioned figure.
the nearest position where the
guide lines cross.
10
to draw a cut
