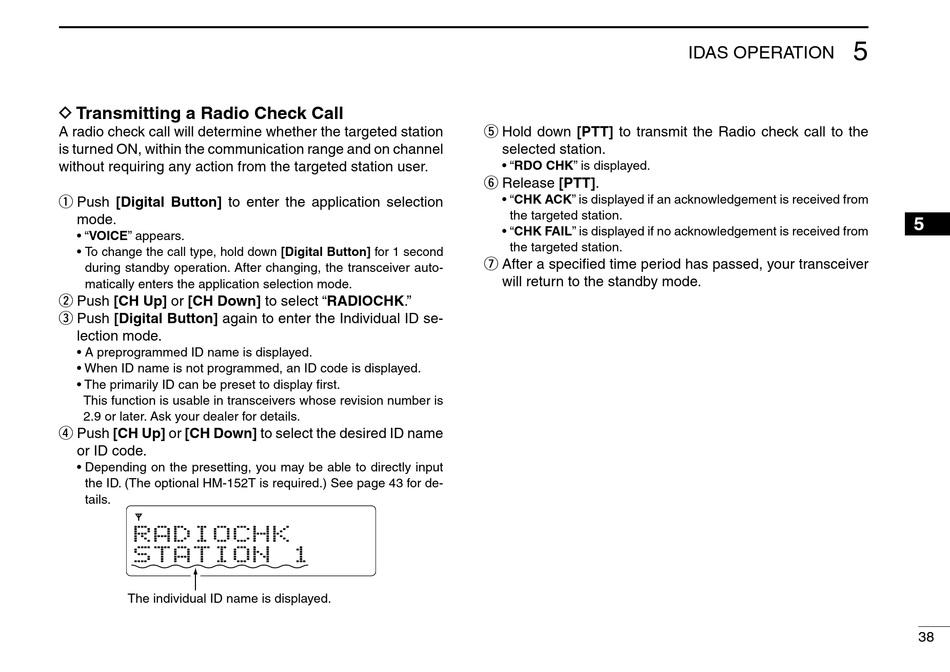

D Transmitting a Radio Check Call
A radio check call will determine whether the targeted station
is turned ON, within the communication range and on channel
without requiring any action from the targeted station user.
q Push [Digital Button] to enter the application selection
mode.
• "VOICE" appears.
• To change the call type, hold down [Digital Button] for 1 second
during standby operation. After changing, the transceiver auto-
matically enters the application selection mode.
w Push [CH Up] or [CH Down] to select "RADIOCHK."
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• A preprogrammed ID name is displayed.
• When ID name is not programmed, an ID code is displayed.
• The primarily ID can be preset to display first.
This function is usable in transceivers whose revision number is
2.9 or later. Ask your dealer for details.
r Push [CH Up] or [CH Down] to select the desired ID name
or ID code.
• Depending on the presetting, you may be able to directly input
the ID. (The optional HM-152T is required.) See page 43 for de-
tails.
R A D I O C H K
S T A T I O N
The individual ID name is displayed.
1
t Hold down [PTT] to transmit the Radio check call to the
selected station.
• "RDO CHK" is displayed.
y Release [PTT].
• "CHK ACK" is displayed if an acknowledgement is received from
the targeted station.
• "CHK FAIL" is displayed if no acknowledgement is received from
the targeted station.
u After a specified time period has passed, your transceiver
will return to the standby mode.
