SERVER PANEL

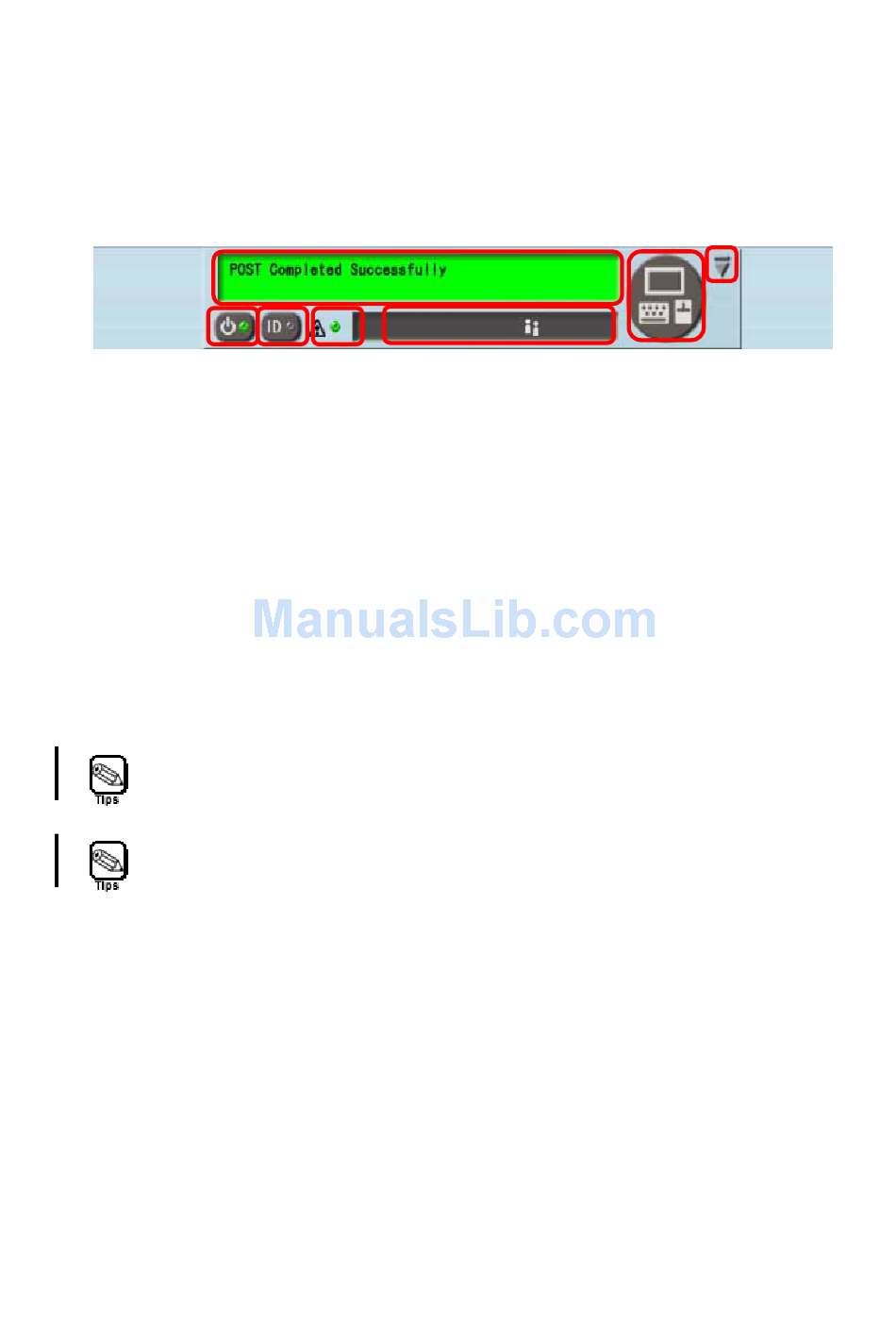

The server panel is displayed under a browser after log in. The server panel has following
functions.
4
1. The virtual LCD that displays the state of the host system.
2. The Button to start RemoteKVM/Media
3. The button that minimizes the server panel.
4. The power switch and a lamp of the host system. The state of the power supply of the
host system is shown.
5. The UID(Unit ID) switch and a lamp of the host system.
6. The status lamp of the host system. The state of the host system is shown.
7. The log in situation and the remote media usage condition of BMC are displayed.
Even if actual UID LED is not mounted into the host system, the UID
LED indicator of the Server Panel functions as virtual UID LED.
Refer to Maintenance Guide of the system for the message displayed
in the Virtual LCD.
