STEP 20. FITTING OF SAFETY PHOTO
ELECTRIC BEAM (OPTIONAL

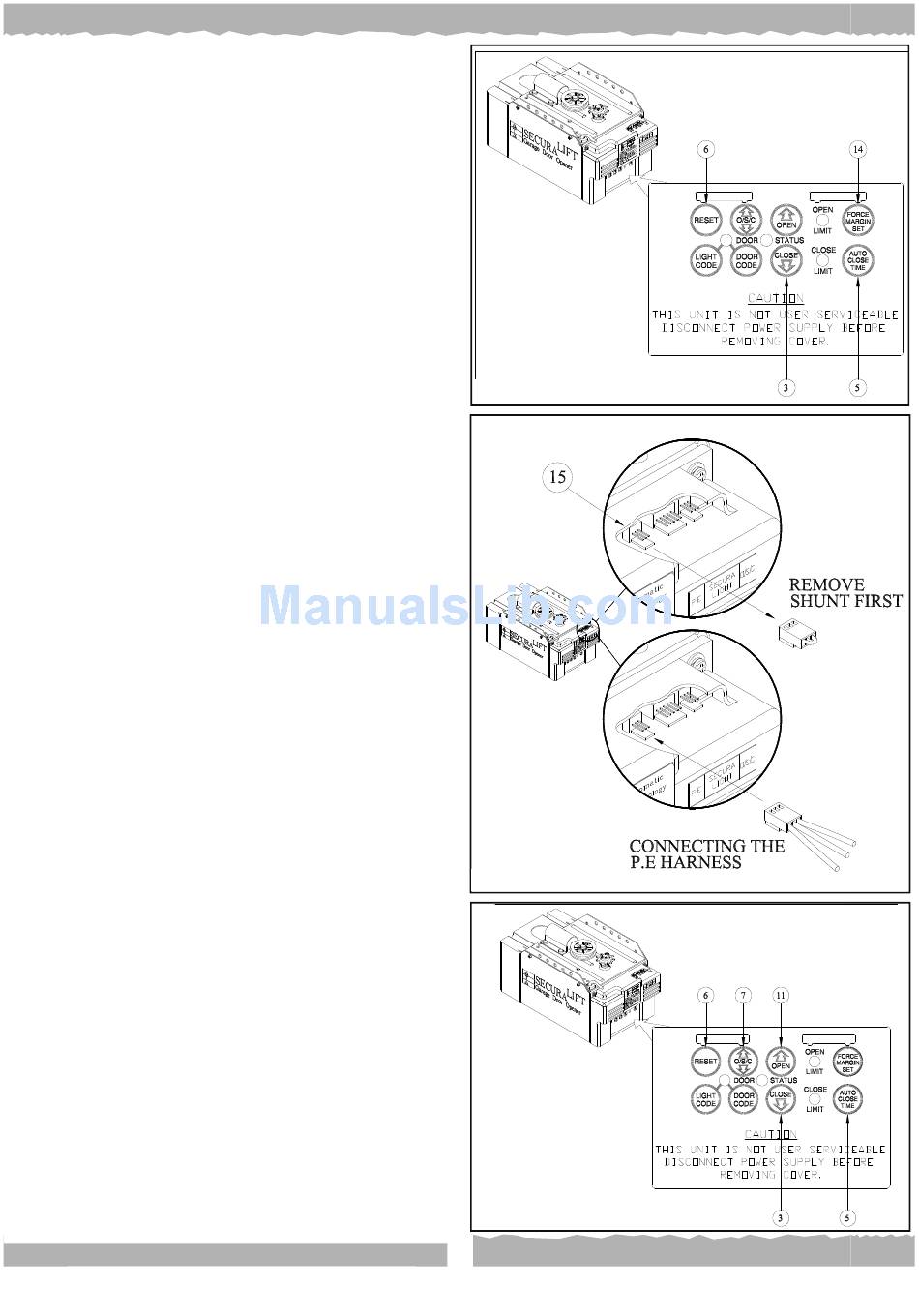

Locate the Photo Electric Beam (P.E.) normally closed
contact type in a strategic location within doorway. Re-
move shunt from P.E connector (FIG. 22a) and connect
the plug from the P.E. wiring harness to P.E. connector
15 (FIG. 22b). Follow the wiring diagram supplied with
the P.E. for wiring of the P.E.
WARNING; When using auto close and P.E. beams,
the doorway must be clear of all obstructions and
persons at all times. The location of the beam and
manner in which it is installed might not give safety
protection at all times. Check to make sure that the
height of the beam and type used give maximum pro-
tection possible.
STEP 21. SETTING OF AUTO CLOSE TIME
IMPORTANT NOTICE: IT IS COMPULSORY TO
INSTALL A PHOTO ELECTRIC BEAM BE-
FORE USING THE AUTO CLOSE MODE.
The Auto Close timer will only start after the Photo
Electric Beams (P.E.) path is broken and the auto close
time has been set. If the P.E. path is not broken the door
will remain open till the path is broken. If the Door
Opener incurs an obstruction (not from the P.E.) while
closing the door will re-open and not auto close.
After the setting of the auto close mode, whenever the
door is in the open position the open limit green LED
will flash to indicate that the auto close mode is in
operation.
SETTING AUTO CLOSE TIME
1. Press in and hold the Auto Close Time button 5
(FIG. 23)
2. While holding in the Auto Close Time button, press
the green Open button 11 (FIG. 23). Each press of
this button will add 5 seconds to the preset autoclose
time of '0' seconds.
3. To decrease the time follow step 1 and press the red
Close button 3. Each press will deduct 5 seconds
from the auto close time.
4. Press the O/S/C button 7 (FIG. 23) or Transmitter
to open the door. While the door is opening break
the path of the P.E. Beam, this will initialise the
auto close mode. When the door reaches the fully
opened position, the door will pause for the set auto
close time and start to auto close.
STEP 22 INSTALLATION OF WALL
MOUNTED TRANSMITTER HOLDER
1. Mount the holder in a location out of reach of chil
dren and convenient to the customer. (FIG. 19)
2. The transmitter can be easily clipped in and removed
from the holder anytime.
3. To set the transmitter codes refer to Step 8.
)
FIG. 21
FIG. 22
FIG. 23
15
FIG. 22a
FIG. 22b
