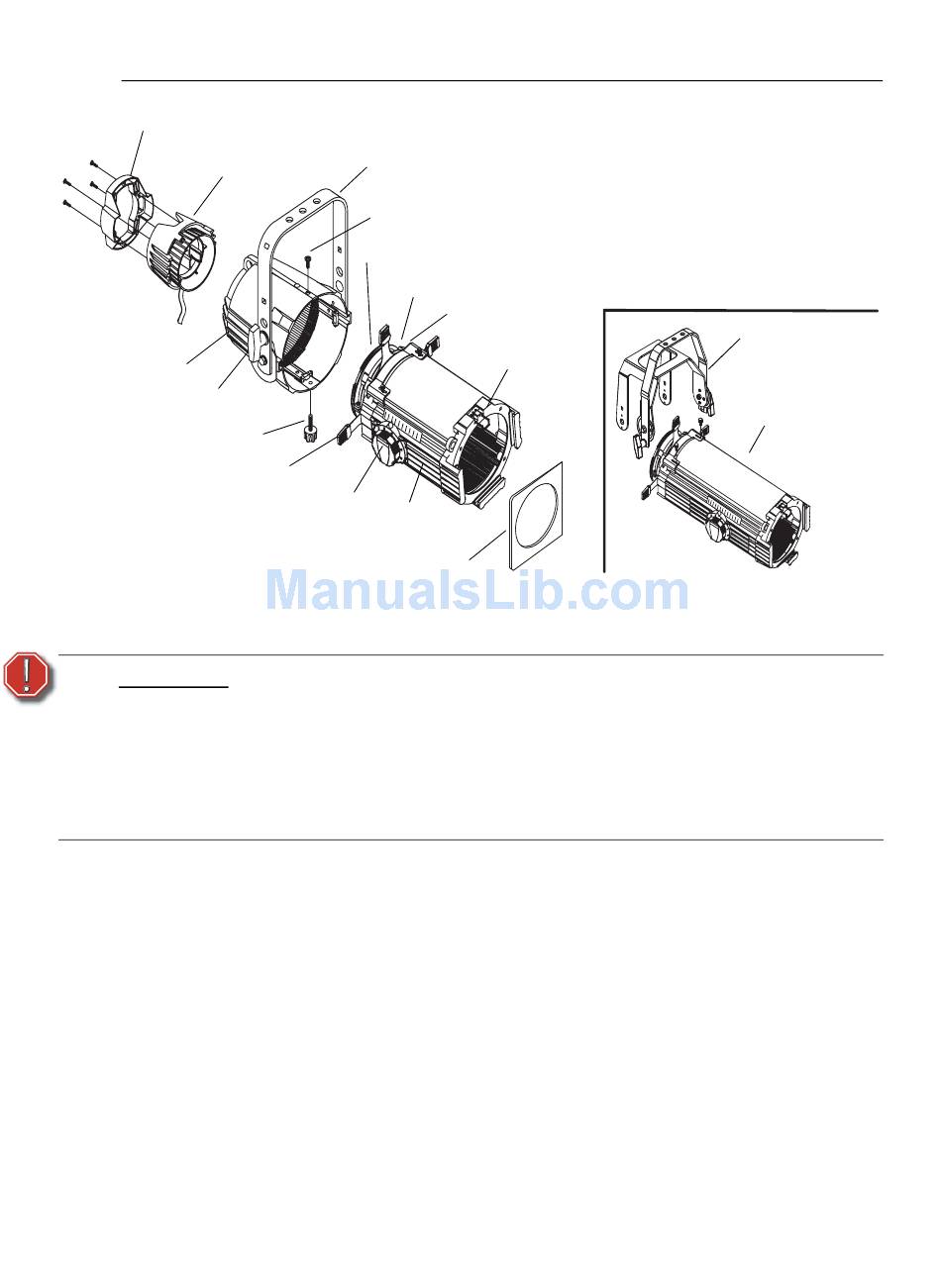

Basic Assembly

Insulated handle
Lamp housing
Reflector housing
Yoke locking knob
Barrel rotation knob
Shutters
W A R N I N G :
Basic Assembly
Yoke
Retainer bolt
Barrel
Pattern holder slot
Focus dial
25°-50° lens tube
Color frame
Please note the following safety warnings before use:
Do not mount the fixture on or near combustible surfaces.
Do not operate the fixture without a lens installed.
Always hang the fixture with the color frame retaining clip in the locked
position.
Remove cardboard insert from lens tube before connecting power to your
fixture.
Drop-in iris slot
Color frame
retaining gel clip
Optional
Balancing yoke
15°-30° lens tube
Figure 1
1
