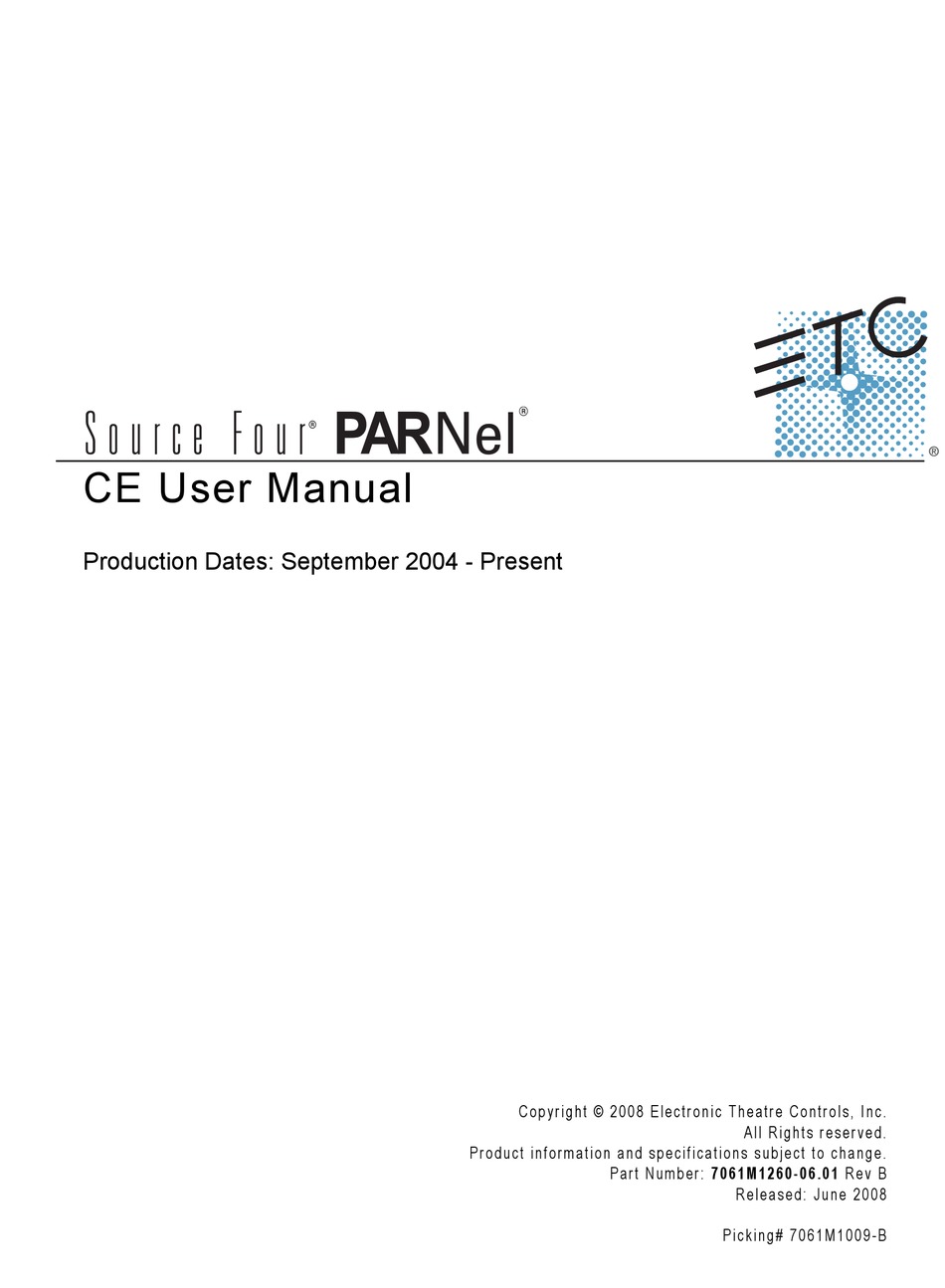

CE User Manual
Production Dates: September 2004 - Present
C o p y r i g h t © 2 0 0 8 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
A l l R i g h t s r e s e r v e d .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7061M1260-06.01 R e v B
R e l e a s e d : J u n e 2 0 0 8
P i c k i n g # 7 0 61 M 1 0 0 9 - B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Source Four PARNel CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETC Source Four PARNel CE

  • Page 1 CE User Manual Production Dates: September 2004 - Present C o p y r i g h t © 2 0 0 8 E le c tr o n i c T h e a t r e C o n t r o l s , I n c . A l l R i g h t s r e s e r v e d .
  • Page 2: Table Of Contents

    Declaration of conformity ........1 Source Four PARNel CE guidelines......2 Basic assembly .
  • Page 3: Declaration Of Conformity

    D e c l a r a t i o n o f c o n f o r m i t y We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product: Product name: Source Four PARNel CE Product type/model: Source Four PARNel-EA...
  • Page 4: Source Four Parnel Ce Guidelines

    Do not cover ETC trademark or CE mark. • The Source Four PARNel CE contains a CE safety screen that covers the lens to prevent injury from broken glass die to lamp failure. Do not remove the safety screen.
  • Page 5: Basic Assembly

    English B a s i c a s s e m b l y Yoke Lamp housing Yoke locking knob Gel retaining clip Color frame holder Lens catcher Clear lens Stippled lens Lens rotating ring Tabs Focus knob Color frame Safety screen Figure 1 L u m i n a i r e i n f o r m a t i o n...
  • Page 6 750w lamp. For best results, always use high-quality colour media rated for high-temperature use. ETC’s optional Gel Extender, part # PSF1029, will provide maximum colour media life. The use of any gel extender accessory may limit the coverage of any wide- angle lens or beam setting.
  • Page 7: Colour Frame Holder

    W A R N I N G : Let the lamp cool before replacing. Step 1: Disconnect power to the Source Four PARNel CE before installing the lamp. Step 2: Loosen the knurled bolt on the back of the lamp housing, disconnect the Earth continuity...
  • Page 8: Focus Knob Positioning

    English Step 3: Holding by the base, remove the HPL lamp from its box. C A U T I O N : Use caution when installing or replacing any lamp. When installing/replacing lamp, be sure to point the lamp away from your face and away from others before inserting it firmly into the assembly.
  • Page 9: Lens Identification

    English L e n s i d e n t i f i c a t i o n Lenses for the Source Four PARNel come in two versions. The wave/clear lens is in a fixed position in the rear of the luminaire. The wave/stippled lens is in the rotating ring at the front of the luminaire. The wave surfaces face each other.
  • Page 10: Cleaning Glass Lens

    English Step 5: Gently push the top of the lens inward until it snaps behind the spring clip. Spring clip Retaining clip Retaining clip Lens Spring clip Focus knob Lens catcher Figure 7 Figure 8 Figure 6 P o s i t i o n i n g t h e w a v e / s t i p p l e d f r o n t l e n s . Top center notch Bottom two center notches Figure 9...
  • Page 11: Portable Appliance Test (Pat) Guidelines

    English P o r t a b l e a p p l i a n c e t e s t ( P A T ) g u i d e l i n e s The Portable Appliance Test is a set of tests that must be administered to electrical equipment in the UK and some locations in Europe to ensure safety.The tests are typically carried out using a small PAT device.
  • Page 12 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2008 ETC. All Rights Reserved. Product information and specifications subject to change. 7061M1260-06.01 Rev B Released 06/2008...
