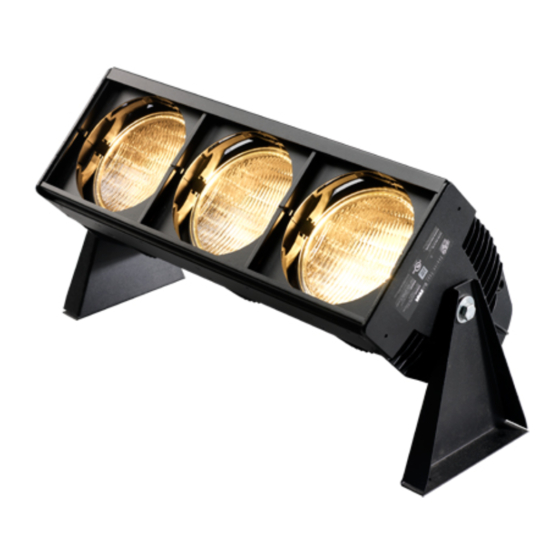

Source Four MultiPAR™ CE
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Source Four MultiPAR and is the answer not in the manual?

Questions and answers

Related Manuals for ETC Source Four MultiPAR

Summary of Contents for ETC Source Four MultiPAR

  • Page 1 Source Four MultiPAR™ CE User Manual...
  • Page 3 We, Electronic Theatre Controls, Europe Limited Unit 5, Victoria Industrial Estate, London W3 6UU United Kingdom declare under sole responsibility that the product: Product name: Source Four MultiPAR Product type/model: MultiPAR 1x12 & MultiPAR 1x3 Lot: Batch / Serial number:...

  • Page 4: Power Requirements

    Do not cover ETC trademark or CE mark. • The Source Four MultiPAR CE contains a CE safety screen that covers the lens in the event of accidental dis- charge. Do not remove the safety screen.
  • Page 5 HPL 750/230X 750 3,050ºK 1500 hours HPL 750/240 3,200ºK 300 hours HPL 750/240X 750 3,050ºK 1500 hours WARNING: Use of other lamps may pose a safety risk, damage the fixture, and will void your warranty. Source Four MultiPAR CE 5...

  • Page 6: Lens Identification

    English Lens identification Lenses for the Source Four MultiPAR CE come in four versions. The type or beam spread can be identified by the lens texture. VNSP Narrow spot Very narrow spot Stipple glass (slight diffuse texture) Clear glass 19° Round beam shape 15°...

  • Page 7: Installing A Lens

    Colour frames and accessories The Source Four MultiPAR CE does not use colour frame clips. However, both sides of the fixtures have a bent sheet metal retainer to hold the gel frames in place. One side of the fixture has a piece of spring steel that serves as a gel frame spring.

  • Page 8: Cleaning The Reflector

    Adding hanging brackets and clamps to Source Four MultiPAR CE N o t e : The hanging irons attach to the Source Four MultiPAR CE. The clamp is bolted to the other end of the hanging iron and then secured to the hanging pipe.

  • Page 9: Spare Parts List

    English Spare parts list Source Four MultiPAR CE Final Assembly Reference Quantity Part Number Description Number Required 7061A3051 Hanger Bracket, MultiPar HW587 1/2” washer HW5138 1/2 -13 x 1” HH bolt Source 4 Par safety not pictured 7061A1030 varies screen...

  • Page 10: Lamp Burner Assembly

    1, 5 mm Wire, Silver con- tact TP22 CLCM assembly, W330-02 ceramic TP22 CLCM assembly, W330-03 mica Lamp Burner Assembly 7061A2027 90 cm Lamp Burner Assembly 7061A2028 150 cm Lamp Burner Assembly 7061A2029 210 cm 7061A3061 Thumbscrew various HPL lamp 10 Source Four MultiPAR CE...
  • Page 11 In the second terminal block from the left, insert the wires labeled 2,6,10. In the third terminal block from the left, insert the wires labeled 3,7,11. In the fourth terminal block from the left, insert the wires labeled 4,8,12. See for detail. Figure 7 Source Four MultiPAR CE 11...
  • Page 12 Americas 3030 Laura Lane, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel: +608 831 4116 +800 688 4116 Fax: +608 836 1736 +800 555 8912 mail@etcconnect.com Email: (US) Europe Unit 5, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel: +44 (0)20 8896 1000 Fax: +44 (0)20 8896 2000 (UK) mail@etceurope.com Asia Room 605-606, Tower III Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel: +852 2799 1220 Fax: +852 2799 9325...
