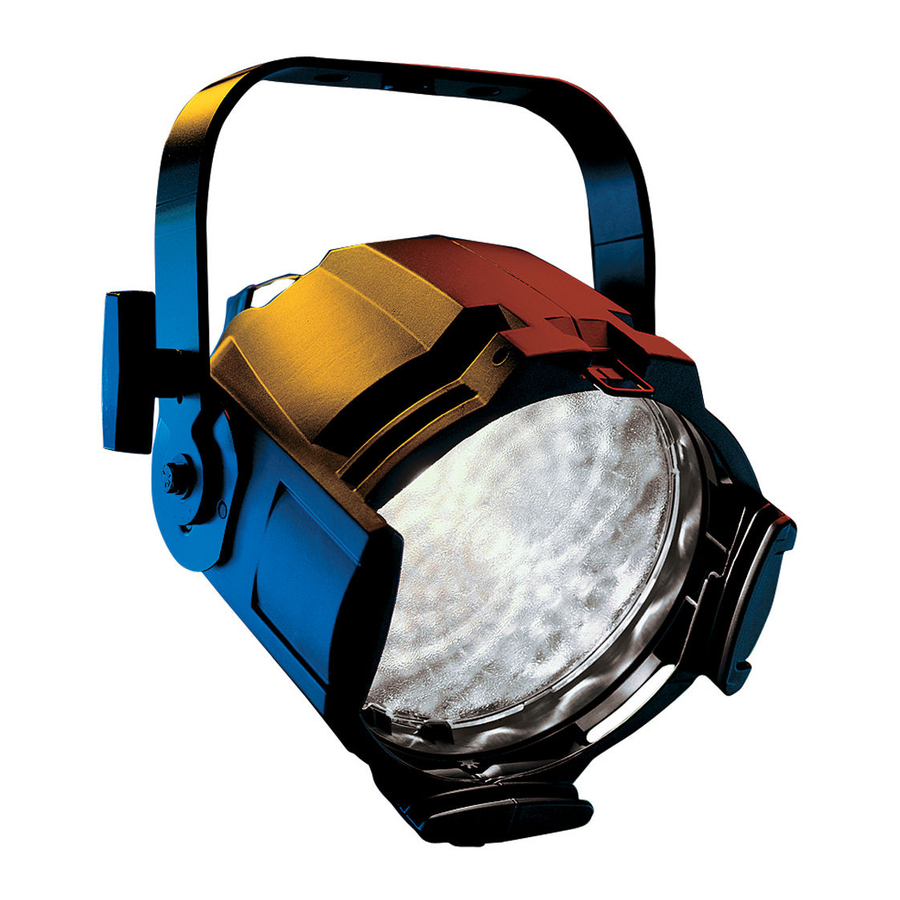

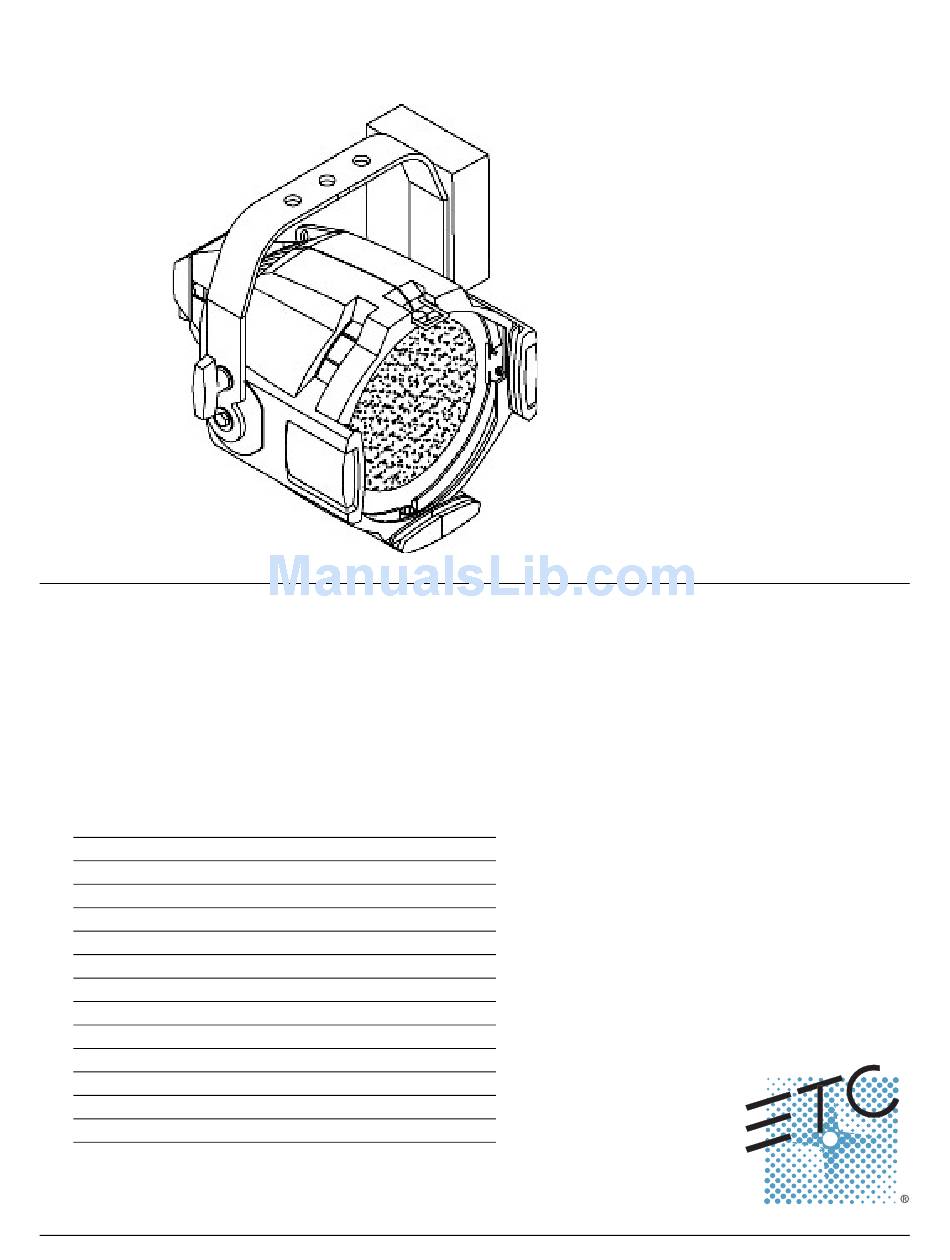

Source Four HID PARNel™ User Guide
Source Four HID PARNel guidelines
Please note the following precautions prior to use:
•
Do not mount the Source Four HID PARNel on or near combustible surfaces.
•
Do not recess mount the Source Four HID PARNel.
•
The Source Four HID PARNel can be canopy mounted from the ceiling.
•
Always hang the Source Four HID PARNel with the color frame retaining clip in the
locked position.
•
The Source Four HID PARNel is NOT dimmable. Dimming or regulated voltage will
damage the ballast and void the warranty.
Accessories
Color frame 7.5 in. sq.(6.7 in. inside diameter)
Safety cable (31 in.)
C-clamp
Top hat, 3"
Top hat, 6"
Half hat
Cross-baffle top hat
Egg-crate louver
Weighted base
Gel Extender 3"
Gel Extender 6"
Barn door
ETC Part #
7061A3047
7061A1022
7060A2009
PSF1022
PSF1023
PSF1027
PSF1031
PSF1028
PSF1032
PSF1030
PSF1029
PSF1019
Source Four HID PARnel • 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Source Four HID PARNel and is the answer not in the manual?

Questions and answers

Related Manuals for ETC Source Four HID PARNel

Summary of Contents for ETC Source Four HID PARNel

  • Page 1 • The Source Four HID PARNel can be canopy mounted from the ceiling. • Always hang the Source Four HID PARNel with the color frame retaining clip in the locked position. • The Source Four HID PARNel is NOT dimmable. Dimming or regulated voltage will damage the ballast and void the warranty.

  • Page 2: Installing The Lamp

    HID Lamp type and general information: Do not use lamps other than the following types in the Source Four HID PARNel. Use of lamps other than specified below will void UL/cUL safety compliance and your war- ranty. Lamp Type Manufacturing Codes Watts...

  • Page 3: Focus Knob Positioning

    The WC rear lens is in a “fixed” position inside the fixture. The WS lens is in the rotating ring at the front of the fixture. The wave surfaces face each other. Wave / Clear lens Wave / Stippled lens Source Four HID PARnel • 3...
  • Page 4 • The bottom of the lens has a cluster of four notches. Place the two center notches Bottom two behind the tabs at the bottom of the lens rotating ring. ( center notches Figure 5 Figure 6 4 • Source Four HID PARnel...

  • Page 5: Cleaning The Reflector

    Housing assembly instructions If you take apart the Source Four HID PARNel for any reason, please use the following steps for reassembly. Improper reassembly will result in void of warranty and loss of per- formance.(See parts list on page 7) Tools required: Phillips screwdriver.

  • Page 6: Spare Parts List

    Spare parts list 13,14 10 9 12 12 9 10 Source Four HID PARNel Final Assembly Reference Part Number Description Quantity Number Required S4 HID PAR base 7061A2022 assembly (black) S4 HID PAR base 7061A2022-1 assembly (white) 120V HID PAR Lamp...
  • Page 7 Spare parts list Source Four HID PARNel Housing Assembly Reference Part Number Description Quantity Number Required 7061A3005 Gel retainer clip 7061A3013 Spring clip rotator 7061A3014 Reflector, painted black 7061A3014-1 Reflector, painted white 7061A3025 Barrel, painted black 7061A3025-1 Barrel, painted white...
  • Page 8 Americas 3030 Laura Lane, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel: +608 831 4116 +800 688 4116 Fax: +608 836 1736 +800 555 8912 Europe Unit 4, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel: +44 (0)20 8896 1000 Fax: +44 (0)20 8896 2000 Asia Room 605-606, Tower III Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel: +852 2799 1220 Fax: +852 2799 9325 Web: www.etcconnect.com...
