ETC Source Four Revolution Scroller Cartridge Quick Manual

E T C Q u i c k G u i d e
®
®
Source Four
O v e r v i e w
The Source Four Revolution fixture is provided with a removable Scroller Cartridge. You
can swap whole cartridges, or you can replace only the gel string within the cartridge.

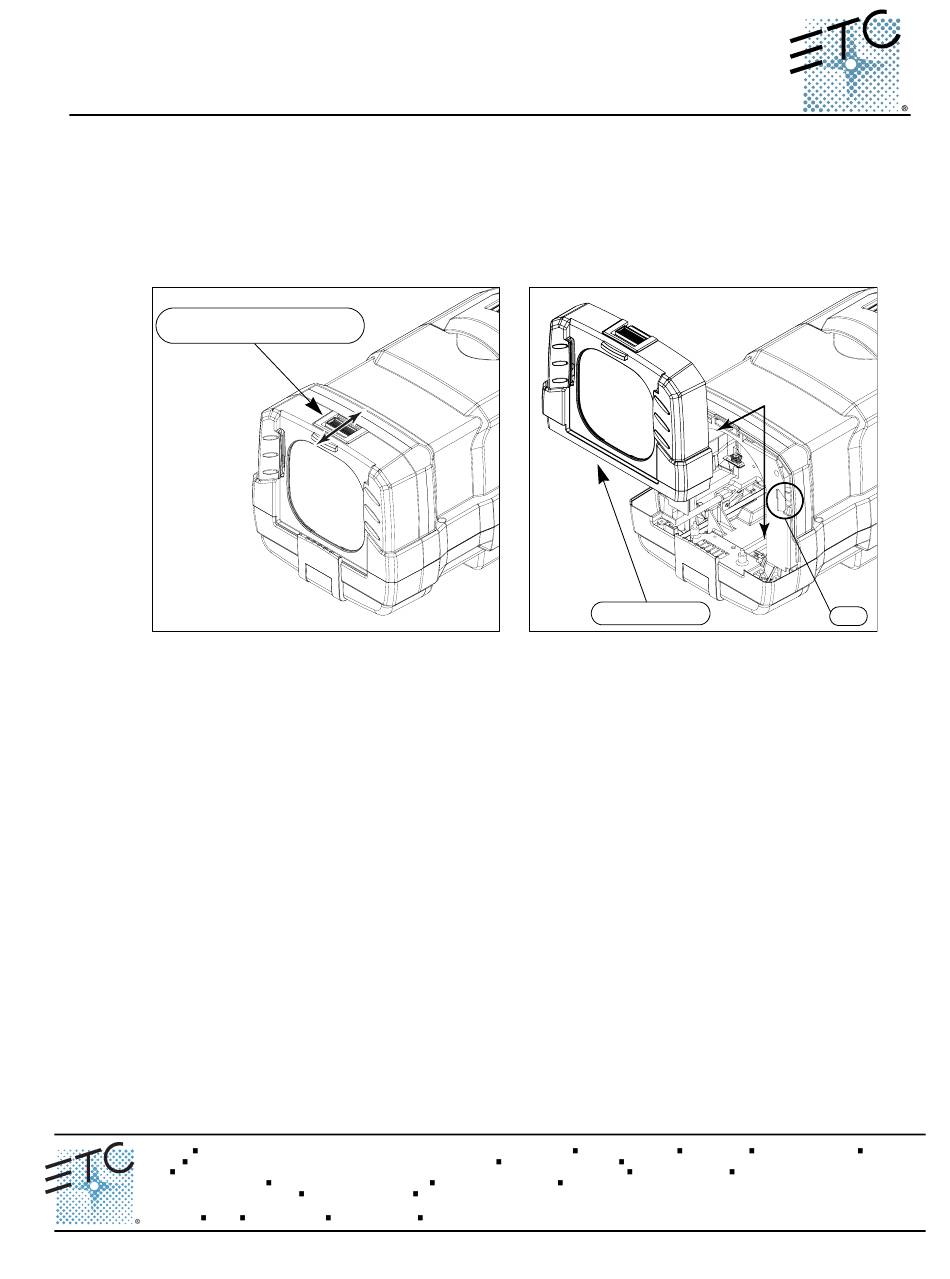

Latch
Pull forward to remove Scroller.
Remove and replace the Scroller Cartridge:
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Americas 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA
Europe Unit 5, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK
Asia Room 605-606, Tower III Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong
Web: www.etcconnect.com
Service: service@etcconnect.com
7160M1350 Rev B Revised 12/2004 Released 02/2004
S cr ol le r C ar t r id ge Q u ic k G ui de
®
Revolution Scroller Cartridge
Pull the latch on top of the Scroller Cartridge forward and pull the scroller up out
of the head. The gel string is held in tension and may roll back after being
released from the head.
To insert a Scroller Cartridge, align the metal tabs on the fixture with the slots on
the back of the Scroller Cartridge and slide the cartridge back onto the tabs.
Pull the latch on the top of the cartridge forward and press the cartridge down
into place.
Release the latch. It is spring-loaded and will slide back into the locked position
upon release.
Recalibrate the fixture after replacing the scroller cartridge.
