2.6 GV-NET Card

The GV-NET Card is a RS-485 to RS-232 interface converter. This Card connects to the

RS-232 port on your computer, and allows RS-485 devices, such as PTZ domes, to be

connected through the Card.

Packing List

1. GV-NET Card x 1

2. RJ-11 to DB9 Cable x 1

Connections

Use the RJ-11 to DB9 Cable to connect the Card to the PC's COM port. Use the 4-Pin Mini

Power Cable to connect the Card to the PC's power supply.

Note: The GV-NET Card only provides RS-485 / RS-232 data conversion; the

connection to the GV-Video Capture Card is not required.

Connects to

PC's Com Port

RS-485 +

RS-485 -

RJ-11 to DB9 Cable

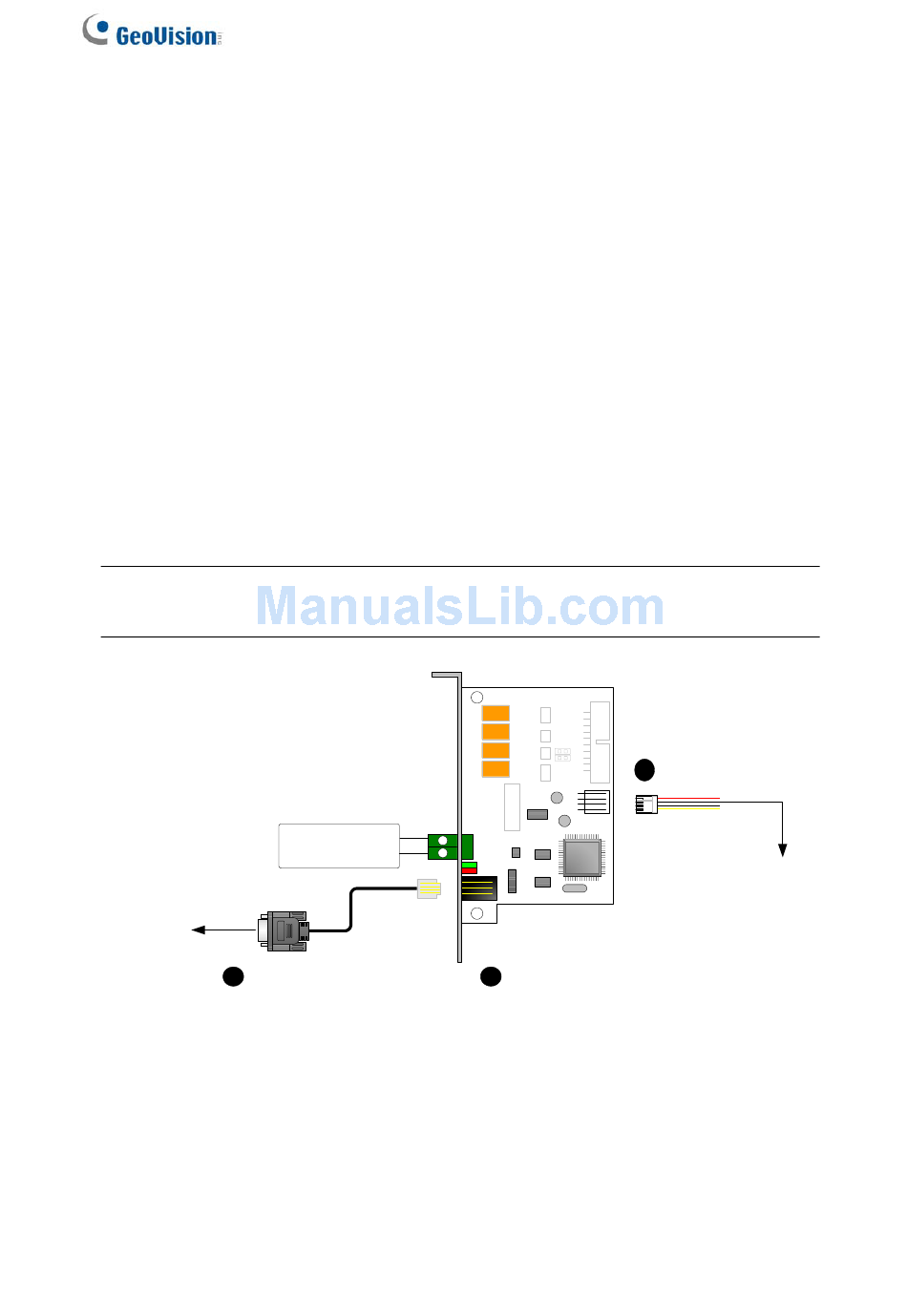

Figure 2-11 GV-Net Card Connections

3. 4-Pin to 4-Pin Mini Power Cable x 1

4. Installation Guide x 1

GV-NET Card

4-Pin Mini Power Cable

Connects to PC's

Power Supply
