GeoVision Surveillance system Installation Manual page 14

Connections (PCI-E)
•
Plug the Audio Extension Card in the assigned connectors on the GV-Combo Card.
•
Connect D-Type video and audio cables to the GV-Combo Card and Audio Extension
Card respectively.
•
Plug the power cable connector in the GV-Combo Card's power connector.
•
Connect the TV monitor to the GV-Combo Card if needed.
Video 1~8
Video 9~16
Audio 1~8
Audio 9~16
Note:
1. The GV-Combo Card (PCI-E) can only be inserted into the PCI Express x1 slot.
2. This card only works when it connects to PC's power supply.
3
1-8 D-Type
Video Cable
4
9-16 D-Type
Video Cable
5
1-8 D-Type
Audio Cable
6 9-16 D-Type
Audio Cable

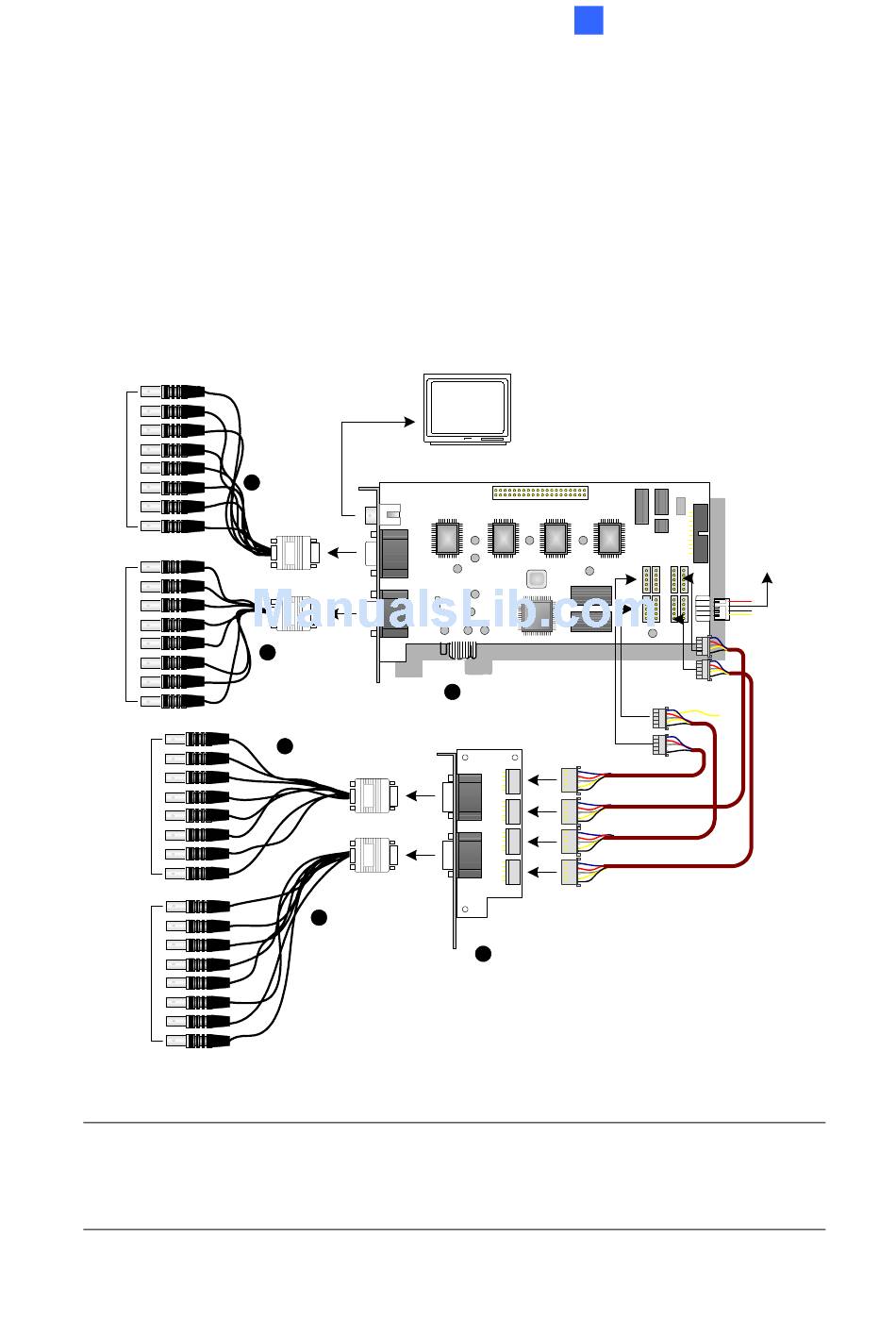

Figure 1-7 GV-Combo Card (PCI-E) connections
1
TV Monitor
1
GV-Combo Card
1
2
3
4
2
Extension Audio Card
Video Capture Cards
Connects to
PC's Power
Supply
2
1
3 4
