Connections

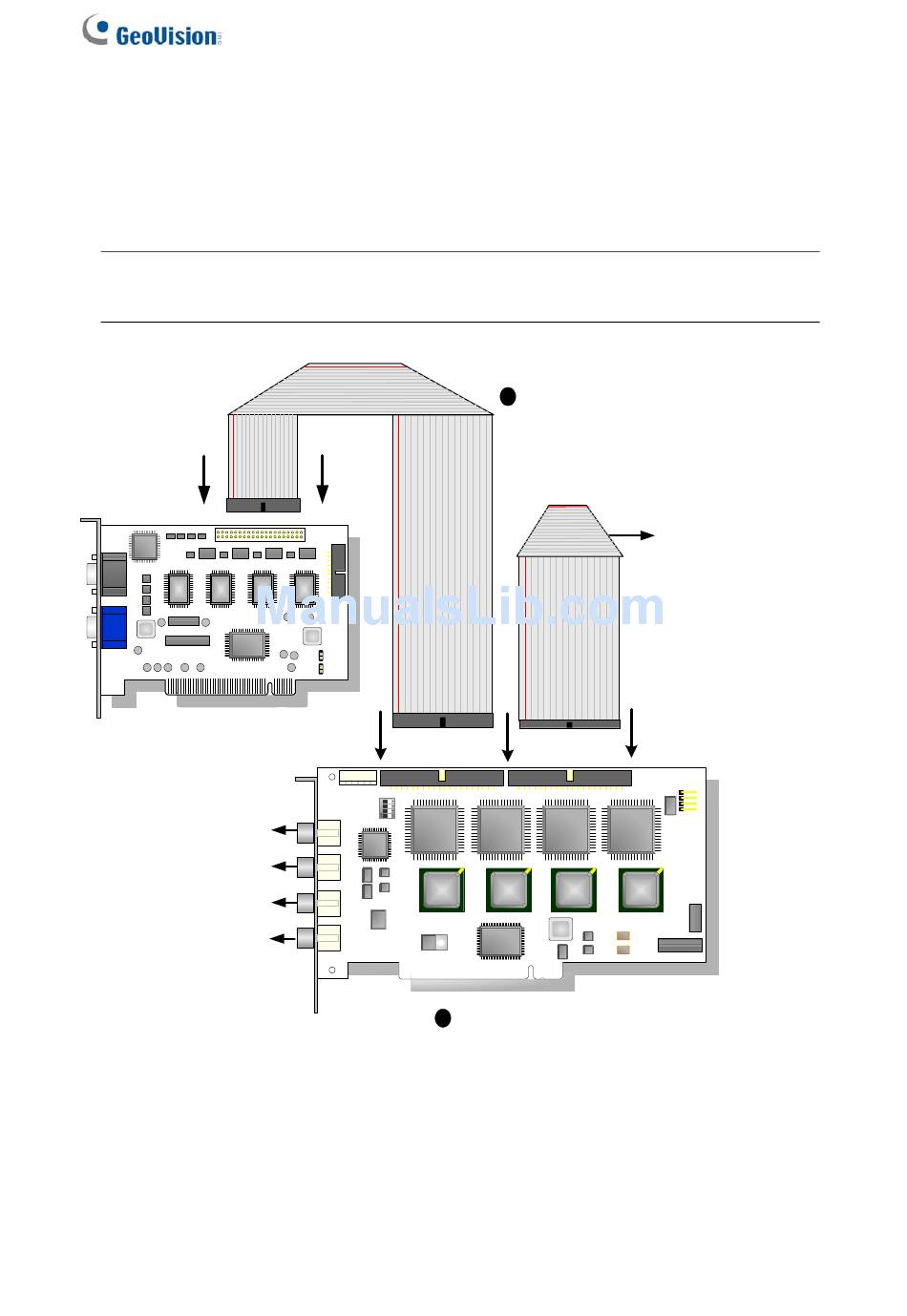

Connect the GV-Hybrid DVR Card to the GV-Video Capture Card as illustrated
below.
Note: Make sure the Ribbon Cables are connected to the correct input and output on
the GV-Hybrid DVR Card.
GV Video Capture Card
Audio Inputs
38
Input
1
Figure 2-3 GV-Hybrid DVR Card connections
40-Pin Ribbon Cable
2
2
Output
GV-Hybrid DVR Card
Connects to the input of
nd
the 2
GV-Hybrid DVR
Card or GV-DSP Card
