GeoVision Surveillance system Installation Manual page 12

Packing List (DVI Type)
1. GV-1120/1240/1480 Combo Card x 1
2. 1-16 DVI Video plus TV Out Cable x 1
3. 1-16 DVI Audio Cable x 1
4. Hardware Watchdog Jumper Wire x 1
Connections (D-Type)
•
Plug the Audio Extension Card in the assigned connectors on the GV-Combo Card.
•
Connect D-Type video and audio cables to the GV-Combo Card and Audio Extension
Card respectively.
•
Connect the TV monitor to the GV-Combo Card if needed.
Video 1~8
Video 9~16
Audio 1~8
Audio 9~16
3
1-8 D-Type
Video Cable
4
9-16 D-Type
Video Cable
5
1-8 D-Type
Audio Cable
6 9-16 D-Type
Audio Cable

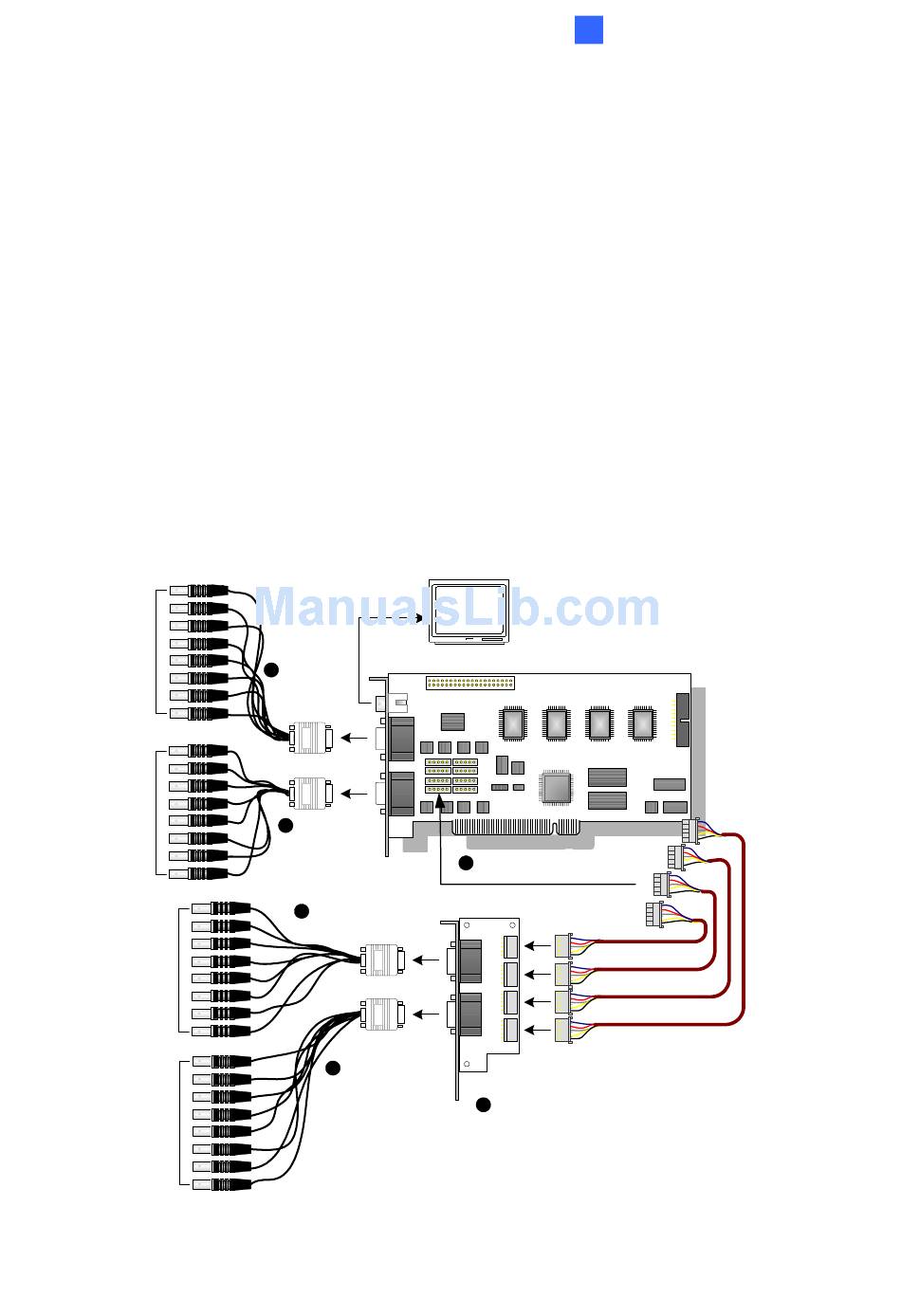

Figure 1-6 GV-Combo Card (D-Type) connections
1
5. Software CD x 1
6. Feature Guide x 1
7.
Installation Guide x1
TV Monitor
1
3
2 4
1
GV-Combo Card
1
2
3
4
2
Extension Audio Card
Video Capture Cards
9
